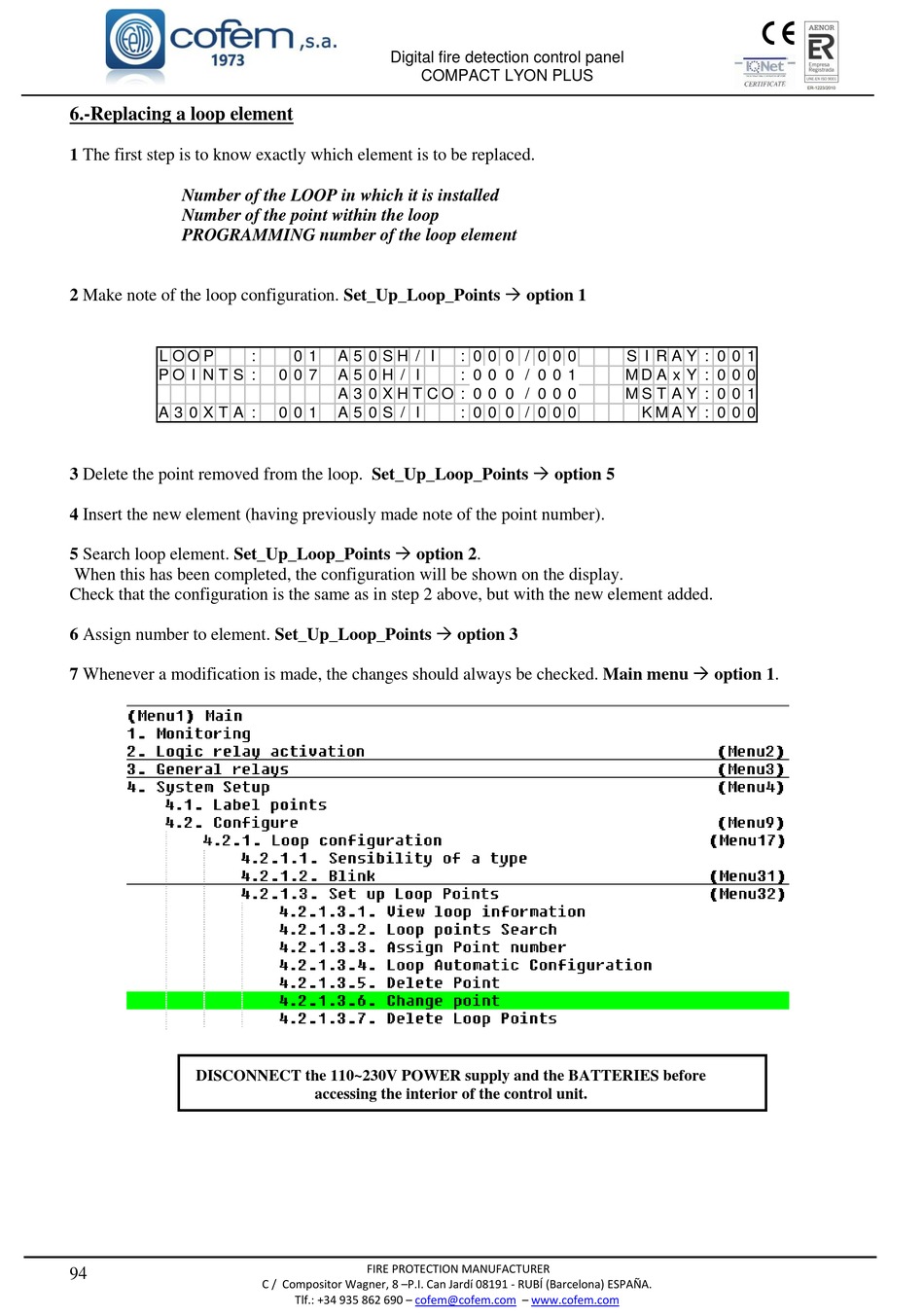

Cofem COMPACT LYON PLUS Manual page 94

6.-Replacing a loop element
1 The first step is to know exactly which element is to be replaced.
Number of the LOOP in which it is installed
Number of the point within the loop
PROGRAMMING number of the loop element
2 Make note of the loop configuration. Set_Up_Loop_Points  option 1
L O O P
P O I N T S :
A 3 0 X T A :
3 Delete the point removed from the loop. Set_Up_Loop_Points  option 5
4 Insert the new element (having previously made note of the point number).
5 Search loop element. Set_Up_Loop_Points  option 2.
When this has been completed, the configuration will be shown on the display.
Check that the configuration is the same as in step 2 above, but with the new element added.
6 Assign number to element. Set_Up_Loop_Points  option 3
7 Whenever a modification is made, the changes should always be checked. Main menu  option 1.
DISCONNECT the 110~230V POWER supply and the BATTERIES before
94
Digital fire detection control panel
COMPACT LYON PLUS
: 0 1 A 5 0 S H / I
0 0 7 A 5 0 H / I
A 3 0 X H T C O : 0 0 0 / 0 0 0
0 0 1 A 5 0 S / I
accessing the interior of the control unit.
FIRE PROTECTION MANUFACTURER
C / Compositor Wagner, 8 –P.I. Can Jardí 08191 - RUBÍ (Barcelona) ESPAÑA.
Tlf.: +34 935 862 690 – cofem@cofem.com
: 0 0 0 / 0 0 0 S I R A Y : 0 0 1
: 0 0 0 / 0 0 1 M D A x Y : 0 0 0
M S T A Y : 0 0 1
: 0 0 0 / 0 0 0
