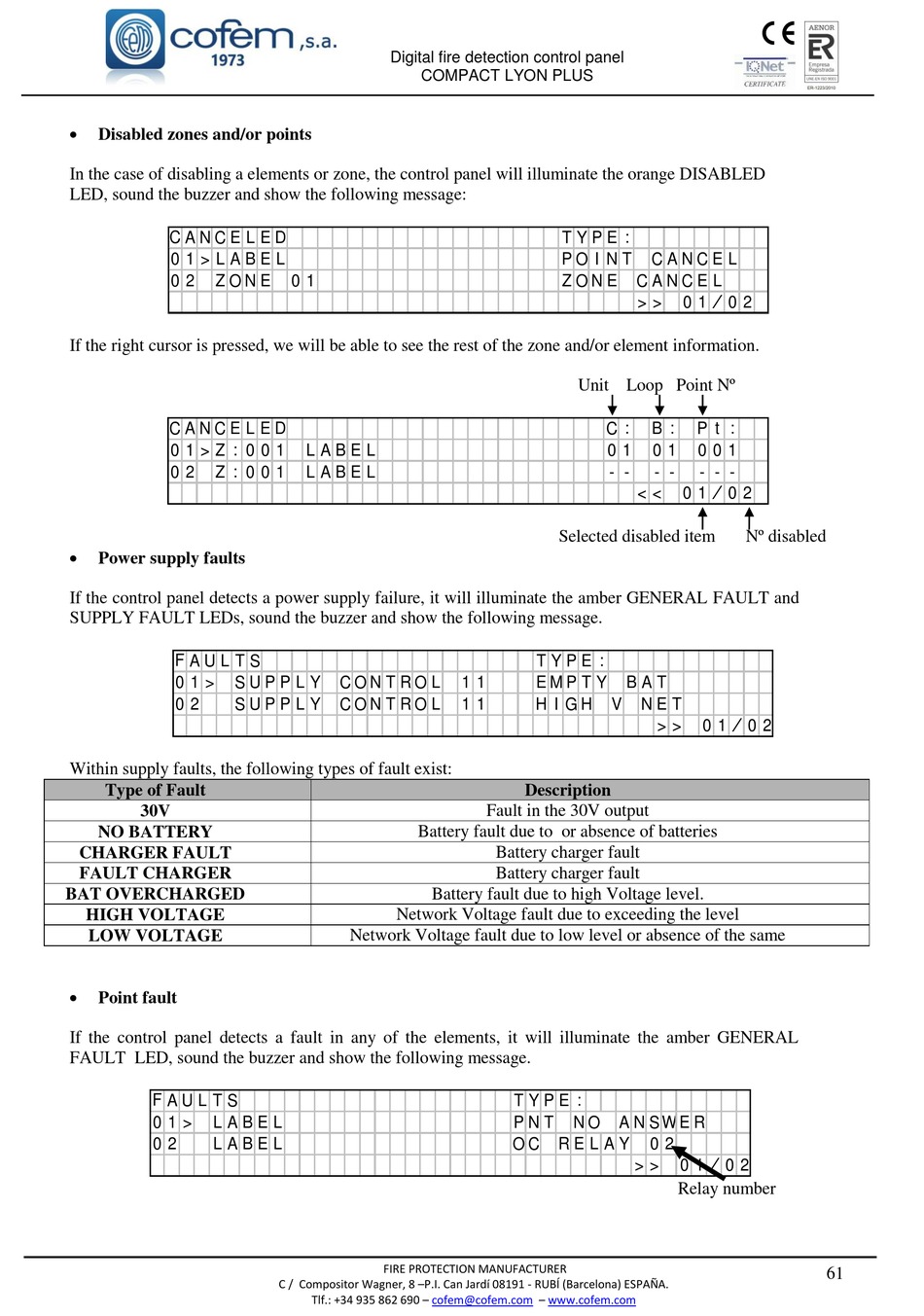

Cofem COMPACT LYON PLUS Manual page 61


Disabled zones and/or points
In the case of disabling a elements or zone, the control panel will illuminate the orange DISABLED
LED, sound the buzzer and show the following message:
C A N C E L E D
0 1 > L A B E L
0 2 Z O N E
If the right cursor is pressed, we will be able to see the rest of the zone and/or element information.
C A N C E L E D
0 1 > Z : 0 0 1
0 2 Z : 0 0 1

Power supply faults
If the control panel detects a power supply failure, it will illuminate the amber GENERAL FAULT and
SUPPLY FAULT LEDs, sound the buzzer and show the following message.
F A U L T S
0 1 > S U P P L Y
0 2 S U P P L Y
Within supply faults, the following types of fault exist:
Type of Fault
30V
NO BATTERY
CHARGER FAULT
FAULT CHARGER
BAT OVERCHARGED
HIGH VOLTAGE
LOW VOLTAGE

Point fault
If the control panel detects a fault in any of the elements, it will illuminate the amber GENERAL
FAULT LED, sound the buzzer and show the following message.
F A U L T S
0 1 > L A B E L
0 2 L A B E L
