Cofem LYON User Manual

Use of the Control Panel LYON / C-LYON / ZAFIR system
1. WHAT IS A CONTROL PANEL LYON / C_LYON /ZAFIR SYSTEM?
The LYON / C_LYON / ZAFIR system is a FIRE detection system that combined with detectors and
corresponding modules, is capable of quickly detecting the early signs of a fire, issuing a warning of
the event and acting on various elements, such as emergency exit doors, acoustic fire alarms or
crossed outputs.

2. FONT PANEL OF THE SYSTEM

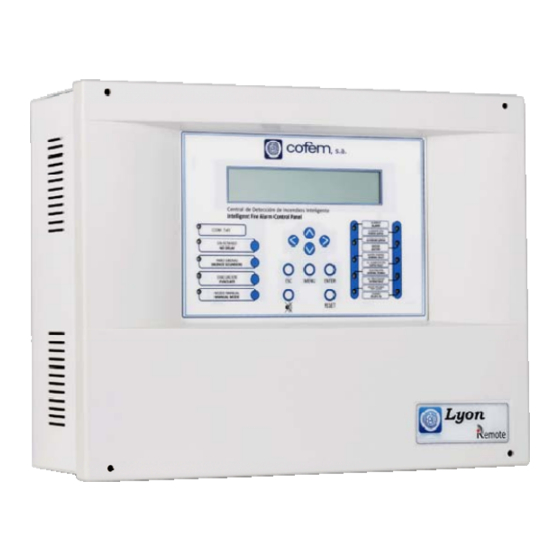

This is what the control panel of the centralised LYON system looks like:
The keys enable action to be taken via the control unit, while the luminous indicators (LEDs) and
the screen provide information about the system status.

3. WHAT HAPPENS IF THE BUZZER SOUNDS?

The buzzer or acoustic warning emits an intermittent alarm if any of the following situations arise:
1. A fire alarm has been generated.
2. A relay has been actuated.
3. A fault has occurred in the detection system.

4. CHECKING THE INCIDENT

Having stopped the buzzer, the user must check the incident. For this purpose, the control unit
incorporates a screen to display information and various luminous indicators that provide details
regarding the incident that has occurred. The options are: an ALARM, an ACTUATION or a FAULT.
In the event of several types of incident occurring simultaneously, the display can be toggled by
pressing the ENTER key. The information displayed on the screen can be expanded using:
Basic User Manual – LYON / C-LYON / ZAFIR
370
COFEM,
Ctra. Molins de Rei a Rubí, Km. 8.4
08191 Rubí
08
0370/CPD/0623
EN 54-4
Equipo de suministro de alimentación para
sistemas de detección y alarma de incendios en
edificios
Power supply equipment for fire detection and
fire alarm systems for buildings
CDFA-01
Otros datos técnicos:
Other technical data:
Véase documento "Manual Lyon"
guardado por el fabricante
See " Lyon Manual"
held by the manufacturer
To stop the buzzer, press this key:
IMPORTANT: THE INCIDENT must always be
CHECKED when this key is pressed.
.
ENGLISH
July 2015
