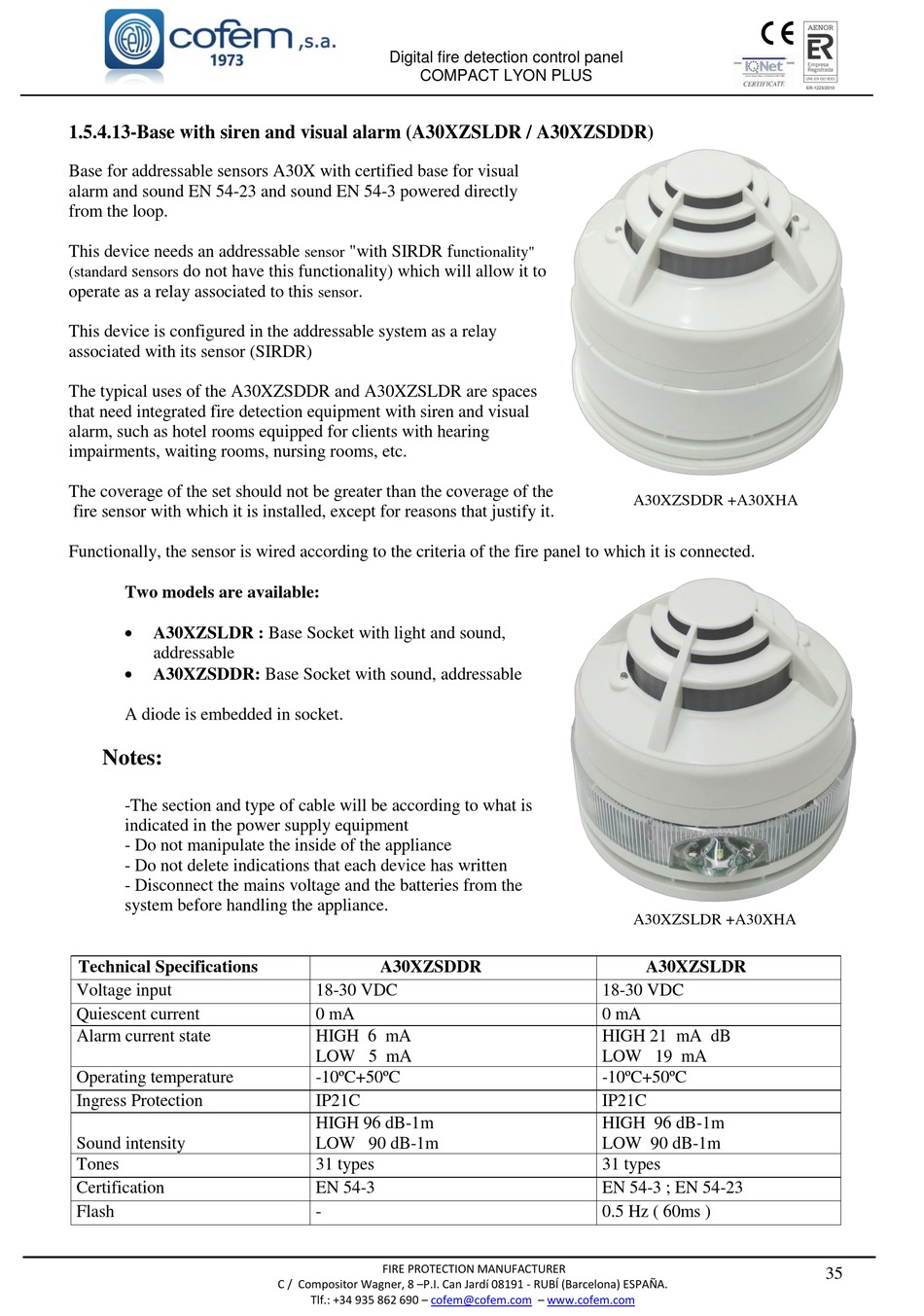

1.5.4.13-Base with siren and visual alarm (A30XZSLDR / A30XZSDDR)

Base for addressable sensors A30X with certified base for visual
alarm and sound EN 54-23 and sound EN 54-3 powered directly
from the loop.
This device needs an addressable
s do not have this functionality) which will allow it to
(standard ensors
operate as a relay associated to this
This device is configured in the addressable system as a relay
associated with its sensor (SIRDR)
The typical uses of the A30XZSDDR and A30XZSLDR are spaces
that need integrated fire detection equipment with siren and visual
alarm, such as hotel rooms equipped for clients with hearing
impairments, waiting rooms, nursing rooms, etc.
The coverage of the set should not be greater than the coverage of the
fire sensor with which it is installed, except for reasons that justify it.
Functionally, the sensor is wired according to the criteria of the fire panel to which it is connected.
Two models are available:

A30XZSLDR : Base Socket with light and sound,
addressable

A30XZSDDR: Base Socket with sound, addressable
A diode is embedded in socket.
Notes:
-The section and type of cable will be according to what is
indicated in the power supply equipment
- Do not manipulate the inside of the appliance
- Do not delete indications that each device has written
- Disconnect the mains voltage and the batteries from the
system before handling the appliance.
Technical Specifications
Voltage input
Quiescent current
Alarm current state
Operating temperature
Ingress Protection
Sound intensity
Tones
Certification
Flash
Digital fire detection control panel
COMPACT LYON PLUS
"with SIRDR f
sensor
.
sensor
A30XZSDDR
18-30 VDC
0 mA
HIGH 6 mA
LOW 5 mA
-10ºC+50ºC
IP21C
HIGH 96 dB-1m
LOW 90 dB-1m
31 types
EN 54-3
-
