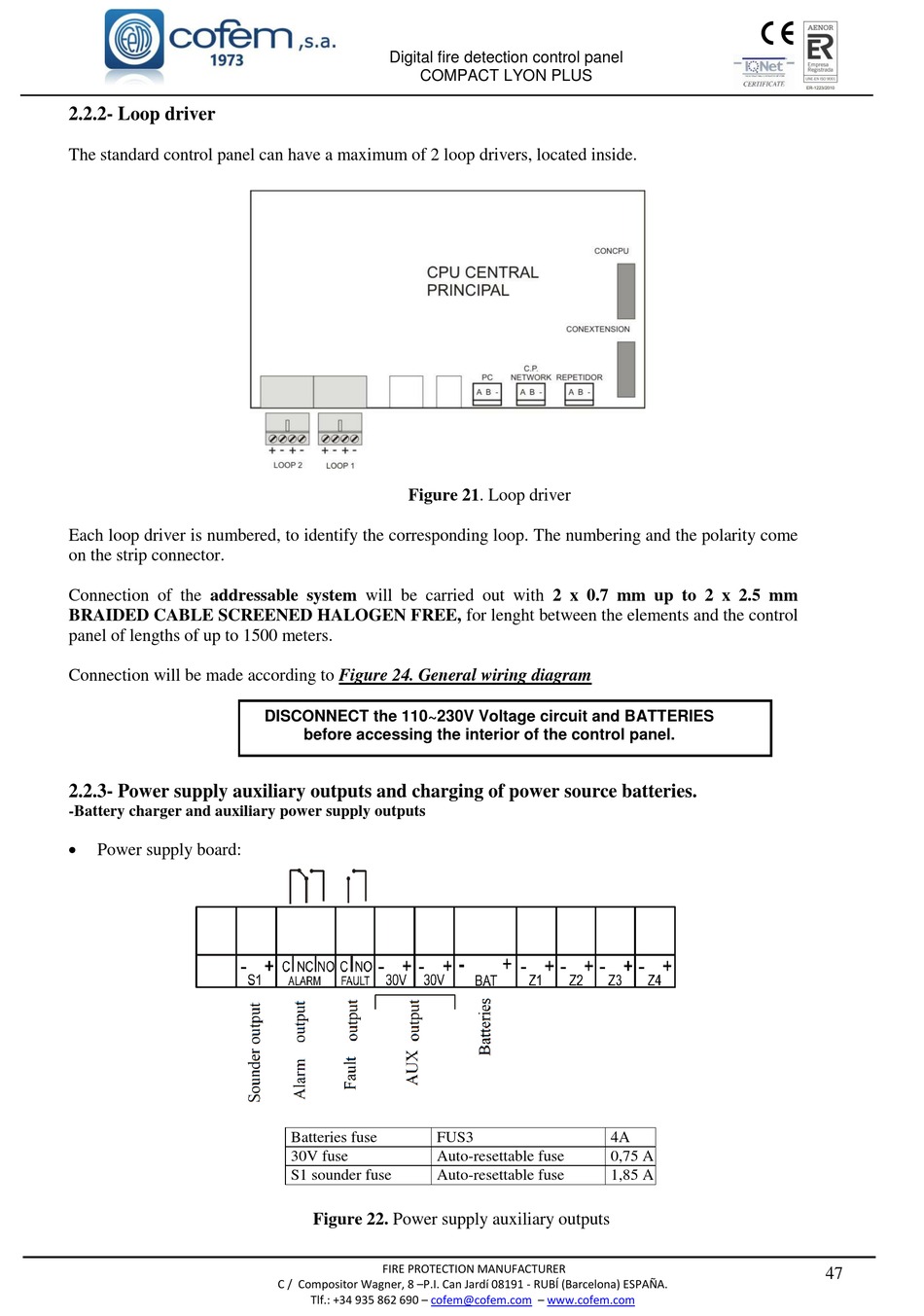

2.2.2- Loop driver

The standard control panel can have a maximum of 2 loop drivers, located inside.
Each loop driver is numbered, to identify the corresponding loop. The numbering and the polarity come
on the strip connector.
Connection of the addressable system will be carried out with 2 x 0.7 mm up to 2 x 2.5 mm
BRAIDED CABLE SCREENED HALOGEN FREE, for lenght between the elements and the control
panel of lengths of up to 1500 meters.
Connection will be made according to Figure 24. General wiring diagram

2.2.3- Power supply auxiliary outputs and charging of power source batteries.

-Battery charger and auxiliary power supply outputs
Power supply board:
Digital fire detection control panel
COMPACT LYON PLUS
Figure 21. Loop driver
DISCONNECT the 110~230V Voltage circuit and BATTERIES
before accessing the interior of the control panel.
Batteries fuse
FUS3
30V fuse
Auto-resettable fuse
S1 sounder fuse
Auto-resettable fuse
Figure 22. Power supply auxiliary outputs
FIRE PROTECTION MANUFACTURER
C / Compositor Wagner, 8 –P.I. Can Jardí 08191 - RUBÍ (Barcelona) ESPAÑA.
Tlf.: +34 935 862 690 –
cofem@cofem.com
4A
0,75 A
1,85 A
www.cofem.com
47
