Digital fire detection control panel
COMPACT LYON PLUS

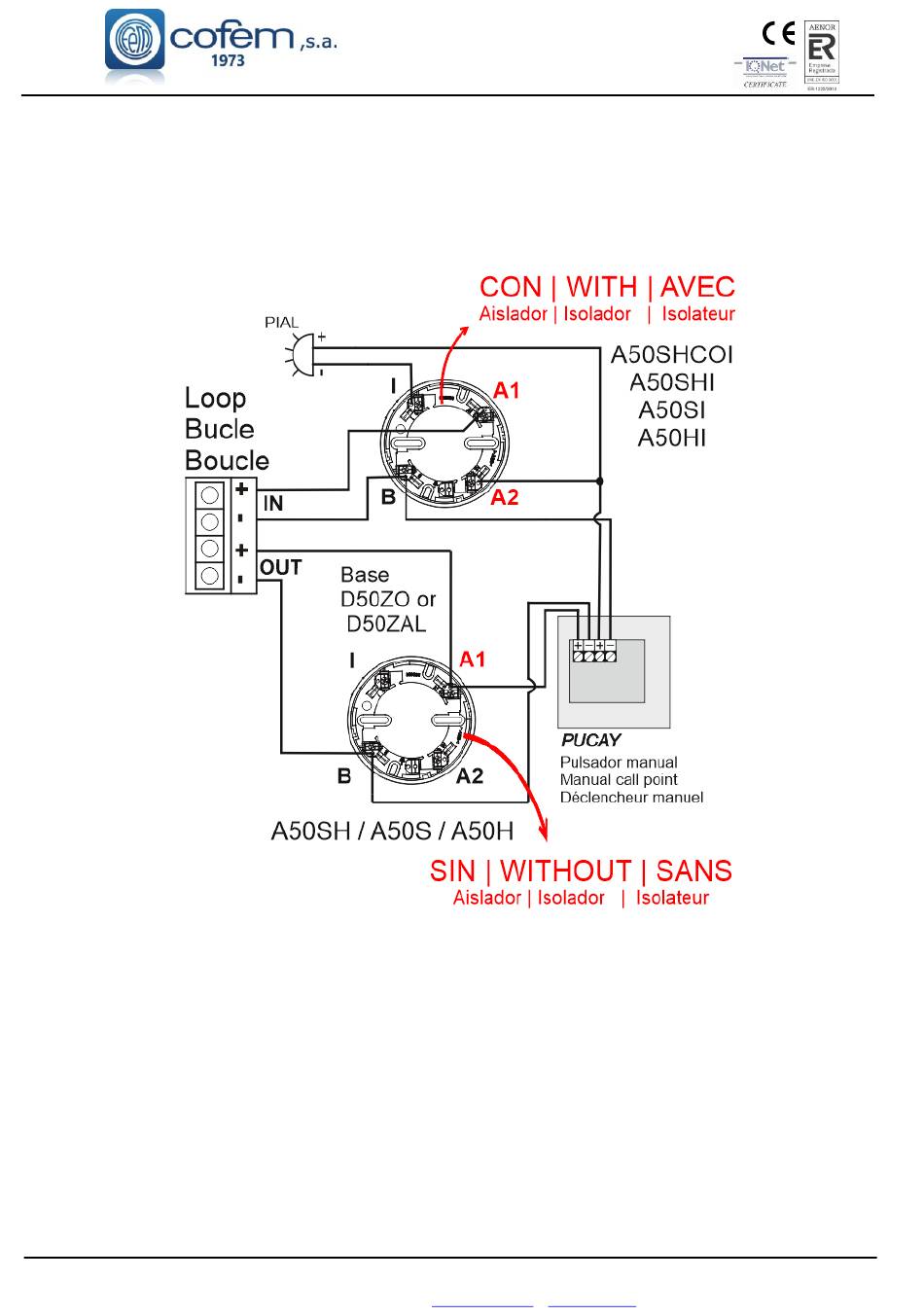

Figure 2B. Schematic diagram for the A50 family and PUCAY
NOTE: If the detector has ISOLATOR the POLARITY must be RESPECTED (B negative, A1
loop input positive B2 loop output positive.)
