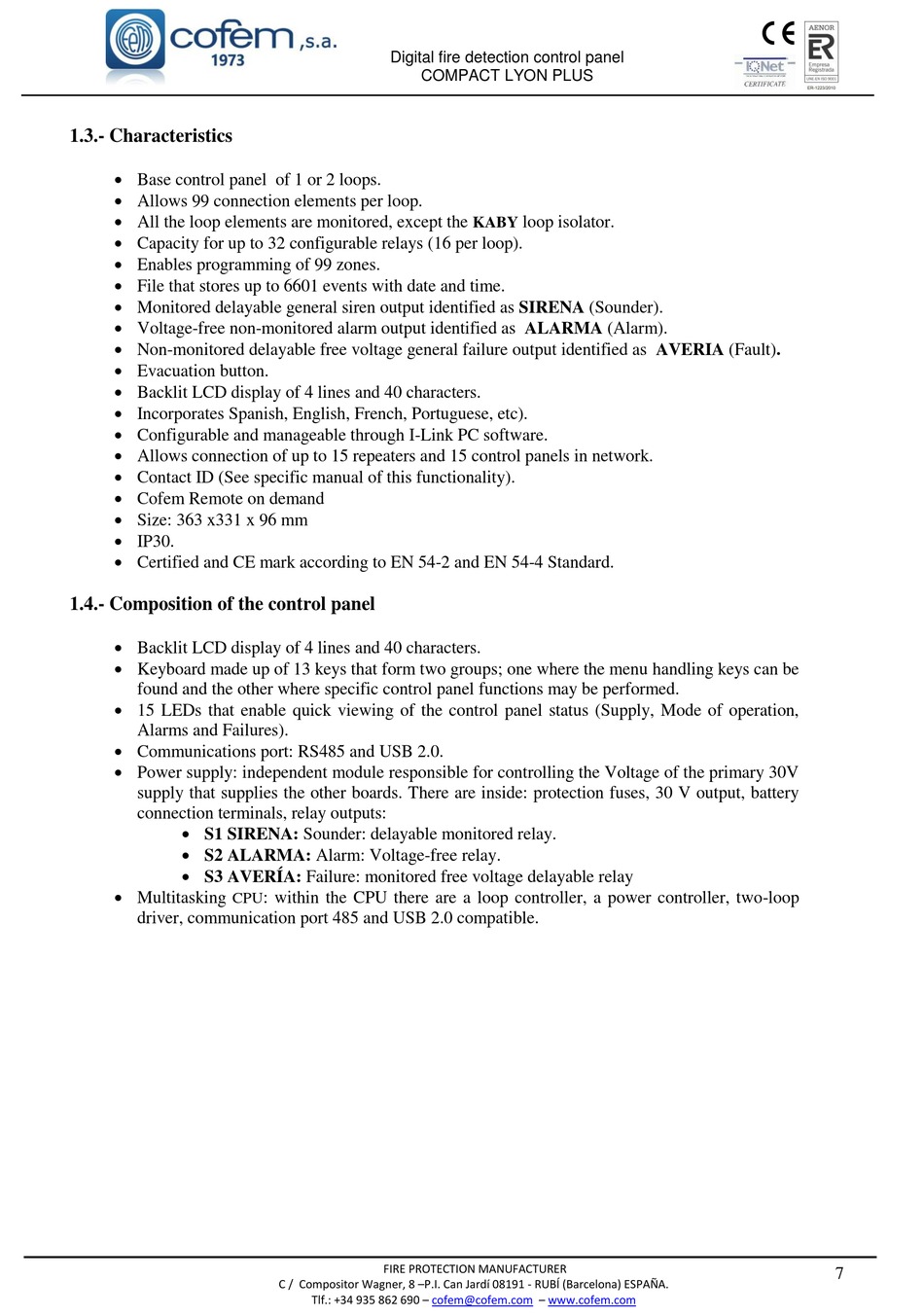

1.3.- Characteristics

 Base control panel of 1 or 2 loops.
 Allows 99 connection elements per loop.
 All the loop elements are monitored, except the
 Capacity for up to 32 configurable relays (16 per loop).
 Enables programming of 99 zones.
 File that stores up to 6601 events with date and time.
 Monitored delayable general siren output identified as SIRENA (Sounder).
 Voltage-free non-monitored alarm output identified as ALARMA (Alarm).
 Non-monitored delayable free voltage general failure output identified as AVERIA (Fault).
 Evacuation button.
 Backlit LCD display of 4 lines and 40 characters.
 Incorporates Spanish, English, French, Portuguese, etc).
 Configurable and manageable through I-Link PC software.
 Allows connection of up to 15 repeaters and 15 control panels in network.
 Contact ID (See specific manual of this functionality).
 Cofem Remote on demand
 Size: 363 x331 x 96 mm
 IP30.
 Certified and CE mark according to EN 54-2 and EN 54-4 Standard.

1.4.- Composition of the control panel

 Backlit LCD display of 4 lines and 40 characters.
 Keyboard made up of 13 keys that form two groups; one where the menu handling keys can be
found and the other where specific control panel functions may be performed.
 15 LEDs that enable quick viewing of the control panel status (Supply, Mode of operation,
Alarms and Failures).
 Communications port: RS485 and USB 2.0.
 Power supply: independent module responsible for controlling the Voltage of the primary 30V
supply that supplies the other boards. There are inside: protection fuses, 30 V output, battery
connection terminals, relay outputs:
 S1 SIRENA: Sounder: delayable monitored relay.
 S2 ALARMA: Alarm: Voltage-free relay.
 S3 AVERÍA: Failure: monitored free voltage delayable relay
 Multitasking
CPU
driver, communication port 485 and USB 2.0 compatible.
Digital fire detection control panel
COMPACT LYON PLUS
: within the CPU there are a loop controller, a power controller, two-loop
FIRE PROTECTION MANUFACTURER
C / Compositor Wagner, 8 –P.I. Can Jardí 08191 - RUBÍ (Barcelona) ESPAÑA.
Tlf.: +34 935 862 690 – cofem@cofem.com
loop isolator.
