Installation
The SoundStation IP 3000 - 3Com NBX
ships with the following items.
SoundStation IP 3000 - 3Com NBX
One Power Interface Module
One 25 Foot Long RJ45
Keyed Cable
One Power Brick
Connect the SoundStation
IP 3000 - 3Com NBX as follows:
Place the SoundStation IP 3000
1
- 3Com NBX on a table in a noise
free environment.
Connect the 6 feet long Ethernet cable
2
between the LAN port of the PIM and
an Ethernet switch port.
Connect the free end of the 25 feet
3
long keyed RJ45 cable to the bottom of
the phone. (The other end of this cable
should come pre-connected to the PIM.)
Connect the power adapter to the PIM.
4
Plug the Power adapter into an AC
5
outlet with the supplied power cord.
Once connected to the AC outlet,
6
the SoundStation IP 3000 - 3Com NBX
will power up and go through a boot-up
sequence. It will take approximately
15 seconds before any information is
displayed on the LCD.
4
One 6 Foot Long Ethernet Cable
One Power Cord
Installation Instructions
and Users Guide
Quick Reference Card
Warranty Card

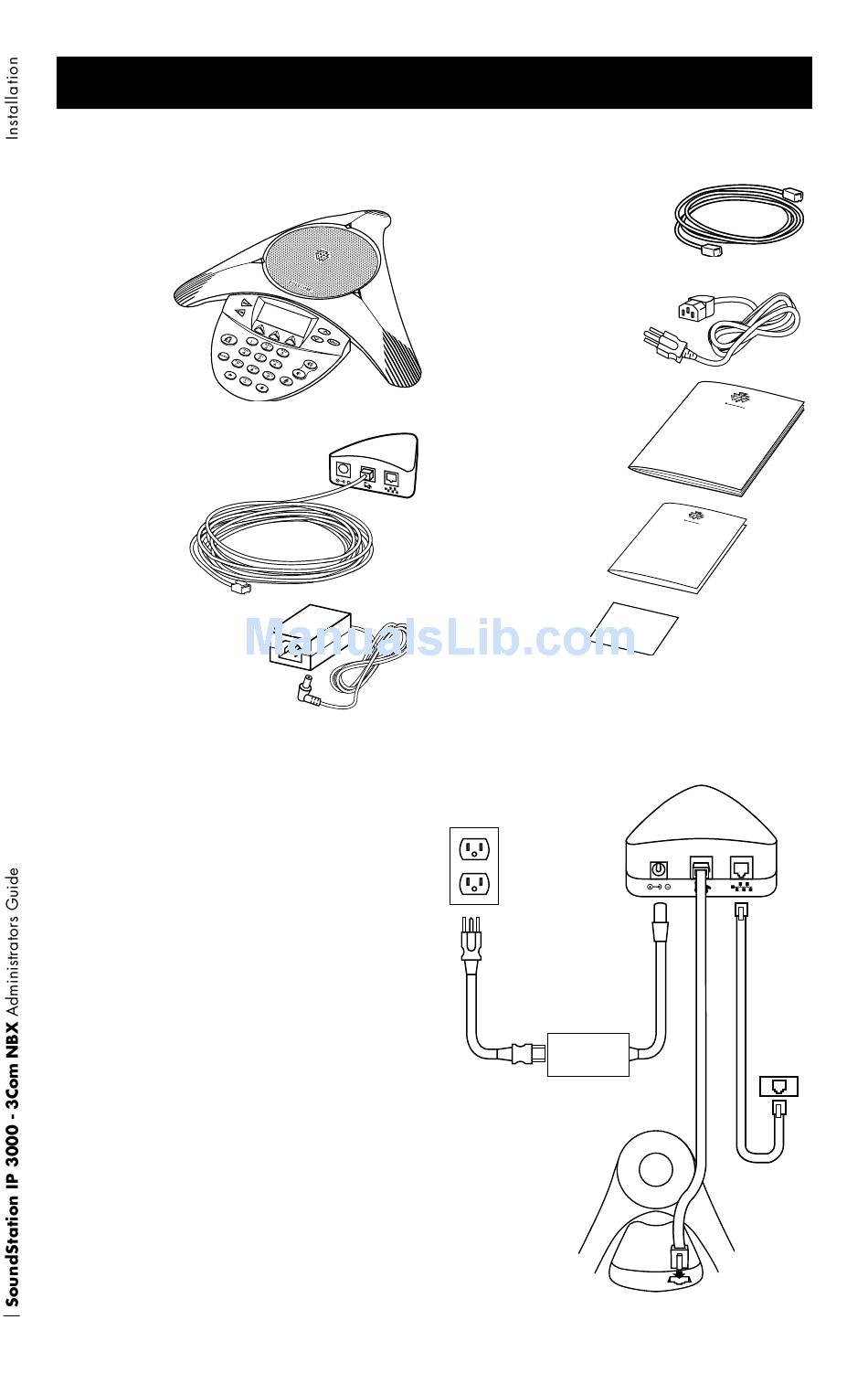

Figure 2 -
Connecting the SoundStation IP 3000 - 3Com NBX
5
AC Power
4
AC Adapter
3
Bottom of IP 3000 - 3Com NBX
PIM
2
Data
Network
Port
RJ-45 Port
