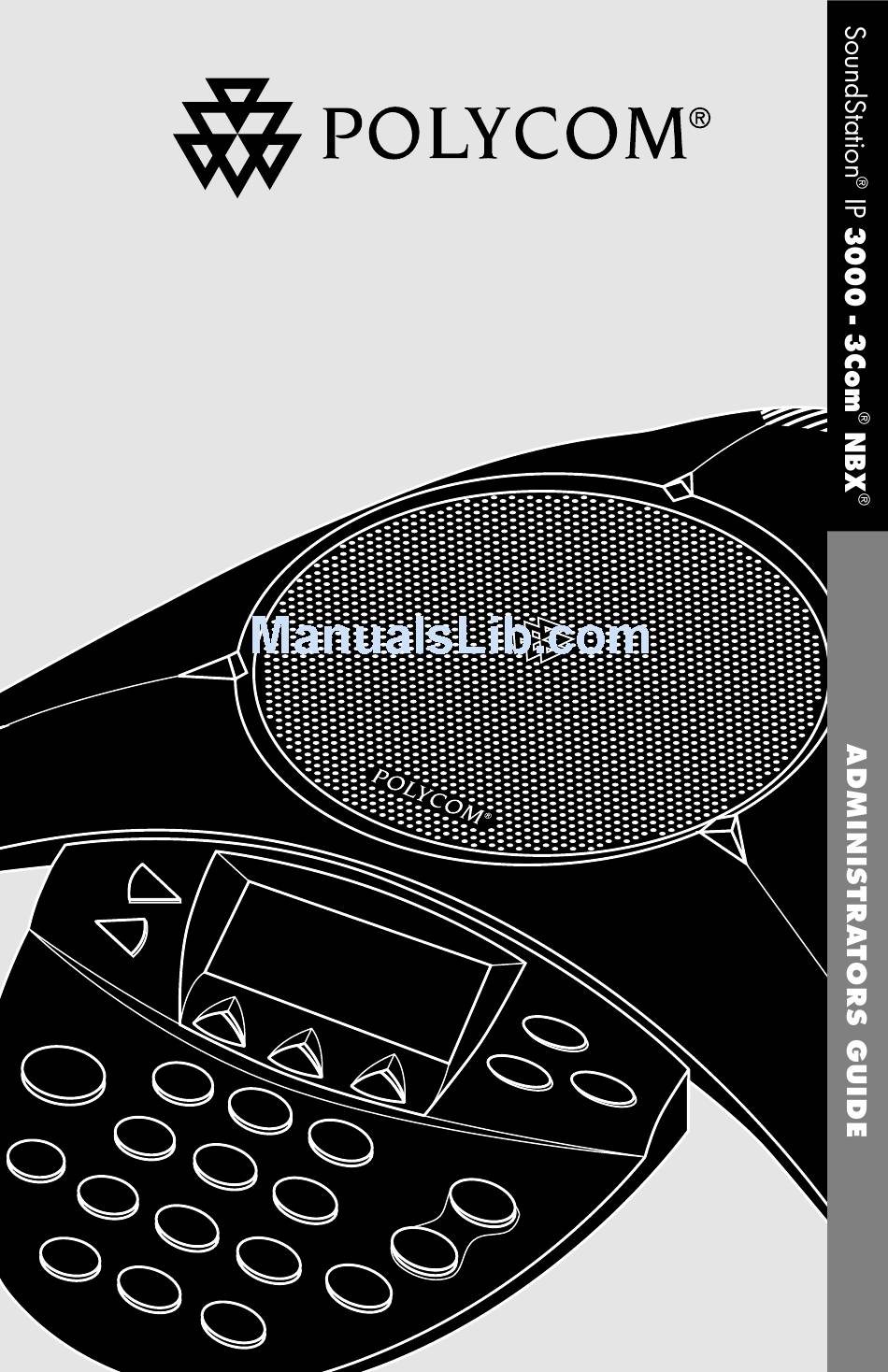

- Page 1 Administrators Guide...
-
Page 3: Table Of Contents
Introduction ... 1 Overview ... 1 Typical Deployment ... 1 Features ... 2 Communication Protocol Options ... 2 Preparing For Installation ... 3 Pre-installation Information ... 3 DHCP Server Configuration ... 3 Installation... 4 Configuration ... 5 User Accessible Configuration Options... 5 Phone Book ... -
Page 5: Introduction
This Administrator’s Guide outlines the key features of the SoundStation IP 3000 - 3Com NBX conference phone and gives step-by-step instructions for installation and configuration. The SoundStation IP 3000 - 3Com NBX has been specifically designed to work with 3Com NBX Call Processors. It will not work with other VoIP protocols like H.323. -
Page 6: Features
SoundStation IP 3000 - 3Com NBX. Frequency response of 300 Hz to 3500 Hz Full Duplex/Echo Cancellation, Clarity® by Polycom Silence Suppression Comfort Noise Generation User-Selectable Ringer tones Audio codec support: G.711 µ-law... -
Page 7: Preparing For Installation
Pre-Installation Information Collect the following information before installing the SoundStation IP 3000 - 3Com NBX: Layer 2 Mode None DHCP Server Configuration If using the Sound Station IP 3000 - 3Com NBX in Layer 3 Mode using DHCP, ensure that the following DHCP options are configured on the DHCP server: Option Number Preparing For Installation... -
Page 8: Installation
Installation The SoundStation IP 3000 - 3Com NBX ships with the following items. SoundStation IP 3000 - 3Com NBX One Power Interface Module One 25 Foot Long RJ45 Keyed Cable One Power Brick Connect the SoundStation IP 3000 - 3Com NBX as follows: Place the SoundStation IP 3000 - 3Com NBX on a table in a noise free environment. -
Page 9: Configuration
SoundStation IP 3000 - 3Com NBX configuration is managed locally at the phone using the LCD display the keypad. The system offers two levels of configuration privileges: User Accessible Configuration Options Users have limited access to the phone’s configuration. Specifically, users only have access to the speed dial, contrast and ringer settings. -
Page 10: Local Configuration
Local Configuration Program Speed Dials To enter the Administration Configuration menu: Press the Menu hardkey Select Local Functions Select Admin Setup Enter the password Use the scroll and Select keys to navigate through the menu. The Menu key moves up a level and, the Exit key closes the menu. -
Page 11: Summary Of Configuration Data
Summary of Configuration Data Parameter User Controlled Controlled DHCP IP Address IP Mask Router1 Domain NCP Mac DHCP NCP IP User Defined NCP IP TFTP Server Use Alternate TFTP Alternate TFTP Server Ethernet Port Configuration Language LCD Contrast Ringer Volume Administrator PW MAC Address NCP MAC Address... -
Page 12: Restoring Default Configuration
NBX Call Processor. Firmware updates will be provided from time to time. Polycom recommends that the firmware be updated as soon as possible when new versions are released. These updates can be loaded onto the SoundPoint IP 3000 –... -
Page 13: Managing The Soundstation Ip 3000 - 3Com Nbx
Managing the SoundStation IP 3000 - 3Com NBX On the NBX System Adding, removing or modifying a SoundStation IP 3000 – 3Com NBX telephone to the NBX system, is done using the NBX NetSet utility. There are two methods for Adding new telephones to the system: The simplest and most common method is Auto Discovery. -
Page 14: Appendix: A
Appendix: A Restarts The SoundStation IP 3000 - 3Com NBX will restart under the following conditions. After certain configuration changes (i.e. Changing DHCP/Static IP Mode or the Router IP address). Special Features SoundStation IP 3000 - 3Com NBX recognizes several special key sequences that are not available through the regular user interfaces to allow special features to be invoked. -
Page 15: Appendix B: Start Up
When the SoundStation IP 3000 - 3Com NBX is powered up, it will follow the Start-Up Sequence illustrated in the associated diagram. Appendix B: Start Up Power On Load Software From FLASH NBX Found At Layer 2 DHCP Yes/No Get Params From DHCP NBX Found At Layer 3... -
Page 16: Appendix C: Troubleshooting
Appendix C: Troubleshooting Below are some suggestions for troubleshooting the phone. LCD/LED Not On Make sure the SoundStation IP 3000 - 3Com NBX is plugged in properly and power is applied. ‘Obtaining IP’ Address Message Never Goes Away SoundStation IP 3000 - 3Com NBX is set up for DHCP and is unable to contact the DHCP server. -
Page 17: Appendix D: Status Messages
This section summarizes the messages that are displayed on the SoundStation IP 3000 - 3Com NBX. Message Polycom, Inc. Copyright 2001 Initialization in Progress Waiting for NCP Obtaining IP Address (Press Menu to Re-configure) Starting Application. Please Wait … Updating …(%) done DO NOT POWER OFF Updating …100% done... - Page 20 Internet http://www.polycom.com/support Polycom, Inc. 1565 Barber Lane Milpitas, CA 95035 ® ® Polycom , SoundStation , and the Polycom logo design are registered trademarks of Polycom, Inc. in the U.S. and various countries. ©2001 Polycom, Inc. All Rights Reserved. 3810-07140-001 RevC...
