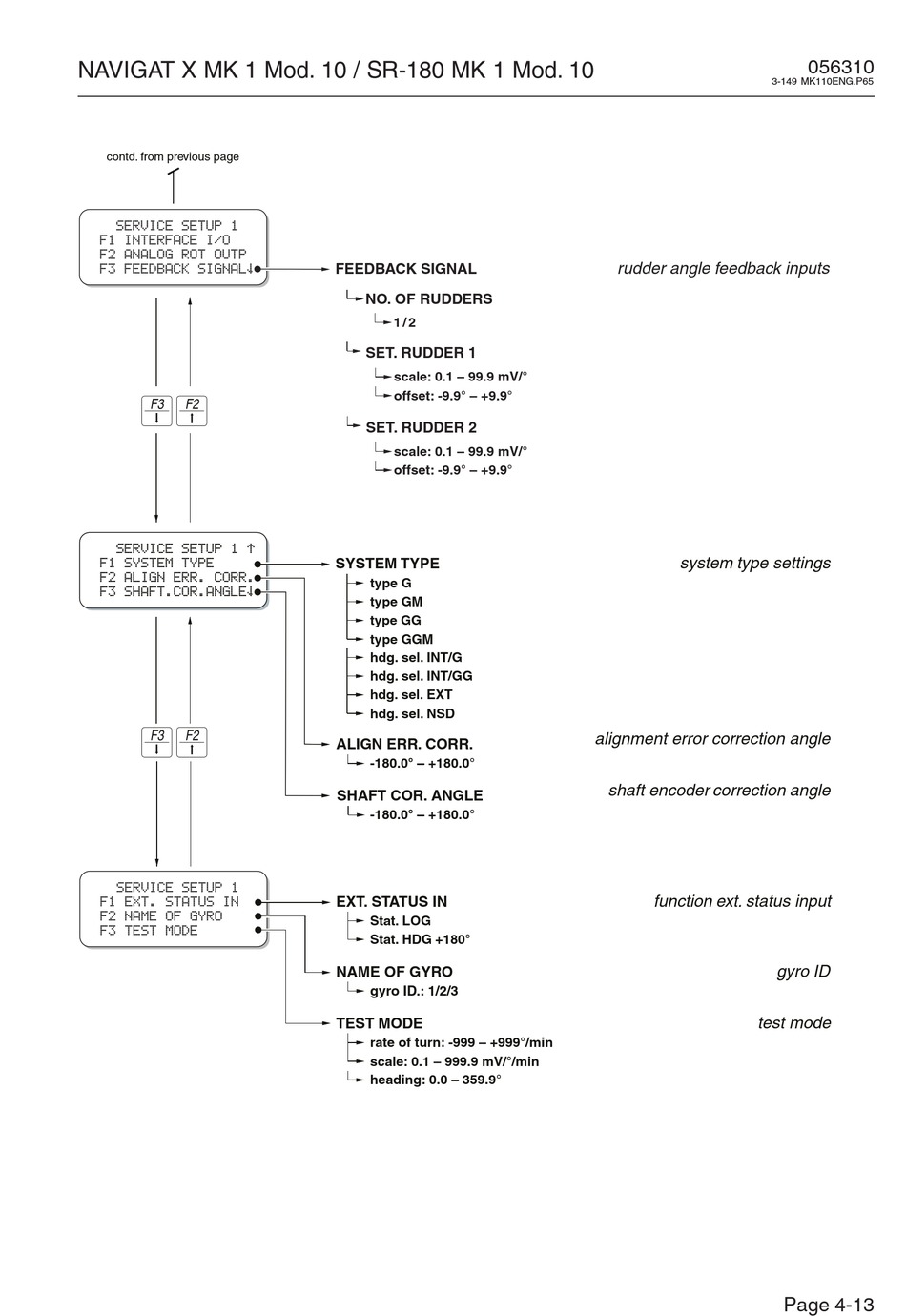

NAVIGAT X MK 1 Mod. 10 / SR-180 MK 1 Mod. 10
contd. from previous page
... SERVICE SETUP 1 . . ..
. F1 INTERFACE I/O . . ...
. F2 ANALOG ROT OUTP . . . .
. F3 FEEDBACK SIGNALü . .
3 2
... SERVICE SETUP 1 û . . .
. F1 SYSTEM TYPE . . .....
. F2 ALIGN ERR. CORR. . . .
. F3 SHAFT.COR.ANGLEü .
3 2
... SERVICE SETUP 1 . .
. F1 EXT. STATUS IN . . .
. F2 NAME OF GYRO . . .
. F3 TEST MODE . .
FEEDBACK SIGNAL
NO. OF RUDDERS
1 / 2
SET. RUDDER 1
scale: 0.1 – 99.9 mV/°
offset: -9.9° – +9.9°
SET. RUDDER 2
scale: 0.1 – 99.9 mV/°
offset: -9.9° – +9.9°
SYSTEM TYPE
type G
type GM
type GG
type GGM
hdg. sel. INT/G
hdg. sel. INT/GG
h dg. sel. EXT
hdg. sel. NSD
ALIGN ERR. CORR.
-180.0° – +180.0° ° –
SHAFT COR. ANGLE
-180.0° – +180.0° ° –
EXT. STATUS IN
Stat. LOG
Stat. HDG +180°
NAME OF GYRO
gyro ID.: 1/2/3
TEST MODE
rate of turn: -999 – +999°/min
scale: 0.1 – 999.9 mV/°/min
heading: 0.0 – 359.9°
rudder angle feedback inputs
system type settings
alignment error correction angle
shaft encoder correction angle
function ext. status input
test mode
056310
3-149 MK110ENG.P65
gyro ID
Page 4-13
