2.3.7
Display Data Selection
The "Display Data" menu provides access to the data display screens. The selected
display screen remains active until the user selects a different screen or quits the
display data menu.

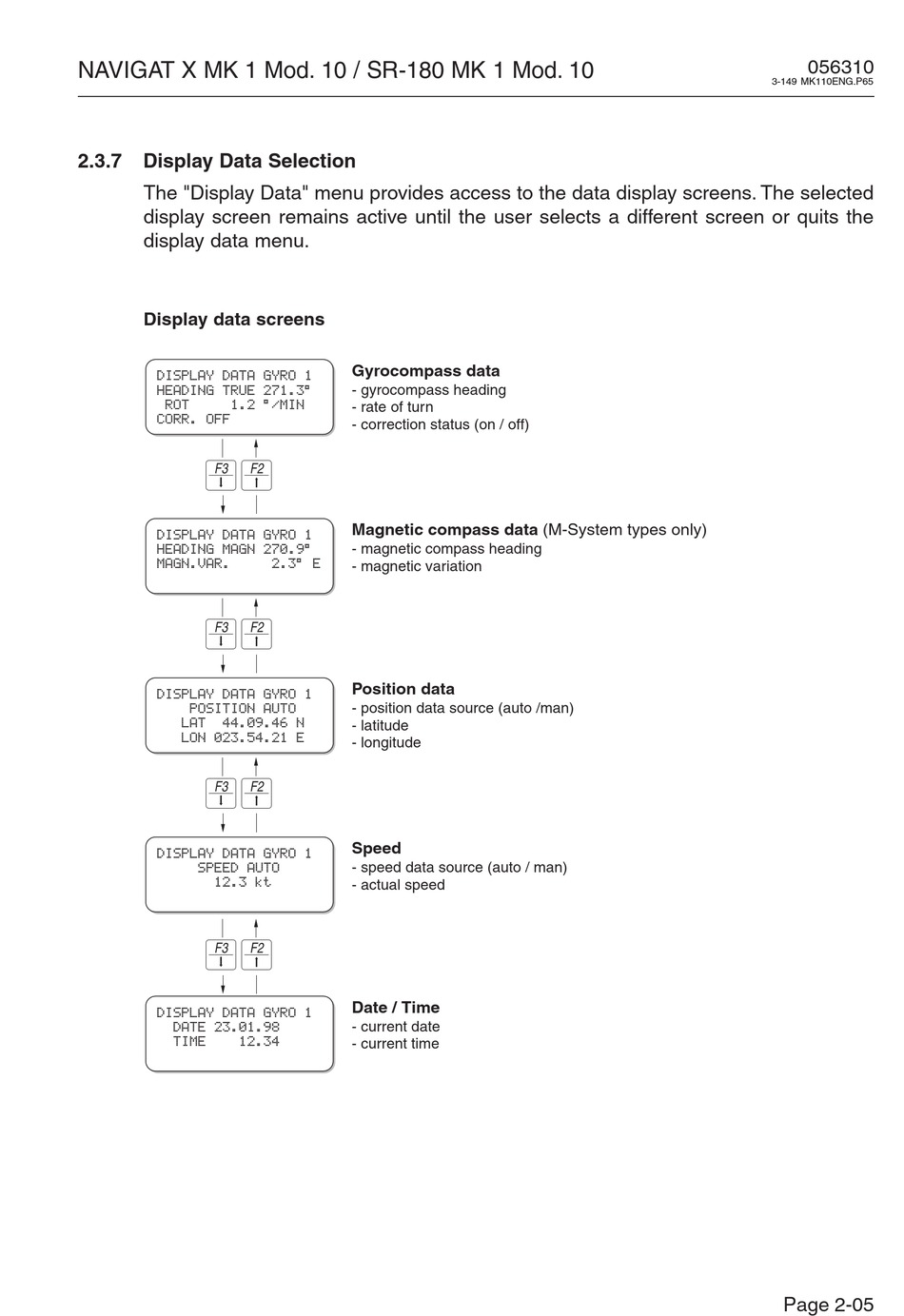

Display data screens
DISPLAY DATA GYRO 1
.
HEADING TRUE 271.3°
.
.
ROT
.....
1.2 °/MIN
CORR. OFF
.
...........
3
2
DISPLAY DATA GYRO 1
.
HEADING MAGN 270.9°
.
MAGN.VAR.
.....
....................
3
2
DISPLAY DATA GYRO 1
.
....
POSITION AUTO
...
LAT
..
44.09.46 N
...
LON 023.54.21 E
.
3
2
DISPLAY DATA GYRO 1
.
.....
SPEED AUTO
.
.......
12.3 kt
.
....................
3
2
DISPLAY DATA GYRO 1
.
..
DATE 23.01.98
.
..
TIME
....
12.34
....................
Gyrocompass data
.
. .
.
.
- gyrocompass heading
.
..
- rate of turn
- correction status (on / off)
Magnetic compass data (M-System types only)
.
. .
.
.
- magnetic compass heading
2.3° E
.
- magnetic variation
Position data
.
. .
.
..
- position data source (auto /man)
. ..
- latitude
. ..
- longitude
Speed
.
. .
.....
- speed data source (auto / man)
......
- actual speed
Date / Time
.
. .
.....
- current date
.....
- current time
056310
3-149 MK110ENG.P65
Page 2-05
