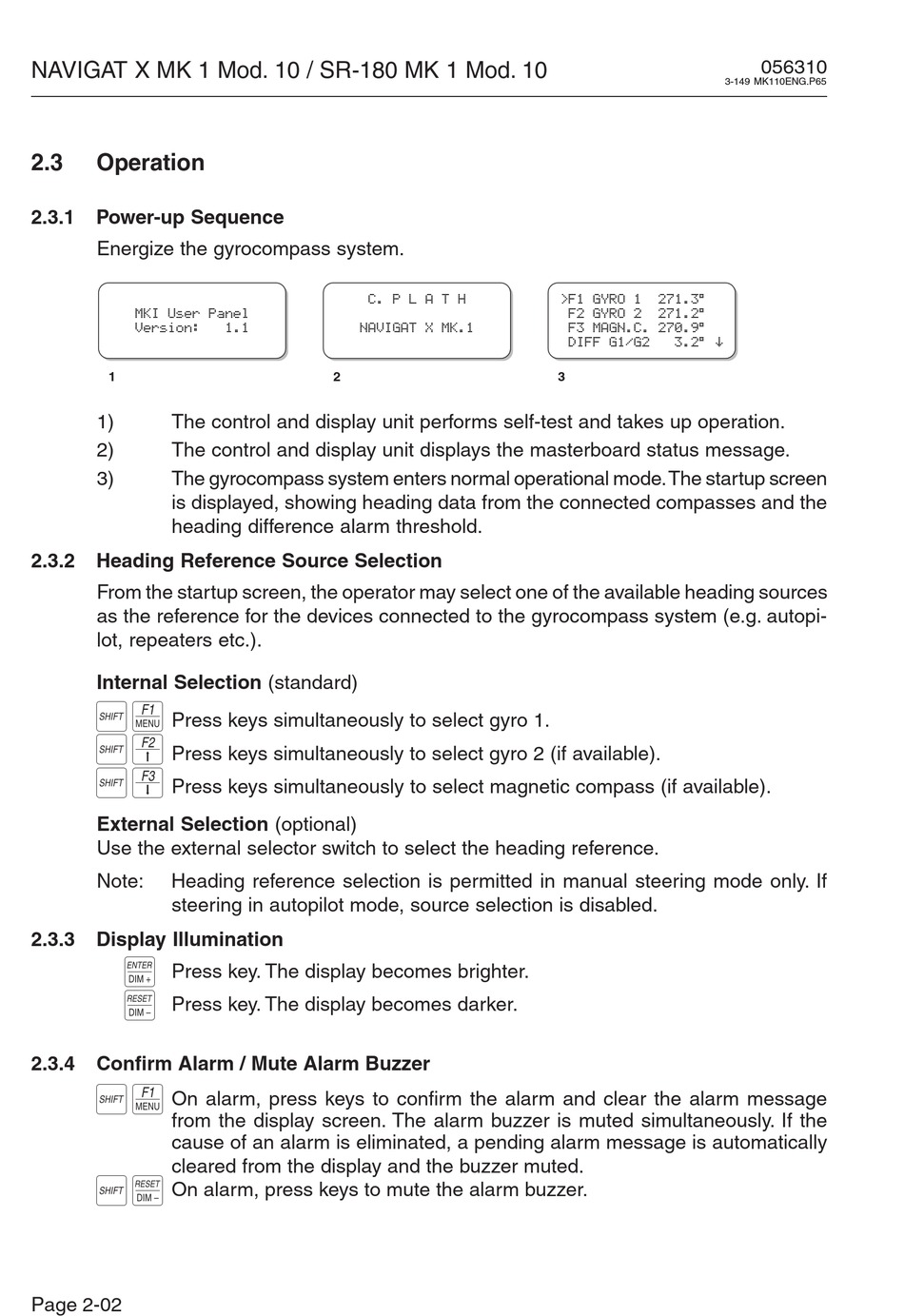

NAVIGAT X MK 1 Mod. 10 / SR-180 MK 1 Mod. 10
2.3
Operation
2.3.1
Power-up Sequence
Energize the gyrocompass system.
....................
...
MKI User Panel
.
.
...
Version:
...
1
1)
The control and display unit performs self-test and takes up operation.
2)
The control and display unit displays the masterboard status message.
3)
The gyrocompass system enters normal operational mode. The startup screen
is displayed, showing heading data from the connected compasses and the
heading difference alarm threshold.
2.3.2
Heading Reference Source Selection
From the startup screen, the operator may select one of the available heading sources
as the reference for the devices connected to the gyrocompass system (e.g. autopi-
lot, repeaters etc.).
Internal Selection (standard)
4 1
Press keys simultaneously to select gyro 1.
4 2
Press keys simultaneously to select gyro 2 (if available).
4 3
Press keys simultaneously to select magnetic compass (if available).
External Selection (optional)
Use the external selector switch to select the heading reference.
Note:
Heading reference selection is permitted in manual steering mode only. If
steering in autopilot mode, source selection is disabled.
2.3.3
Display Illumination
6
Press key. The display becomes brighter.
5
Press key. The display becomes darker.
2.3.4
Confirm Alarm / Mute Alarm Buzzer
4 1
On alarm, press keys to confirm the alarm and clear the alarm message
from the display screen. The alarm buzzer is muted simultaneously. If the
cause of an alarm is eliminated, a pending alarm message is automatically
cleared from the display and the buzzer muted.
4 5
On alarm, press keys to mute the alarm buzzer.
Page 2-02
....
C. P L A T H
. . . . . ....
...
....................
1.1
...
...
NAVIGAT X MK.1
2
>F1 GYRO 1
.
.
F2 GYRO 2
.
. .
...
.
F3 MAGN.C. 270.9°
.
.
DIFF G1/G2
3
056310
3-149 MK110ENG.P65
. ..
271.3°
..
. ..
271.2°
..
.
..
.
...
3.2° þ
.
