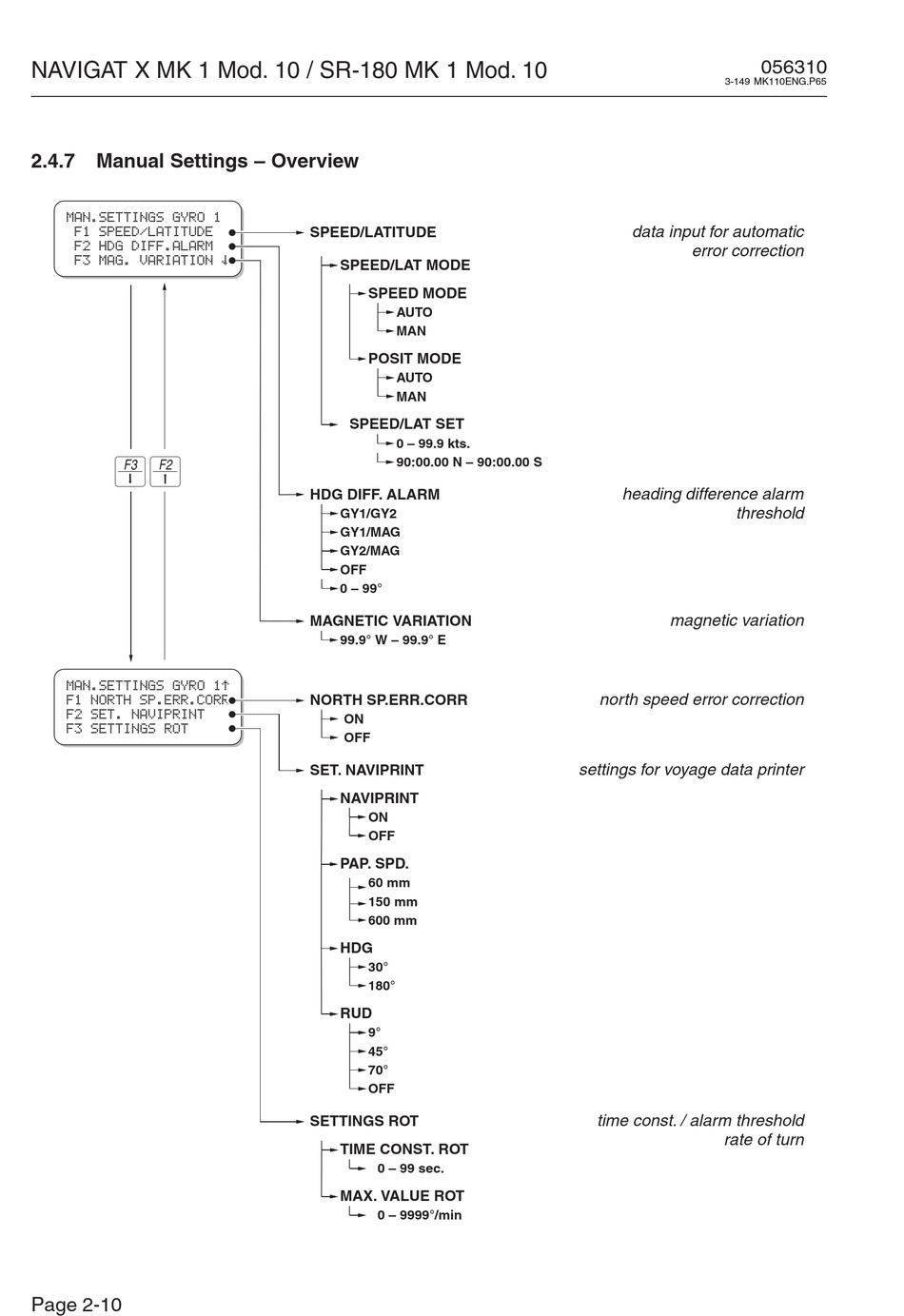

2.4.7 Manual Settings – Overview
MAN.SETTINGS GYRO 1 .
. F1 SPEED/LATITUDE .
. F2 HDG DIFF.ALARM . .
. F3 MAG. VARIATION þ . .
3 2
MAN.SETTINGS GYRO 1û .
F1 NORTH SP.ERR.CORR . .
F2 SET. NAVIPRINT . .
F3 SETTINGS ROT . .
Page 2-10
. .
..
SPEED/LATITUDE
..
.
SPEED/LAT MODE
SPEED MODE
POSIT MODE
SPEED/LAT SET
HDG DIFF. ALARM
GY1/GY2
GY1/MAG
GY2/MAG
OFF
0 – 99°
MAGNETIC VARIATION
99.9° W – 99.9° E
.
NORTH SP.ERR.CORR
.
ON
OFF
SET. NAVIPRINT
NAVIPRINT
ON
OFF
PAP. SPD.
60 mm
150 mm
600 mm
HDG
30°
180°
RUD
9°
45°
70°
OFF
SETTINGS ROT
TIME CONST. ROT
MAX. VALUE ROT
AUTO
MAN
AUTO
MAN
0 – 99.9 kts.
90:00.00 N – 90:00.00 S
0 – 99 sec.
0 – 9999°/min
3-149 MK110ENG.P65
data input for automatic
error correction
heading difference alarm
threshold
magnetic variation
north speed error correction
settings for voyage data printer
time const. / alarm threshold
rate of turn
056310
