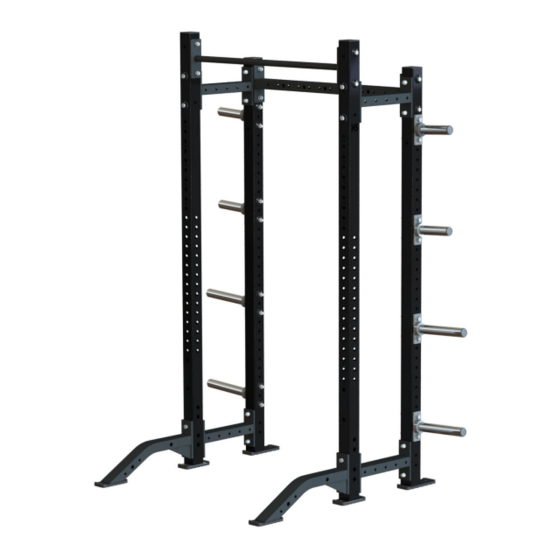

Heavy Duty Athletic NX Add-Ons
Owner's Manual
HDW‑SQST, HDW‑HR, HDW‑PR, HDW‑HHCR, HDW‑PHCR, HDW‑PPCR
1020648-0001 REV AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDW-SQST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hammer Strength HDW-SQST

Summary of Contents for Hammer Strength HDW-SQST

  • Page 1 Heavy Duty Athletic NX Add-Ons Owner's Manual HDW‑SQST, HDW‑HR, HDW‑PR, HDW‑HHCR, HDW‑PHCR, HDW‑PPCR 1020648-0001 REV AB...
  • Page 3 Corporate Headquarters 10601 W Belmont Ave, Franklin Park, IL 60131 • U.S.A. 847.288.3300 • FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Life Fitness Atlantic BV...
  • Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.

  • Page 5: Table Of Contents

    © Copyright 2022, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change.

  • Page 6: Safety Information

    1. Safety Safety Information It is the sole responsibility of the purchaser of Life Fitness Family of Brands products to read the owner’s manual and warning labels and instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment.
  • Page 7 • Equipment Maintenance - Preventative maintenance is the key to smooth operating equipment as well as to keep your liability to a minimum. Equipment needs to be inspected at regular intervals. • Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.

  • Page 8: Product Labels

    Product Labels Pinch Hazard Max Training, 405 LB Max Training, 495 LB Max Capacity, 680 LB Max Capacity, 1485 LB Page 6 of 29...

  • Page 9: Label Locations

    Label Locations Accessory Tray Dumbbell Tray 2-Pipe Power Pivot Item Description Qty. Max Capacity, 680 LB Max Capacity, 1485 LB Pinch Hazard Page 7 of 29...
  • Page 10 Standard HR Bar Catch Premium HR Bar Catch Item Description Qty. Max Training, 405 LB Max Training, 495 LB Page 8 of 29...

  • Page 11: Assembly

    2. Assembly Component and Hardware List Bar Catches and Supports NOTE: • Bar catches and supports are sold in pairs. • All bar catches should always be used at or above 28" (71 cm) when performing squat exercises. • If using HR Bar Catches on the outside of 6-Post Power Rack uprights, rack is required to be bolted to floor unless it has stability feet.
  • Page 12 Weight Horns NOTE: Weight horns are sold in pairs. Item Description 7" Weight Horn 11" Weight Horn Add-Ons Item Description Qty. Band Pegs Hanging Bar Storage Low Bar Storage Nordic Ham Power Pivot Super Duty Crossmember Page 10 of 29...
  • Page 13 72" Connectors Item Description Qty. Monkey Bar Square 72" Storages Item Description Qty. Accessory Tray Dumbbell Tray Stability Ball 2-Pipe Page 11 of 29...
  • Page 14 Hardware Kit 1 Item Description Qty. Bolt, HHB .5 x 4.5 Backing Washer Lock Washer, 1/2" Lock Nut, 1/2" Hardware Kit 3 Item Description Qty. Step Washer, 1/2" Page 12 of 29...

  • Page 15: Tools Required

    Hardware Kit Configurations Item Hardware Kit 1 Hardware Kit 3 Weight Horns Add-Ons Hanging Bar Storage Low Bar Storage Power Pivot Super Duty Crossmember 72" Connectors Monkey Bar Square 72" Storage Accessory Tray Dumbbell Tray Stability Ball 2-Pipe Tools Required •...

  • Page 16: Assembly Procedure

    Assembly Procedure Install Add-Ons Install Band Pegs NOTE: All racks are required to be bolted to floor if training with bands or using suspension training devices. Install bang pegs to large holes in training uprights or crossmembers. Item Description Qty. Band Peg Training Upright Install Hanging Bar Storage...
  • Page 17 Install Low Bar Storage Install bolts, washers, backing washers, and lock nuts securing low bar storage to lower crossmember using two 3/4" wrenches. Item Description Qty. Low Bar Storage Lower Crossmember Bolt, HHB .5 x 4.5 Lock Washer, 1/2" Backing Washer Lock Nut, 1/2"...
  • Page 18 Install Super Duty Crossmember The super duty crossmember is required to install the custom sign. Custom sign can be installed on the front or rear of super duty crossmember. Install bolts, backing washers, washers, and lock nuts securing super duty crossmember to training uprights using two 3/4"...
  • Page 19 Install Custom Sign Install screws, washers, spacers, and lock nuts securing optional custom sign and backer plate to super duty crossmember using a 7mm Allen wrench and 17mm wrench. NOTE: Single custom sign can be installed on the front or rear of super duty crossmember. Single Custom Sign Double Custom Sign Item...
  • Page 20 Install Flexible Bar Catches Flexible bar catches can be installed to Power Racks, Power / Half Combo Racks, and Power / Power Combo Racks. Install flexible bar catches to training uprights by lifting the latch and sliding the pivot shaft into training upright hole. Item Description Qty.
  • Page 21 Install Weight Horns Install bolts, washers, backing washers, and lock nuts securing weight horns to storage uprights using two 3/4" wrenches. Item Description Qty. Weight Horn Storage Upright Bolt, HHB .5 x 4.5 Lock Washer, 1/2" Backing Washer Lock Nut, 1/2" Tighten hardware to 20-25 ft-lb (27-34 Nm).
  • Page 22 Weight Plate Storage When adding and removing weight plates from weight horns, always evenly load and unload (left/right side) weight plates to avoid tipping. Below is the recommended bumper plate storage configuration: • (2) 10 lb plates • (2) 25 lb plates •...
  • Page 23 Install 72" Connectors Install Monkey Bar Connector 1. Remove lower bolt, backing washer, washer, and lock nut securing front crossmember to training upright on one rack using two 3/4" wrenches. Item Description Qty. Front Crossmember Training Upright Bolt, HHB .5 x 4.5 Backing Washer Washer, 1/2"...
  • Page 24 Install Square Connector 1. Remove lower bolt, backing washer, washer, and lock nut securing front crossmember to training upright on one rack using two 3/4" wrenches. Item Description Qty. Front Crossmember Training Upright Bolt, HHB .5 x 4.5 Backing Washer Washer, 1/2"...
  • Page 25 Install 72" Storages NOTE: When installing multiple storage options, leave a minimum of 10 open holes on storage uprights between storage options. Install Accessory Tray Storage Install bolts, backing washers, step washers, and lock nuts securing accessory tray storage between two storage uprights using two 3/4"...
  • Page 26 Install Dumbbell Tray Storage Install bolts, backing washers, step washers, and lock nuts securing dumbbell tray storage between two storage uprights using two 3/4" wrenches. NOTE: Dumbbell tray storage can be installed in two different positions. Item Description Qty. Dumbbell Tray Storage Storage Upright Bolt, HHB .5 x 4.5 Backing Washer...
  • Page 27 Install 2-Pipe Storage Install bolts, backing washers, step washers, and lock nuts securing 2-pipe storage between two storage uprights using two 3/4" wrenches. Item Description Qty. 2-Pipe Storage Storage Upright Bolt, HHB .5 x 4.5 Backing Washer Step Washer, 1/2" Lock Nut, 1/2"...

  • Page 28: Maintenance Procedures

    3. Maintenance Procedures Maintenance Schedule ACTION DAILY WEEKLY MONTHLY AS NEEDED Frames INSPECT Accessories Paint Hardware Frame Clean • Frame with a mild soap and water. • Frames with a standard, non-abrasive, wax finish. Inspect • Hardware. Check for loosening. Tighten as required. •...
  • Page 29 Removal of Paint, Marking Pens, or Labels • Butyl cellosolve works well for removal of paints, marking pen inks, lipstick, etc. • Labels, stickers, etc. may be removed using kerosene. When the solvent will not penetrate sticker material, apply heat (hair dryer) to soften the adhesive and promote removal. GASOLINE SHOULD NOT BE USED. Page 27 of 29...

  • Page 30: Warranty

    4. Warranty What is Covered This Life Fitness Family of Brands commercial exercise equipment product is warranted to be free of all defects in material and workmanship. Who is Covered The original purchaser or any person receiving the product as a gift from the original purchaser. Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year.

  • Page 31: How To Obtain Product Service

    Item 5 Years 3 Years 1 Year 90 Days Frame Hardware / Mechanical Items Not Specified How to Obtain Product Service For CUSTOMER Service within the United States and Canada: 1-800-351-3737 or customersupport@lifefitness.com Please call Monday through Friday from 7:00 a.m. to 6:00 p.m. Central Standard Time, and tell them your name, address, and serial number of your Product.
