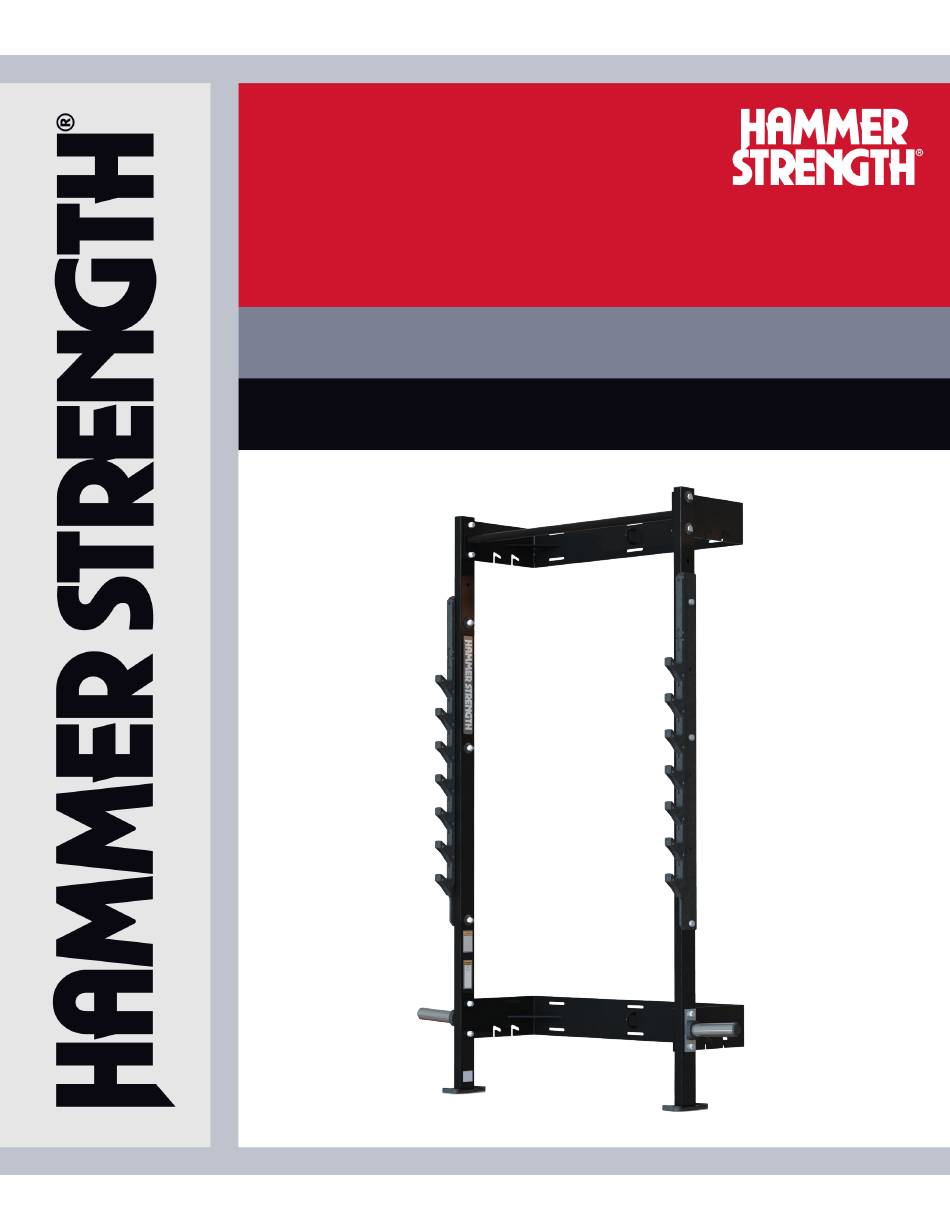

- Page 1 Home Squat Rack Owner's Manual/Assembly Instructions HSH-WSR 1016223-0001 REV AA...
- Page 3 Corporate Headquarters Columbia Centre III, 9525 Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A. 847.288.3300 • FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD...
- Page 4 User and Service Documents Link https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the link above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...
-
Page 5: Table Of Contents
2XL Corporation. PureGreen 24 is a trademark of Pure Green. © Copyright 2019, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. -
Page 6: Safety Information
1. Safety Safety Information It is the sole responsibility of the purchaser of Life Fitness Family of Brands products to read the owner’s manual and warning labels and instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment. - Page 7 Warnings and Cautions • Warning labels indicate a potentially hazardous situation that could result in serious injury or death if the precautions are not observed. • Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to machine if the precautions are not observed.
-
Page 8: Product Labels
Product Labels Required Bolt to Wall General Warning Serial Number Page 6 of 24... -
Page 9: Label Locations
Label Locations Item Description Qty. Required Bolt to Wall General Warning Serial Number Page 7 of 24... -
Page 10: Assembly
2. Assembly Wall Mount Requirements Wall Types: • Mount Wall Squat Rack only to walls with wooden studs, spaced 16 inches (40.64cm) apart on center. Please contact a licensed contractor if the wall does not meet this requirement. Wall Thickness: •... - Page 11 • Two people are required to safely assemble the Hammer Strength Wall Squat Rack. Questions: • If you should have any questions or concerns regarding mounting the Hammer Strength Wall Squat Rack, please contact a licensed contractor to help with installation.
-
Page 12: Component List
Component List Item Description Qty. Left Upright Assembly Right Upright Assembly Chin-Up Bar Hardware Kit Bracket Angled Weight Horn Page 10 of 24... -
Page 13: Tools Required
Hardware Kit Item Description Qty. End Cap Bolt, 1/2 x 3 Screw, 3/8-7 Hex Lag 1/2" Lock Washer 3/8" Washer Backing Washer 1/2" Nut Tools Required • Safety glasses • 3/4” Open end wrench (x2) • 9/16” Open end wrench •... -
Page 14: Assembly Procedure
Assembly Procedure Two people will be required for this procedure. TIP: Read and understand all instructions thoroughly before assembling this unit. Check all items carefully. If there is damage, see the Customer Service section of this manual for proper procedure to return, replace, or reorder parts. Assemble Frame and Mount to Wall 1. - Page 15 3. Loosely assemble the left upright assembly to the top bracket/chin-up bar. Item Description Qty. Bolt, 1/2 x 3 Backing Washer Left Upright Assembly 1/2" Lock Washer 1/2" Nut Hand Tighten NOTE: To lower chin-up bar by 4.5 inches (11.4cm), use 2nd and 3rd set of holes in the upright assemblies.
- Page 16 5. Loosely assemble the angled weight horn and right upright assembly to the bottom bracket. Item Description Qty. 1/2" Nut 1/2" Lock Washer Right Upright Assembly Angled Weight Horn Bolt, 1/2 x 3 Hand Tighten NOTE: Face 7 degree angled weight horn upward; refer to arrow sticker on weigh horn.
- Page 17 Stud Sensor NOTE: Refer to manufacturer's instructions on how to properly use Stud Sensor. 8. Lift unit into place, lining up bracket slots with wall marks. Item Description Qty. Hammer Strength Wall Squat Rack Two Person Lift Page 15 of 24...
- Page 18 9. Check that rack is level. Item Description Qty. Level NOTE: Add shims under upright assembly's feet if needed. 10. Drill six top pilot holes. Drill at least two inches (5.08cm) into each stud through the six bracket slots. Item Description Qty.
- Page 19 11. Install and tighten top lag screws. Item Description Qty. Screw, 3/8-7 Hex Lag 3/8" Washer Wood Wall Studs (16" on center) Tighten lag screws flush against bracket. See Lag Screw Depth for requirements. NOTE: Do not over-tighten lag bolts. 12.
- Page 20 13. Install and tighten bottom lag screws. Item Description Qty. Screw, 3/8-7 Hex Lag 3/8" Washer Wood Wall Studs (16" on center) Tighten lag screws flush against bracket. Refer to Lag Screw Depth for requirements. NOTE: Do not over-tighten lag bolts. 14.
-
Page 21: Product Information
3. Product Information Specifications Machine Weight: 179 lbs. 81.19 kg. Size (D x W x H): in. = 20 x 63 x 88 cm = 50.8 x 160 x 223.5 Live Area (D x W): in. = 60 x 120 cm = 152.4 x 304.8 Max User Weight: 300 lbs. -
Page 22: General Exercise Information
4. General Exercise Information Intended Use The intended home use of this machine is to aid exercise and improve general physical fitness. Multiple exercises can be performed using this product. It is the responsibility of the user to ensure they understand general use and only perform recommended exercises that do not compromise the stability of the product or put users at risk. -
Page 23: Maintenance Procedures
5. Maintenance Procedures Maintenance Schedule ACTION DAILY WEEKLY MONTHLY AS NEEDED CLEAN Frame Frame INSPECT Accessories Paint Hardware Frame Clean • Frame with a soft towel. • Frames with a standard, non-abrasive, wax finish. Inspect • Accessories. Look for wear or damage on bars, plates, chains, straps and resistance bands. Do not use, replace immediately if damaged. - Page 24 ammonia or acid based cleaners. DO NOT use abrasive cleaners. DO NOT use paper towels. DO NOT apply cleaners directly to the equipment surfaces. Removal of Paint, Marking Pens, or Labels • Butyl cellosolve works well for removal of paints, marking pen inks, lipstick, etc. •...
-
Page 25: Warranty
6. Warranty What is Covered This LIFE FITNESS consumer exercise equipment product is warranted to be free of all defects in material and workmanship. Who is Covered The original purchaser or any person receiving the product as a gift from the original purchaser. Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. -
Page 26: How To Obtain Product Service
Item 5 Years 3 Years 1 Year 90 Days Frame Weight Plates/Dumbbells Barbells Kettlebells Hardware / Mechanical Barbell collars Items Not Specified How to Obtain Product Service For CUSTOMER Service within the United States and Canada: 1-800-351-3737 or customersupport@lifefitness.com Please call Monday through Friday from 7:00 a.m. to 6:00 p.m. Central Standard Time, and tell them your name, address, and serial number of your Product.
