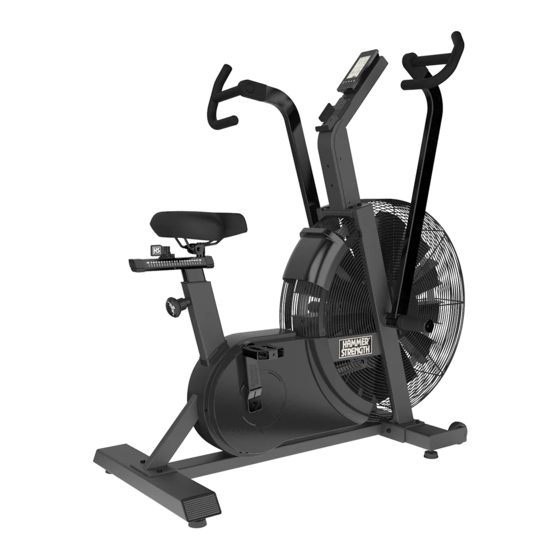

HD Air Bike
Owner's Manual
PT‑AB
1018933-0001 REV AC

Advertisement

Table of Contents
loading

Related Manuals for Hammer Strength PT-AB

Summary of Contents for Hammer Strength PT-AB

  • Page 1 HD Air Bike Owner's Manual PT‑AB 1018933-0001 REV AC...
  • Page 3 Corporate Headquarters 10601 W Belmont Ave, Franklin Park, IL 60131 • U.S.A. 847.288.3300 • FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Life Fitness Atlantic BV...
  • Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.

  • Page 5: Table Of Contents

    Polar Electro Inc. © Copyright 2022, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation.
  • Page 6 FCC Compliance Information Before using this product, it is essential to read this ENTIRE operation manual and ALL assembly instructions. It describes equipment setup and instructs members on how to use it correctly and safely. Avant d’utiliser ce produit, il est indispensable de lire ce manuel d’utilisation dans son INTÉGRALITÉ, ainsi que TOUTES les instructions d’installations.

  • Page 7: Safety Instructions

    1. Safety Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. Life Fitness Family of Brands STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year.
  • Page 8 • Never place liquids of any type directly on the unit, except in an accessory tray or holder. Containers with lids are recommended. • Do not use these products in bare feet. Always wear shoes. Wear shoes with rubber or high-traction soles. Do not use shoes with heels, leather soles, cleats or spikes.

  • Page 9: Consignes De Sécurité

    Consignes de Sécurité Veuillez lire toutes les instructions avant usage. ATTENTION : Toute modification apportée à cet équipement pourrait en annuler la garantie. AVERTISSEMENT : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Life Fitness Family of Brands Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45 ans ou plus, tabagisme, hypercholestérolémie (taux de cholestérol sanguin trop élevé), obésité, absence d'exercice...
  • Page 10 • Ne laissez jamais l’appareil sans surveillance lorsqu’il est branché. Débranchez-le systématiquement après son utilisation, et avant l’ajout et le retrait de pièces. • Utilisez cet équipement uniquement aux fins auxquelles il est destiné et de la manière décrite dans le présent manuel.

  • Page 11: Biomechanical Positioning

    Biomechanical Positioning The user shall be positioned by grasping grips of moving arms, feet on pedals, and sitting on seat. Item Description Moving arm grips Seat Pedal This product is designed to exercise the major muscle groups in the upper and lower body. WARNING: Injuries to health may result from incorrect or excessive training.

  • Page 12: Operation

    2. Operation Console Overview ITEM DATA READOUTS / BUTTONS DESCRIPTION Menu / Back Button Menu / Back button. Down Arrow Push to move cursor down in the menus. Up Arrow Push to move cursor up in the menus. Right Arrow Confirmation button.

  • Page 13: Turn The Bike On Or Off

    Turn the Bike ON or OFF Turn the console on by pedaling or moving the handles. The bike will automatically shut off when no longer in use. Settings Menu Access 1. Turn the console on by pedaling or moving the handles. 2.
  • Page 14 Set Elevation for Products Location Perform this procedure to display the correct resistance levels. The resistance is based on air densities at different elevations. This is required when installing the unit, replacing the console, or if the unit has been moved to a different elevation.

  • Page 15: Workout Screen Overview

    Workout Screen Overview The workout screens consist of 4 - 8 multiple tiles which provide various metrics during your workout. ITEM DATA DESCRIPTION Workout time Indicates the accumulated workout time. Tiles Tiles provide specific metrics. See below for an overview of the available metrics.

  • Page 16: How To Adjust Seat

    How to Adjust Seat A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees.

  • Page 17: How To Adjust Airguard

    Item Description AirGuard handle Water Bottle Holder (optional) A standard bicycle water bottle holder can be installed on the mounting bolts on console upright. Water bottle holders are not available through Hammer Strength. Item Description Mounting bolt Console upright Page 15 of 22...

  • Page 18: Service And Technical Data

    3. Service and Technical Data Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Clean Inspect Trays Console Mounting Bolts Inspect Hardware Inspect Frame Clean Inspect Seat adjustment Clean and Lubricate every two weeks Seat Post Clean Lubricate...

  • Page 19: Lubricate Seat Post Adjustment Knob

    4. Clean the seat with a mild cleaner and soft cloth. Item Description Seat Seat adjustment rail 5. Clean seat adjustment rail with a mild cleaner and soft cloth. 6. Lubricate seat adjustment rail with a small amount of lithium grease. Lubricate Seat Post Adjustment Knob Perform this task every month.

  • Page 20: Approved And Compatible Cleaners

    NOTE: When cleaning the exterior of the unit, a non-abrasive cleaner and soft cotton cloth are strongly recommended. At no time should cleaner be applied directly to any part of the equipment. Approved and Compatible Cleaners Two preferred cleaners have been approved by reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will safely and effectively remove dirt, grime and sweat from equipment.

  • Page 21: Low Battery Signal

    Low Battery Signal When the battery charge is low, an icon will appear in the lower right corner of the screen. Replace batteries. Item Description Low battery icon How to Obtain Product Service 1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and its features and workouts.

  • Page 22: Warranty

    4. Warranty What is Covered This Life Fitness Family of Brands commercial exercise equipment product is warranted to be free of all defects in material and workmanship. Who is Covered The original purchaser or any person receiving the product as a gift from the original purchaser. Warranty will be voided on subsequent transfers.

  • Page 23: Changes In Warranty Not Authorized

    Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.

  • Page 24: Specifications

    5. Specifications Specifications Designed Use EN ISO 20957-1, EN ISO 20957-5, Product Class S A, (0 – 80 RPM / 40 – 350 Watt) Maximum User Weight 350 lbs. / 159 kg Drive Type Belt Power Requirements Battery power console. Two D cell batteries. Heart Rate Wireless heart rate using an Analog signal.
