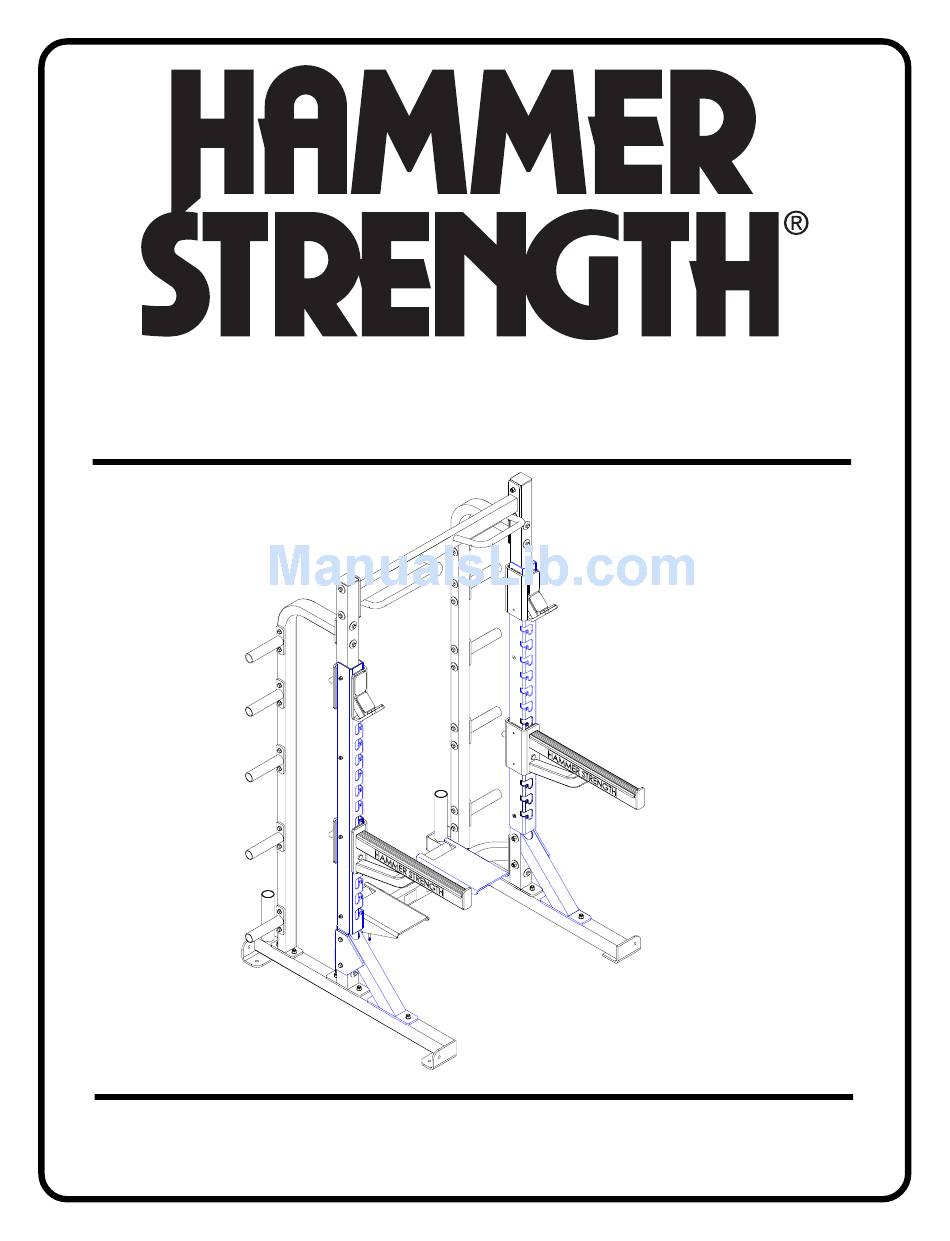

OLYMPIC HEAVY DUTY HALF RACK
(OHDHR)

ASSEMBLY INSTRUCTIONS

Part # 7671201
1
Revision:12/12/03
Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHDHR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hammer Strength OHDHR

Summary of Contents for Hammer Strength OHDHR

  • Page 1: Assembly Instructions

    OLYMPIC HEAVY DUTY HALF RACK (OHDHR) ASSEMBLY INSTRUCTIONS Part # 7671201 Revision:12/12/03 Rev. A...

  • Page 2: Parts List

    DESCRIPTION PART # LEFT UPRIGHT BASE LEA7664801 RIGHT UPRIGHT BASE LEA7665001 LEFT UPRIGHT SUPPORT LEA7665101 REAR UPRIGHT LEA7584901 RIGHT UPRIGHT SUPPORT LEA7665501 WEIGHT HORN UPRIGHT LEA7586601 LEFT BAR CATCH LEA7622401 PULL-UP SUPPORT LEA7663901 RIGHT ADJUSTMENT RACK LEA7584401 LEFT ADJUSTMENT RACK LEA7584501 WEIGHT HORN LEA7587501...
  • Page 3 16 1/2 X 1-1/2” BOLT 25 1/2 X 4-1/4” BOLT 17 3/8 X 3-3/4” FLAT HEAD BOLT 1/2” INT TOOTH LOCK WASHER 1/2” PLASTIC DOME WASHER 3/8” INT TOOTH 1/2” LOCK WASHER FLAT WASHER 3/8” 1/2” LOCK NUT LOCK NUT...
  • Page 4 FIGURE 1 STEP 1: • LOOSELY assemble the REAR UPRIGHT (4) to the LEFT UPRIGHT BASE (1) using two 1/2 X 4-1/4” BOLTS (25), two 1/2” PLASITC DOME WASHERS (21), two 1/2” INT TOOTH LOCK WASHERS (19) and two 1/2” LOCK NUTS (22) as shown in FIGURE 1. •...
  • Page 5 Use this set of holes for assembly with PLATFORM. FIGURE 2 STEP 2: • LOOSELY assemble the BOTTOM UPRIGHT SUPPORT (15) to the REAR UPRIGHTS (4) using four 1/2 X 4-1/4” BOLTS (25), four 1/2” PLASITC DOME WASHERS (21), four 1/2” INT TOOTH LOCK WASHERS (19) and four1/2” LOCK NUTS (22) as shown in FIGURE 2.
  • Page 6 FIGURE 3 25 1/2 X 4-1/4” STEP 3: • LOOSELY assemble the LEFT UPRIGHT SUPPORT (3) to the LEFT UPRIGHT BASE (1) and REAR UPRIGHT (4) using four 1/2 X 4-1/4” BOLTS (25), four 1/2” PLASITC DOME WASHERS (21), four 1/2” INT TOOTH LOCK WASHERS (19) and four 1/2” LOCK NUTS (22) as shown in FIGURE 3.
  • Page 7 FIGURE 4 1/2 X 4-1/4” 25 STEP 4: • LOOSELY assemble the PULL-UP SUPPORT (8) to the REAR UPRIGHTS (4) using four 1/2 X 4-1/4” BOLTS (25), four 1/2” PLASTIC DOME WASHERS (21), four 1/2” INT TOOTH LOCK WASHERS (19) and four 1/2” LOCK NUTS (22) as shown in FIGURE 4.
  • Page 8 FIGURE 5 1/2 X 4-1/4” 25 25 1/2 X 4-1/4” STEP 5: • LOOSELY assemble the WEIGHT HORN UPRIGHTS (6) to the LEFT & RIGHT UPRIGHT BASE (1 & 2) and REAR UPRIGHTS (4) using eight 1/2 X 4-1/4” BOLTS (25), eight 1/2” PLASTIC DOME WASHERS (21), eight 1/2” INT TOOTH LOCK WASHERS (19) and eight 1/2”...
  • Page 9 FIGURE 6 TIGHTEN BOTH SIDES! TIGHTEN BOTH SIDES! STEP 6: • Securely tighten all loose frame connections made to this point.
  • Page 10 FIGURE 7 3/8 X 3-3/4” 17 STEP 7: • LOOSELY assemble one RIGHT & one LEFT ADJUSTMENT RACK (9 & 10) to the REAR UPRIGHTS (4) as shown, using eight 3/8 X 3-3/4” FLAT HEAD BOLTS (17), eight 3/8” INT TOOTH LOCK WASHERS (20) and eight 3/8” LOCK NUTS (23). See FIG- URE 7.
  • Page 11 FIGURE 8 1/2 X 4-1/4” 25 STEP 8: • SECURELY assemble the ten WEIGHT HORNS (11) to the WEIGHT HORN UPRIGHTS (6) using twenty 1/2 X 4-1/4” BOLTS (25), twenty 1/2” INT TOOTH LOCK WASHERS (19), twenty 1/2” PLASTIC DOME WASHERS (21) and twenty 1/2” LOCK NUTS (22) as shown in FIGURE 8.
  • Page 12 FIGURE 9 16 1/2 X 1-1/2” STEP 9: • Assemble two SWIVEL SPOTTERS (24) to the BOTTOM UPRIGHT SUPPORT (15) as shown using four 1/2 X 1-1/2” BOLTS (16), four 1/2” INT TOOTH LOCK WASHERS (19), four 1/2” FLAT WASHERS (18) and four 1/2” LOCK NUTS (22). See FIGURE 9. (NOTE: Tighten connection SECURELY then back nut off 1/2 turn.)
  • Page 13 FIGURE 10 STEP 10: • Insert the LEFT BAR SUPPORT (12) into the desired slots of the LEFT ADJUSTMENT RACK (10), and allow it to drop down to lock in place. See FIGURE 10. • Repeat the above step to assemble the RIGHT BAR SUPPORT (13) to the RIGHT ADJUSTMENT RACK (9).
  • Page 14 FIGURE 11 SERIAL NUMBER STEP 11: • Insert the LEFT BAR CATCH (7) into the desired slots of the LEFT ADJUSTMENT RACK (10), and allow it to drop down to lock in place. See FIGURE 11. • Repeat the above step to assemble the RIGHT BAR CATCH (14) to the RIGHT ADJUSTMENT RACK (9). Thank you for purchasing the OLYMPIC HEAVY DUTY HALF RACK.

  • Page 15: Warranty Information

    There is a risk assumed by individuals who use this type of equipment. To minimize risk, please follow these rules: 1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately. Failure to do so may result in serious injury. 2.
