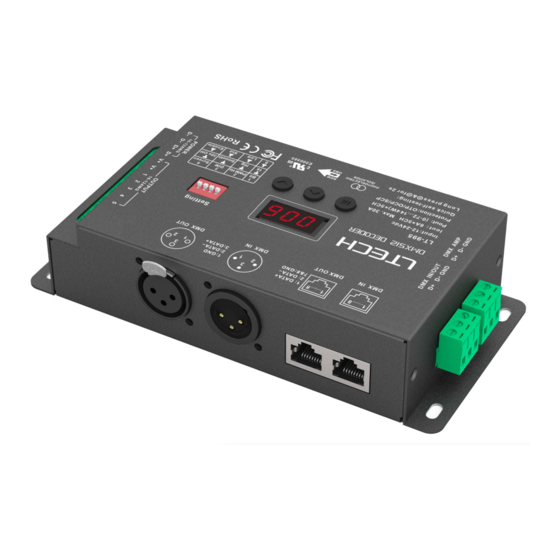

LT-995
8 bit / 16 bit
3 kinds of DMX interfaces
CHANNELS
Shortcut / Over load protection
www.ltech-led.com
www.ltech-led.com
Product Introduction:
1. Designed with 5 channels output, and Max. 6A current per channel, up to
720W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45, green terminal.
4. With
RDM remote management protocol,
the operations can be completed
via the RDM master console, such as parameters browsing & setting, DMX
address setting, equipment recognition, etc.
5.
With shortcut protection and over load protection, as well as warning
function when fault.
6. With fast self-testing function.
7. High/low
PWM
frequency
for optional
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
1
www.ltech-led.com
Technical Specs:
Model
:
LT-995
Input Signal
:
DMX512/RDM
Input Voltage
:
12 24Vdc
~
Current Load
:
6A
×
5CH Max. 30A
Output Power :
(0~72W...144W)
× 5CH Max. 720W
DMX Interface :
3-pin XLR, RJ45, green terminal
Grey Level
:
8bit (256 levels) / 16bit (65536 levels)
Protection:
Shortcut / Over load
Working Temperature :
-30℃~65℃
:
Dimensions
L169×W80×H39mm
:
L182×W91×H41mm
Package Size
Weight (G.W.)
:
550g
2
