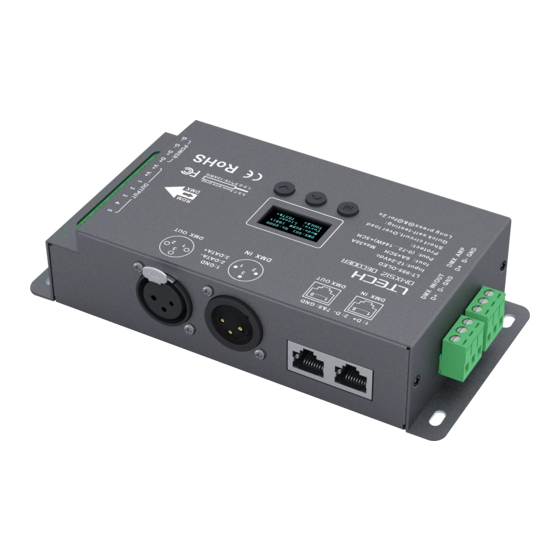

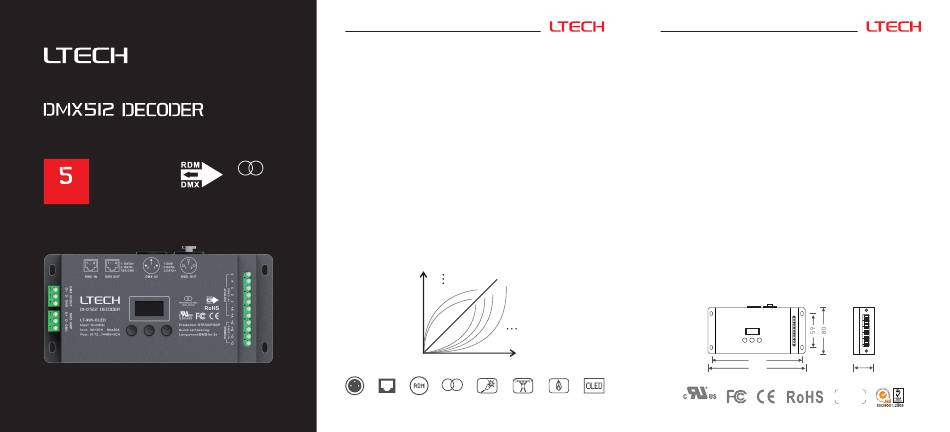

Ltech LT-995-OLED Quick Start Manual

LT-995-OLED
OLED display
8 bit / 16 bit
3 kinds of DMX interfaces
Dimming curve: 0.1~9.9
CHANNELS
Short circuit / Over current / Over-heat protection
www.ltech-led.com
www.ltech-led.com
Product Introduction
1. Designed with 5 channels output, and Max. 6A current per channel, up to
720W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 5 kinds of mode optional: single color, CT, RGB, RGBW, RGBWY.
4. Support 3 kinds of DMX ports with signal isolation function: 3-pin XLR,
RJ45 and green terminal (with signal amplifier function).
5. With RDM remote management protocol,
via the RDM master console, such as parameters browsing & setting, DMX
address setting, equipment recognition, etc.
Photoelectric 6. With firmware upgrade function.
isolation
7. With short circuit, over current and over-heat protection, as well as warning
function when fault.
8. With power-on state management and fast self-testing function.
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
10. Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
100%
Output
Brightness
3-pin XLR RJ45
the operations can be completed
1.0
0.8
6.5
3.5
Gamma Value
0.9
2.5
1.5
<1
>1
0
DMX Value
255
RDM Photoelectric Short circuit Over current Over-heat Display
isolation
Protection protection protection
1
www.ltech-led.com
Technical Specs
Model: LT-995-OLED
Input Signal: DMX512/RDM
Input Voltage: 12 24Vdc ~
Current Load : 6A × 5CH Max. 30A
Output Power: (0~72W...144W) × 5CH Max. 720W
3-pin XLR, RJ45, green terminal
DMX Interface:
Dimming/CT/RGB/RGBW/RGBWY
Control Mode:
0.1~9.9
Dimming Curve:
Grey Level: 8bit (256 levels) / 16bit (65536 levels)
Photoelectric Isolation: Yes
Protection: Short circuit / Over current / Over-heat protection,
recover automatically
-30°C~65°C
Working Temperature:
Dimensions: L169×W80×H39mm
Package Size: L182×W91×H41mm
Weight (G.W.): 550g
Unit: mm
157
169
warranty
5 years
E500585
2
39
