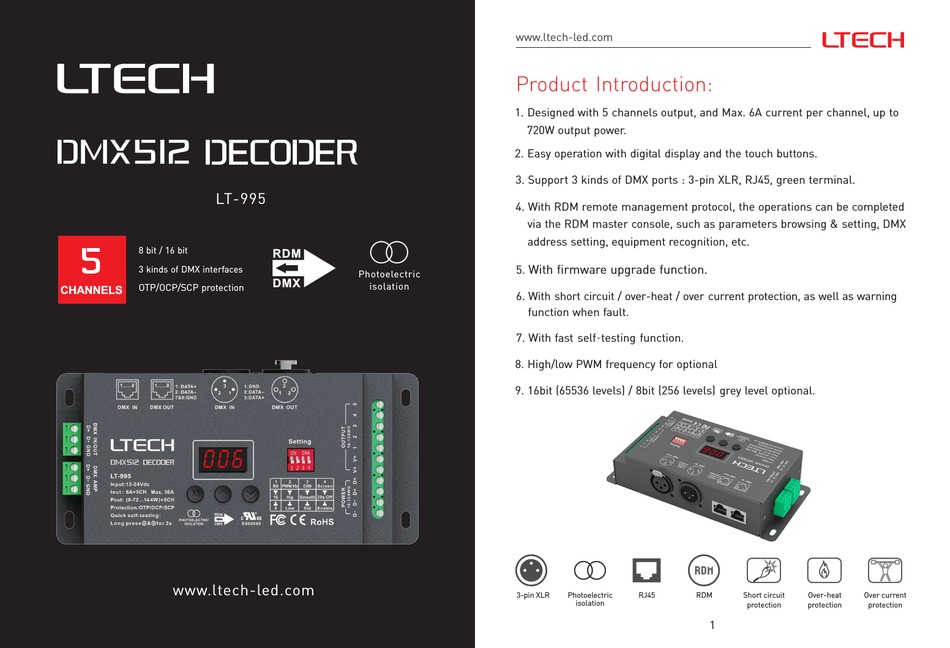

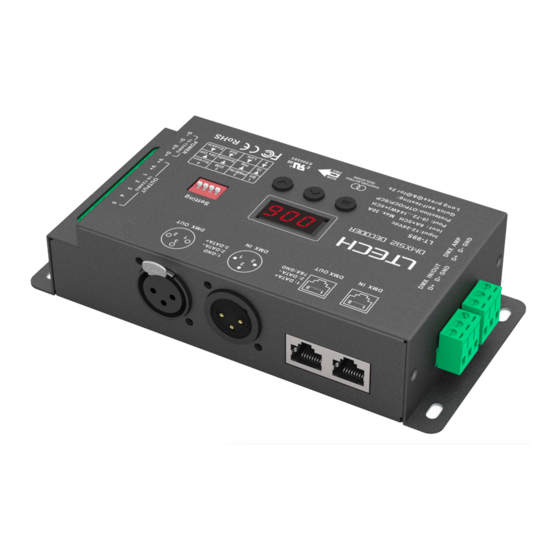

Product Introduction:
1. Designed with 5 channels output, and Max. 6A current per channel, up to
720W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45, green terminal.
4. With
via the RDM master console, such as parameters browsing & setting, DMX
address setting, equipment recognition, etc.
With firmware upgrade function.
5.
Photoelectric
isolation
6.
With short circuit / over-heat / over current protection, as well as warning
function when fault.
7. With fast self-testing function.
8. High/low
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
3-pin XLR
RDM remote management protocol,
PWM
frequency
for optional
Photoelectric
RJ45
RDM
isolation
1
the operations can be completed
Short circuit
Over-heat
Over current
protection
protection
protection
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ltech LT-995
Summary of Contents for Ltech LT-995
- Page 1 1. Designed with 5 channels output, and Max. 6A current per channel, up to 720W output power. 2. Easy operation with digital display and the touch buttons. 3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45, green terminal. LT-995 4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing &...
-
Page 2: Technical Specs
Technical Specs: Product Size: Unit: mm Model LT-995 DMX512/RDM Input Signal Input Voltage 12~24Vdc Current Load 6A × 5CH Max. 30A (0~72W...144W) × 5CH Max. 720W Output Power: DMX Interface: 3-pin XLR, RJ45, green terminal Main Component Descripition:... -
Page 3: Wiring Diagram
2 Connecting LED lights: 1. DMX console onnection DMX/RDM Signal DMX/RDM Signal RGBWY LEDs LT-995 is equipped with 3 types DMX terminals for LT-995 users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for the LED power supply rest two: RJ45 &... - Page 4 Work with RDM editor: 3. The connection diagram of 3 kinds of DMX/RDM terminals: LT-995 can work with LTECH RDM editor (Model: WiFi-RDM01) to realize changing the parameters by long-range setting, wiring diagram as below: 3-pin XLR Terminal...
- Page 5 RDM editor App interface instruction Download the App, setting LT-995 parameters (dimming range, brightness, boot fade time etc.) after well connecting the RDM editor, more details, please check the manual of WiFi-RDM01. Well installation of products first, then working with WiFi -RDM01 to realize setting parameters and firmware upgrade by App.
