Summary of Contents for Feider Machines FP225-KET

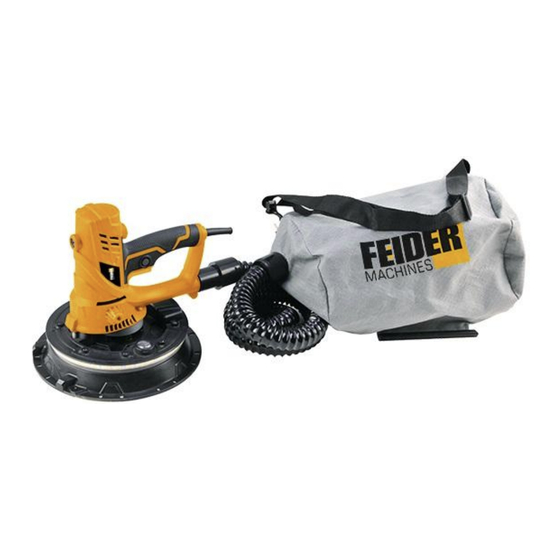

- Page 1 ORIGINAL INSTRUCTIONS >EN PLASTER SANDER FP225-KET USER GUIDE CAUTION: READ THE INSTRUCTIONS BEFORE USING THE MACHINE!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................... 3 2. THE PRODUCT..............................7 3. OPERATION................................8 4. MAINTENANCE AND STORAGE........................12 5. DISPOSAL................................13 6. DECLARATION OF CONFORMITY........................ 13 7. WARRANTY.................................14 8. PRODUCT FAILURE............................15 9. WARRANTY EXCLUSIONS..........................16... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
- Page 5 h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations.
- Page 6 1.4 ADDITIONAL SAFETY INSTRUCTIONS FOR SANDING OPERATIONS Safety Warnings Specific for Sanding Operations: a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback. 1.5 SAFETY RULES FOR DRYWALL SANDER 1.
-
Page 7: The Product
2. THE PRODUCT 2.1 DESCRIPTION 2.2 TECHNICAL SPECIFICATIONS Voltage supply 230-240V~ Power 850W Frequency 50Hz Speed Max. 2600/min Disc Diameter Ø180/225 mm Sound power level 103.8 dB(A) K= 3 dB(A) Sound pressure level 92.8 dB(A) K= 3 dB(A) Vibration Main handle: 2.953 m/s² K= 1.5 m/s² Auxiliary handle: 2.916 m/s²... -
Page 8: Operation
3. OPERATION WARNING While working with this tool, the dust caused can be dangerous to one‘s health: While working with a sander always wear eye protection and a dust mask. Do not work with material containing asbestos. Asbestos is known to cause cancer. Special caution while sanding material containing lead: All persons, that are working with the machine or entering the workspace, must wear a special mask for protection from lead colors and steam. - Page 9 4). Position the new abrasive pad on the rear disc, making sure that the center hole in the abrasive disc is in the middle of the rear abrasive disc. 5). Position the large metal washer of the retaining nut on the sander. 6).
- Page 10 ADDITIONAL RING INSTALLED When the sanding pad is below the level of plastic cover, pls add the back-up ring, to rise the height of sanding pad. SPEED ADUSTMENT: The sanding speed can be adjusted according to different conditions and sanding quality requirements. The Drywall Sander is equipped with a variable speed control.
- Page 11 TO TURN ON/OFF DRYWALL SANDER Make sure power circuit voltage is the same as shown on the specification plate on the Sander, and that the Sander switch is OFF. Connect Sander to power circuit. The Drywall Sander is equipped with a safety ON/OFF trigger switch. Push the front small trigger( Step1), and then press the bigger button(Step2) to start the machine.
-
Page 12: Maintenance And Storage
4.MAINTENANCE AND STORAGE Keep tools clean, clean up debris and dust. Often add in lubricating oil and grease (reducer, bearing) to keep the tool flexible operation. Always check the power cable, plug, switch, so that the tools in good condition. Power tools produced by the company are quality inspection Strict, if the machine is still failure occurs;... -
Page 13: Disposal
5.DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. -
Page 14: Warranty
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 15: Product Failure
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 16: Warranty Exclusions
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 17 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC...
