H1 Axial Piston Single Pumps, Size 147/165
Technical specifications

H1P 147/165 Mounting Flange Loads

Charge Pump Selection

8 | © Danfoss | May 2017
Mounting flange load
M
M

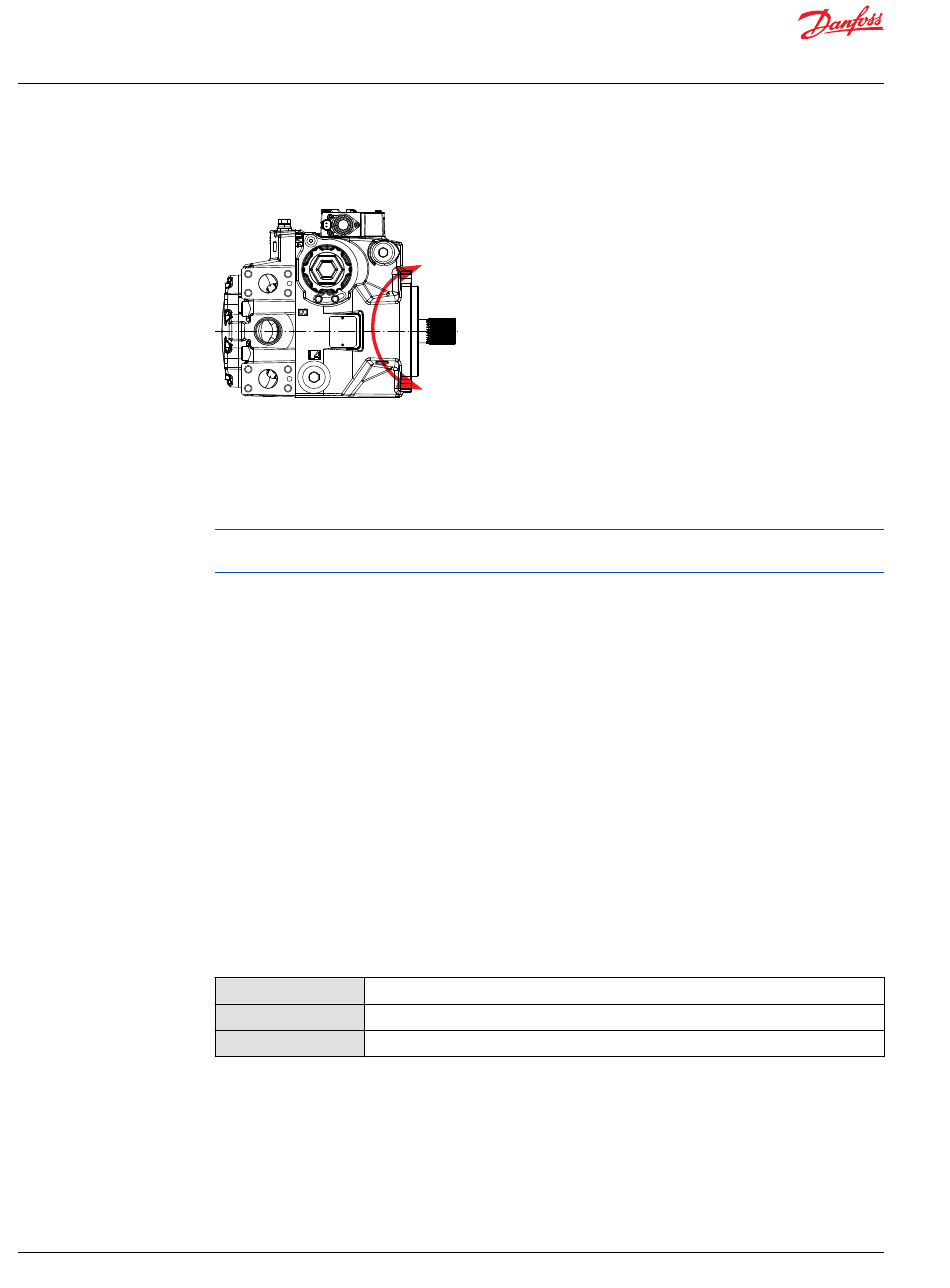

The moments shown below apply for top or side control orientation:
Rated moment
Shock load moment
For more information, see H1 Axial Piston Pumps, Basic Information, BC00000057, the section "Mounting
flange loads".
In most applications a general guideline is that the charge pump displacement should be at least 10% of
the total displacement of all components in the system. Unusual application conditions may require a
more detailed review of charge flow requirements. System features and conditions which may invalidate
the 10% guideline include (but are not limited to):
•
Continuous operation at low input speeds < 1500 min
•
High shock loading and/or long loop lines
•
High flushing flow requirements
•
Multiple low speed high torque motors
•
High input shaft speeds
Contact your Danfoss representative for application assistance if your application includes any of these
conditions.
Charge Pump Curves, Size 26/34 cm³
The curves shown below at the following conditions:
20 bar [290 psi]
Charge pressure
11 mm²/s [63 SUS]
Viscosity
80 °C [176 °F]
Temperature
R
S
P001 916
M = 6500 N•m [57 500 lbf•in]
R
M
= 16 300 N•m [ 144 000 lbf•in]
S
-1
(rpm)
