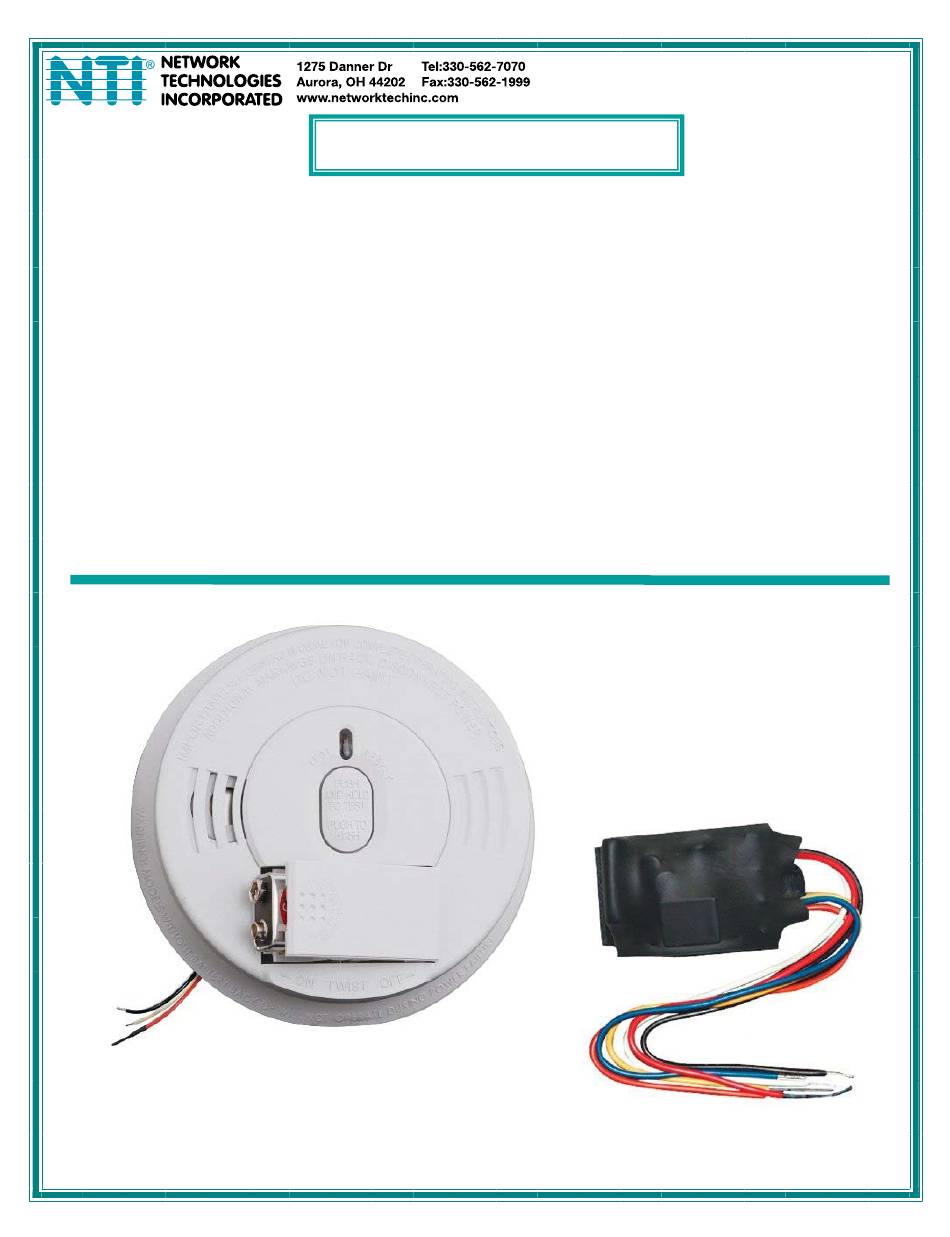

- Page 1 ® ENVIROMUX Series E-SDS-120V 120V Wire-In Smoke Detector Used in Conjunction with E-RLY-SDS120V Smoke Alarm Relay Module Installation and Operation Manual E-SDS-120V E-RLY-SDS120V (Sold Separately) MAN180 REV 7/2/20...
- Page 2 Installation with Server Environment Monitoring System The E-SDS-120V 120V Wire-in Smoke Detector and E-RLY-SDS120V relay module can be installed with connection to an E-2D/ -5D/-16D , E-MINI-LXO, E-1W(P) or E-MICRO-T(TRHP) Server Environment Monitoring System(SYSTEM). When installed in this way, the Smoke Detector will be able to cause the SYSTEM to provide alerts via email, Syslog, SNMP traps, SMS text messages and front panel LEDs indications.
- Page 3 Smoke Alarm User Guide A.C. Wire-in Single and/or Multiple Station (up to 24 Devices) Ionization Smoke Alarm with 9 Volt Battery Back Up and HUSH Control to temporar- ily silence nuisance alarms.
-
Page 4: Contents Of This Manual
This alarm detects products of combustion using the ionization technique. It contains 0.9 microcurie of Americium 241, a radioactive material (see Section 9). Distributed under U.S. NRC License No. 32-23858-01E. Manufactured in compli- ance with U.S. NRC safety criteria in 10 CFR 32.27. The purchaser is exempt from any regulatory requirements. - Page 5 • Locate an alarm in every room where someone sleeps with the door closed. The closed door may prevent an alarm not located in that room from waking the sleeper. • Smoke, heat, and combustion products rise to the ceiling and spread horizon- tally.
-
Page 6: Mobile Home Installation
MOBILE HOME INSTALLATION Modern mobile homes have been designed and built to be energy efficient. Install smoke alarms as recommended above (refer to RECOMMENDED LOCA- TIONS and FIGURES 1 and 2). In older mobile homes that are not well insulated compared to present stan- dards, extreme heat or cold can be transferred from the outside to the inside through poorly insulated walls and roof. - Page 7 (alarm and guard) has been evaluated and found suitable for that purpose. 3. INSTALLATION INSTRUCTIONS WIRING REQUIREMENTS • This smoke alarm should be installed on a U.L. listed or recognized junction box. All connections should be made by a qualified electrician and all wiring used shall be in accordance with articles 210 and 300.3(B) of the U.S.
-
Page 8: Battery Installation
• The maximum wire run distance between the first and last unit in an intercon- nected system is 1000 feet. • Figure 4 illustrates interconnection wiring. Improper connection will result in damage to the alarm, failure to operate, or a shock hazard. •... - Page 9 CAUTION: WHEN WALL MOUNTING: UNIT MUST BE MOUNTED SO THAT THE BATTERY BOX FACES DOWN! (SEE FIGURE 5). INCORRECT ORI- ENTATION OF WALL MOUNTED SMOKE ALARMS WILL DECREASE OPERA- TIONAL EFFECTIVENESS. 1. Remove the trim ring from the back of the alarm by holding the trim ring and twisting the alarm counter-clockwise.
- Page 10 a minimum of 5 seconds. (All interconnected, battery backed up, alarms should respond). CAUTION: Due to the loudness (85 decibels) of the alarm, always stand an arms length away from the unit when testing. 8. Turn on the AC power. The green Power On Indicator should be lit when the alarm is operating from AC power.
-
Page 11: Operation And Testing
trim plate, disconnect the AC quick connector and locate the small cut-out in the middle of the product label on the back of the unit. With a small screwdriv- er, or similar tool, move the slider towards the lock position as indicated by the arrow. (see Figure 9) The tamper resist feature is now active and the battery carrier can not be opened until the tamper resist fea- ture is deactivated. - Page 12 CAUTION: BEFORE USING THE ALARM HUSH FEATURE, IDENTIFY THE SOURCE OF THE SMOKE AND BE CERTAIN A SAFE CONDITION EXISTS. LED INDICATORS: This smoke alarm is equipped with red and green LED indica- tors. The green LED (when illuminated) indicates the presence of AC power. The red LED has four modes of operation: Standby Condition: The red LED will flash every 40 seconds to indicate that the smoke alarm is operating properly.
-
Page 13: Nuisance Alarms
5. NUISANCE ALARMS Smoke alarms are designed to minimize nuisance alarms. Cigarette smoke will not normally set off the alarm, unless the smoke is blown directly into the alarm. Combustion particles from cooking may set off the alarm if the alarm is located close to the cooking area. - Page 14 This smoke alarm uses a 9V carbon zinc battery (alkaline and lithium batteries may also be used). A fresh battery should last for one year under normal operat- ing conditions. PRESS OPEN INSERT This alarm has a low/missing battery monitor circuit which will cause the alarm to “chirp”...
-
Page 15: Cleaning Your Alarm
CLEANING YOUR ALARM YOUR ALARM SHOULD BE CLEANED AT LEAST ONCE A YEAR To clean your alarm, remove it from the mounting bracket as outlined in the beginning of this section. You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. - Page 16 • Smoke alarms cannot provide an alarm if smoke does not reach the alarm. Therefore, smoke alarms may not sense fires starting in chimneys, walls, on roofs, on the other side of a closed door or on a different floor. •...
-
Page 17: What To Do When The Alarm Sounds
WHAT TO DO WHEN THE ALARM SOUNDS • Alert small children in the home. • Leave immediately by your escape plan. Every second counts, so don’t waste time getting dressed or picking up valuables. • In leaving, don’t open any inside door without first feeling its surface. If hot, or if you see smoke seeping through cracks, don’t open that door! Instead, use your alternate exit. -
Page 18: Nfpa Required Protection
10. NFPA REQUIRED PROTECTION The National Fire Protection Association’s Standard 72 provides the following information: Smoke Detection – Where required by applicable laws, codes, or standards for the specified occupancy, approved single- and multiple-station smoke alarms shall be installed as follows: (1) In all sleeping rooms and guest rooms. - Page 19 CAUTION (AS REQUIRED BY THE CALIFORNIA STATE FIRE MARSHAL) “Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows. A smoke alarm installed in each separate sleeping area (in the vicinity of, but outside of the bed- rooms), and heat or smoke detectors in the living rooms, dining rooms, bedrooms, kitchens, hallways, attics, furnace rooms, closets, utility and storage rooms, base- ments and attached garages.”...
- Page 20 RELAY / POWER SUPPLY MODULE READ INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE INSTALLING. This module is for use with the E-SDS-120V Smoke Alarm with red interconnect wires. Each module is equivalent to one interconnect alarm, reduce the maximum Electrical Rating: 120V AC 60 HZ 0.08 AMP number of interconnect devices by one for each module used.
- Page 21 FIGURE 1 shows a typical installation of a relay / power supply module wired to Activating the pull station will sound the alarms and activate the relay portion of the switch on 120 volt device when the alarms sound. In this configuration the common module.
