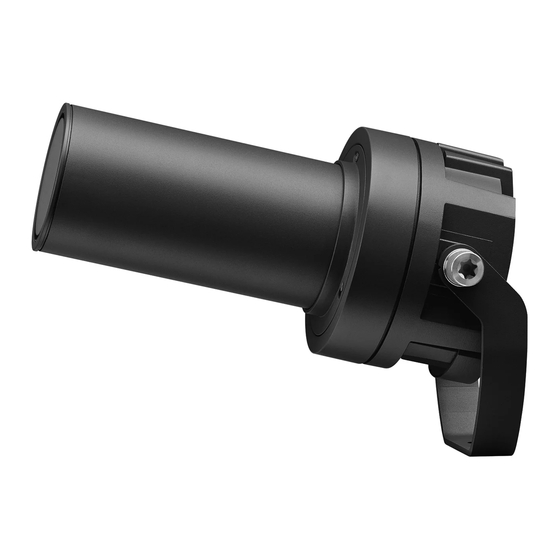

WE-EF FLC220 Installation And Maintenance Instructions Manual
Led profile projector
Hide thumbs
Also See for FLC220:
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLC220
Summary of Contents for WE-EF FLC220

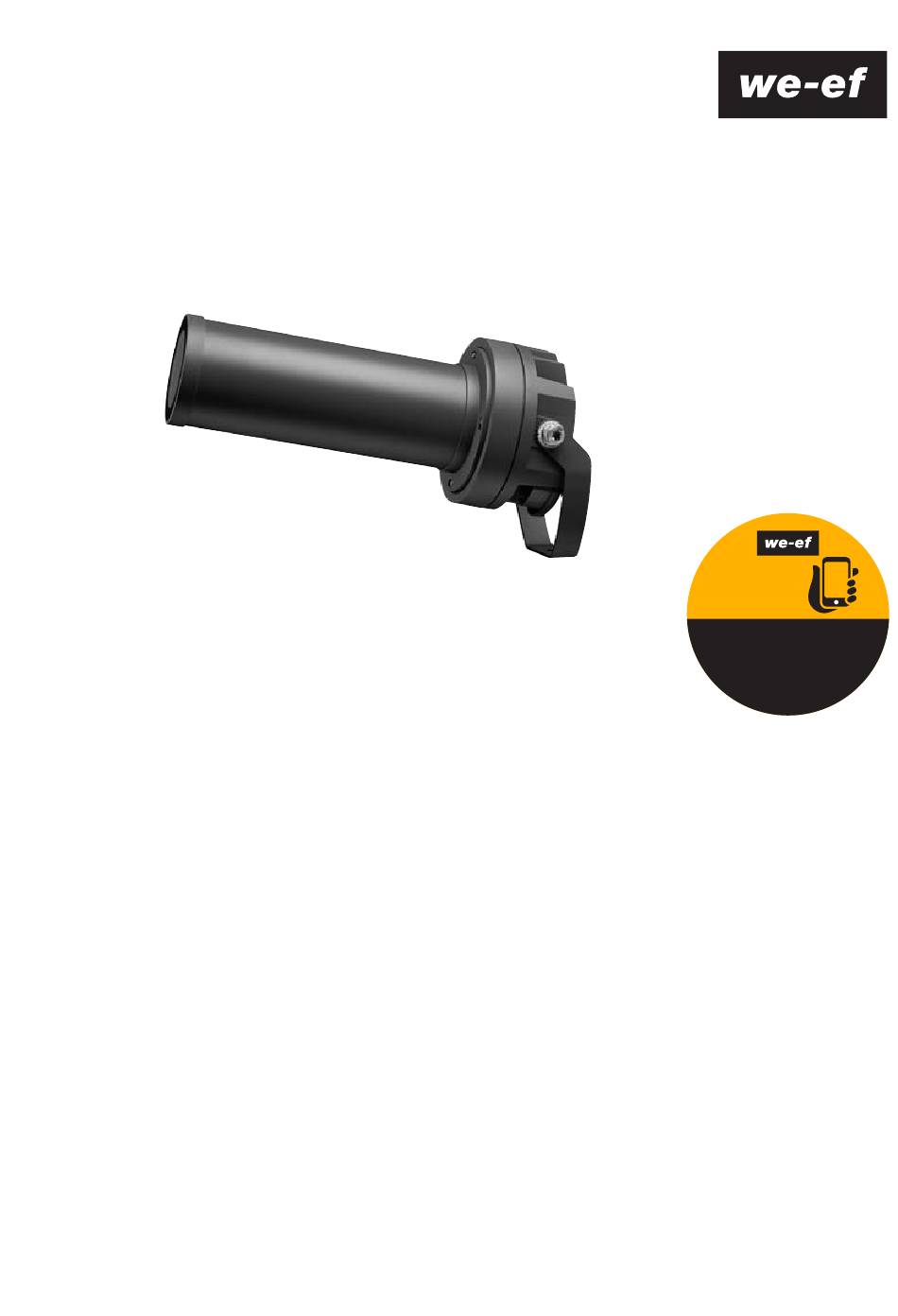

- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions for FLC220 LED Profile Projector INSTALLER HOTLINE +61 458 933 399 7am – 7pm AEST...
- Page 3 This luminaire contains electrostatic sensitive devices. Do not handle the LED PCB or LED connection leads without suitable ESD prevention methods in place. If in doubt contact WE-EF LIGHTING or an authorised Sales partner. Warranty can be void if the correct handling procedures are not observed.
-
Page 4: Installation
Weight: ......8,2 kg Gobo diameter Standard diameter outside 66 mm, inside 48 mm. WE-EF recommends an inside diameter of 38 mm. Tools required –... - Page 5 Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high- pressure cleaners. Adjusting the lenses The projector must be in operation when the lenses are being adjusted, these adjustments may not be made in the rain, snow or in the event of increased humidity.
- Page 6 Torque Screw Torque TX20 max. 2,0 Nm TX25 max. 4,0 Nm TX27 max. 6,0 Nm TX30 max. 15,0 Nm TX70 max. 100,0 Nm 45° 30° 15°...
- Page 7 All FLC200 luminaires are vented, and have a venting element. For the FLC230/240/260 the housing contains a M12 venting element (IP68). In the FLC220 the venting element is contained in the main entry gland. Under no circumstances are the glands to be removed from this luminaire. The secondary gland is supplied with a blanking element if not required...
- Page 8 Installation Procedure (Projector) 1) Slightly loosen the fasteners J; do not remove them. Turn the profile K to the left and carefully remove it by pulling it towards the front. Torque Screw Torque TX20 max. 2,0 Nm TX25 max. 4,0 Nm max.
- Page 9 Insert the gobo M (motif up to a maximum diameter of 48 mm) into the retainer N. To do so, slide the retention springs P outwards, insert the gobo M, align and slide the retention springs P back into place to secure it. WE-EF recommends an inside diameter of 38 mm for the gobo. 48 mm...
- Page 10 2.2) Frame projector – [FP] The contour of the emitted light may be set with the four shutters X by using the contour slide O in the retainer N. To do so, unscrew the fasteners W2, set the desired contour by moving the shutters X and tighten the fasteners Frame size in the projector max.
- Page 12 If any luminaire and/or accessory is subsequently modified, the persons responsible for the modification shall be considered as manufacturer. FLC220 LED_PP_010219 / 006-1541 Technical specifications are subject to change. The installation on site must comply with local and/or national © WE-EF 2019...
