8-2. Manual drain discharge from the auto drain

・
Pressurize the inside of the line filter when discharging drain.
Drain will not be discharged properly if not pressurized.
・
To discharge the auto drain manually, follow the procedure below. After discharging the drain,
rotate the cock to the opposite direction by hand to close the drain valve.
Use of a tool can damage the product.

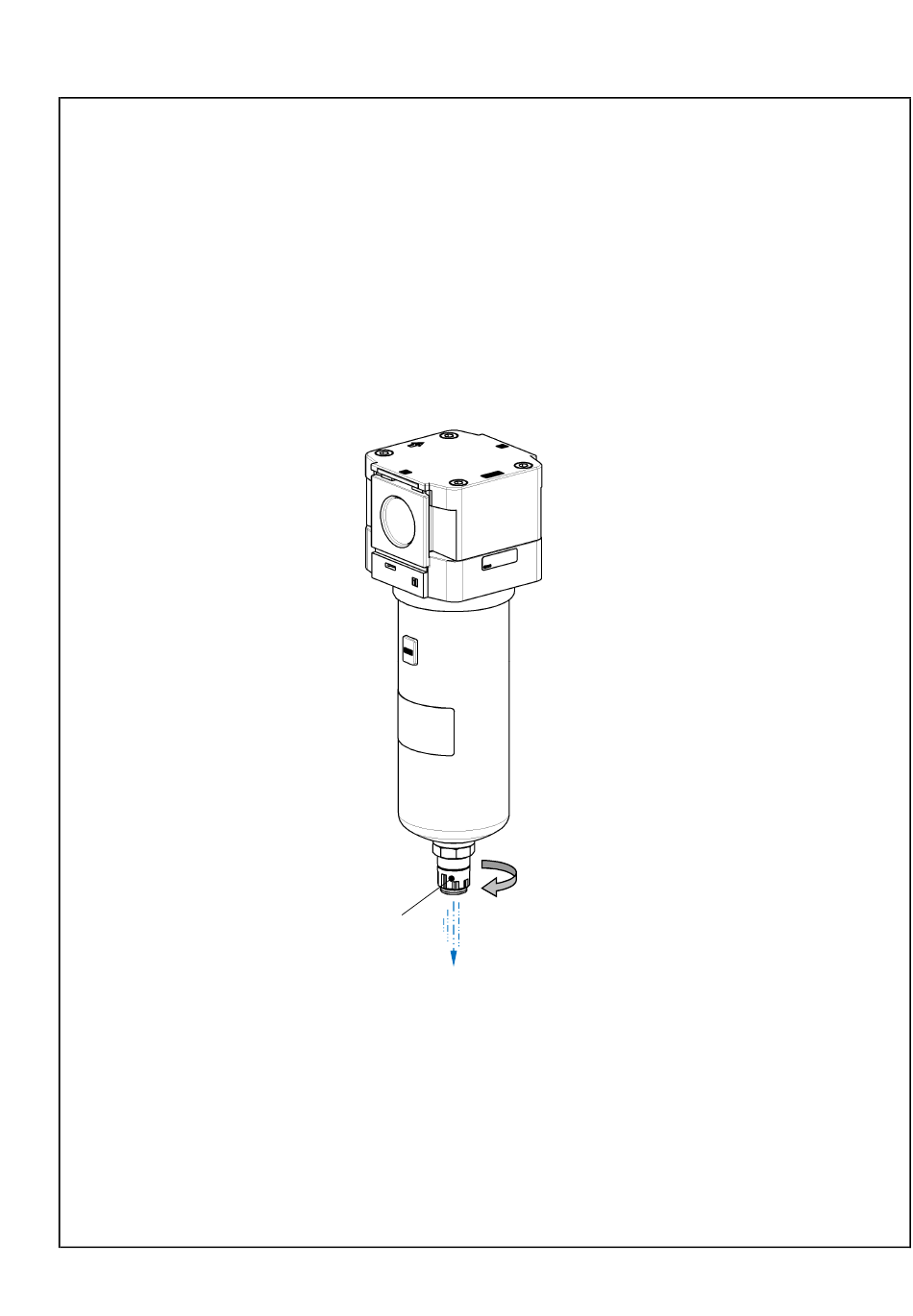

AFF50 / AFF60: Auto drain
Drain cock
-14-
OPEN
(Discharging drain)
