8-2. Manual drain discharge from the auto drain

・

Pressurize the inside of the mist separator when discharging drain.

Drain will not be discharged properly if not pressurized.

・

To discharge the auto drain manually, follow the procedure below. After discharging the drain,

rotate the cock to the opposite direction by hand to close the drain valve.

Use of a tool can damage the product.

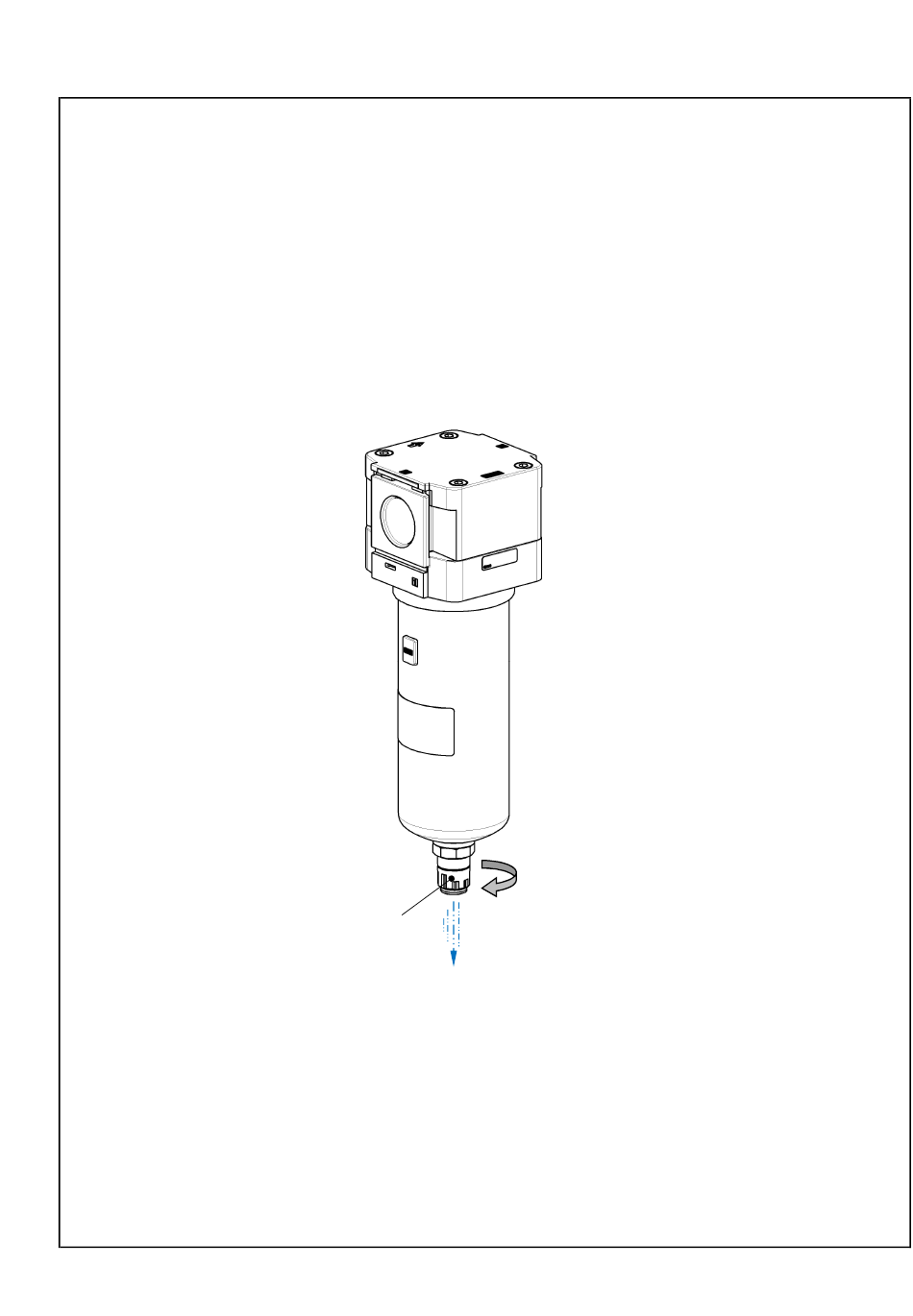

AM50 / AM60: Auto drain

Drain cock

-14-

OPEN

(Discharging drain)
