MotionProtect S Jeweler Benutzerhandbuch

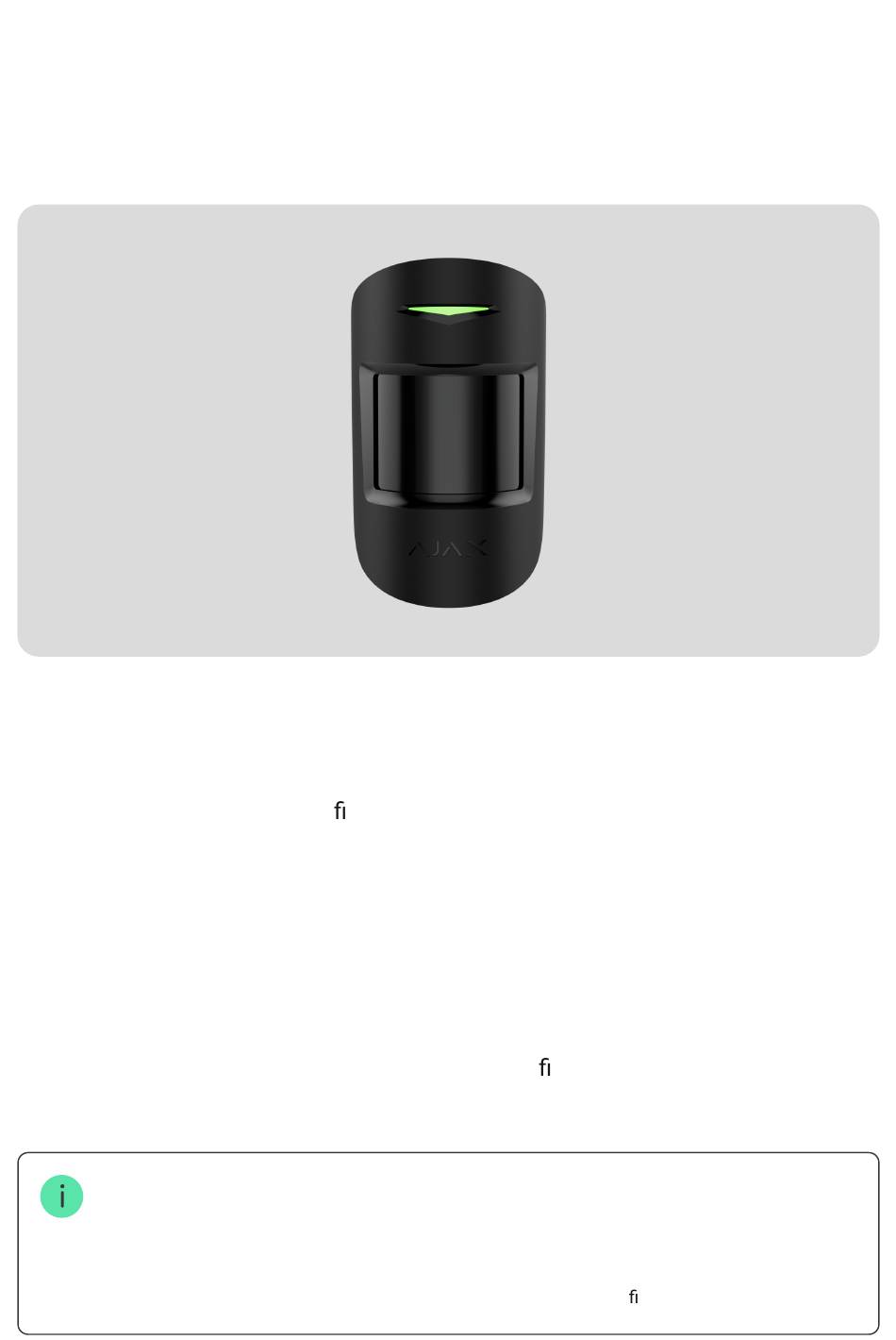

MotionProtect S Jeweler ist ein kabelloser Bewegungsmelder. Erkennt

Bewegungen in einer Entfernung von bis zu 12* Metern. Ignoriert Haustiere bei

korrekter Installation und Kon guration. Das Gerät ist nur für den Innenbereich

bestimmt.

MotionProtect S kommuniziert mit dem Hub über ein verschlüsseltes Jeweler-

Funkprotokoll. Die Kommunikationsreichweite ohne Hindernisse beträgt bis zu

1.700 Meter.

* — Für INCERT-Konformität 10 Meter (hohe Emp ndlichkeit)

Diese Produktlinie wird für Projekte entwickelt. Nur akkreditierte Ajax Systems-Partner

können Superior-Produkte installieren und verwalten.

Die Produktlinien Superior, Fibra und Baseline sind untereinander kompatibel. Dies

eröffnet zahlreiche Möglichkeiten für den Aufbau beliebig kon gurierter Systeme.

Aktualisiert1. Juli 2023

Need help?

Do you have a question about the MotionProtect S and is the answer not in the manual?

Questions and answers

Summary of Contents for AJAX MotionProtect S

Page 1 Bewegungen in einer Entfernung von bis zu 12* Metern. Ignoriert Haustiere bei korrekter Installation und Kon guration. Das Gerät ist nur für den Innenbereich bestimmt. MotionProtect S kommuniziert mit dem Hub über ein verschlüsseltes Jeweler- Funkprotokoll. Die Kommunikationsreichweite ohne Hindernisse beträgt bis zu 1.700 Meter.
Page 2 7. Device switch. 8. QR code with the device ID. It is used to pair the device with an Ajax hub. Compatible hubs and range extenders An Ajax hub with the rmware OS Malevich 2.16...
Page 3 Operating Principle 00:00 00:12 MotionProtect S is a wireless motion detector. It can identify intrusions by detecting moving objects with temperatures close to the temperature of the human body. When an armed detector identi es motion, it instantly sends an alarm to the hub, activating the sirens connected to the system, triggering scenarios, and notifying users and the security company.
Page 4 How Ajax noti es users of alerts More about Ajax motion detectors Pet immunity When properly installed and con gured, MotionProtect S does not react to pets weighing up to 20 kg and below 50 cm in height. To install con gure detector, follow our recommendations.
Page 5 MotionProtect S is incompatible with Hub, third-party security central units, and ocBridge Plus and uartBridge integration modules. To connect MotionProtect S to the hub, the detector must be located at the same secured facility as the system (within the range of the hub radio network).
Page 6 The hub and the device operating at different radio frequencies are incompatible. The radio-frequency range of the device may vary by region. We recommend purchasing and using Ajax devices in the same region. You can check the range of operating radio frequencies with the...
Page 7 The detector connected to the hub will appear in the list of hub devices in the Ajax app. Updating the statuses of devices in the list depends on the Jeweller or Jeweller/Fibra settings; the default value is 36 seconds.
Page 8 The detector enclosure is open (tamper is triggered). No connection with the hub or radio signal range extender via Jeweller. The detector battery is low. Icons The icons display some MotionProtect S states. To access them: 1. Sign in to the Ajax app 2. Select the hub.
Page 9 Delay When Entering and/or Leaving enabled. Learn more MotionProtect S will be armed when Night Mode is enabled. Learn more MotionProtect S has detected motion. The icon is displayed when the detector is armed. MotionProtect S is permanently deactivated. Learn more MotionProtect S has tamper triggering events permanently deactivated.
Page 10 Battery level of the device. Displayed as a percentage. When the batteries are low, the Ajax apps and the security company will receive appropriate noti cations. After sending a low battery noti cation, the detector can work for up to 2 Battery Charge months.
Page 11 The status of the detector tamper that responds to detachment or opening of the device enclosure: Open — the detector was removed from the SmartBracket, or its integrity was compromised. Check the device. Closed — the detector is installed on the SmartBracket mounting panel.
Page 12 Shows the status of the device one-time deactivation setting: No — the device operates in the normal mode. Entirely — the detector is entirely excluded from the operation of the system for a time the armed mode is active. The device does One-Time Deactivation not execute system commands and does not report alarms or other events.
Page 13 Device № Number of the device loop (zone). Settings To change MotionProtect S settings in the PRO Ajax apps: 1. Go to the Devices tab. 2. Select MotionProtect S from the list. 3. Go to Settings by clicking on the gear icon 4.
Page 14 12 Cyrillic characters or up to 24 Latin characters. Selecting the virtual room to which the MotionProtect S is assigned. The room’s name Room is displayed in the SMS text and noti cations in the event feed. When the option is disabled, the LED indicator Alarm LED indication of the detector doesn’t notify about alarms or...
Page 15 raise the alarm even if triggered until the countdown ends. Follower — the detector inherits the delays from Entry/Exit detectors. However, when the Follower is triggered individually, it immediately raises the alarm. Selecting delay time when entering: 5 to 120 seconds.
Page 16 Learn more Switches the detector to the signal attenuation test mode. Signal Attenuation Test Learn more Opens the MotionProtect S user manual in the User Guide Ajax app. Allows the user to disable the device without removing it from the system.
Page 17 No — the device operates in normal mode and transmits all events. Entirely — the device is entirely excluded from the operation of the system for a time the armed mode is active. The device does not execute system commands and does not report alarms or other events.
Page 18 Functionality testing The Ajax system offers several tests to help select the device installation place. Tests do not start immediately. However, the waiting time does not exceed the duration of one “hub—device” polling interval. The polling interval can be checked and con gured at hub settings (Hub →...
Page 19 When choosing where to place MotionProtect S, consider the parameters that affect its operation: Motion detection zone. Jeweller radio signal strength. Distance between the detector and the hub or radio signal range extender. Presence of obstacles for radio signal passage: walls, inter oor ceilings, large objects located in the room.
Page 20 6. In places where objects and structures may block the detector’s view. For example, behind a ower or a column. In this case, the view will be limited, and it will be more di cult for MotionProtect S to detect motion. 7. In places where glass structures may obstruct the detector’s view.
Page 21 10. In places with low or unstable signal strength. Installation Before installing MotionProtect S, ensure that you have selected the optimal location that complies with the requirements of this manual. To mount a detector: 1.
Page 22 5. Run the Detection zone test . To check the motion detector, walk around the premises while observing the LED and determine the detection zone of the detector. The maximum range of motion detection is 12 meters*. If the detector did not respond to movement during the test in 5 out of 5 cases, relocate the device.
Page 23 Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical di culties can be resolved remotely.
