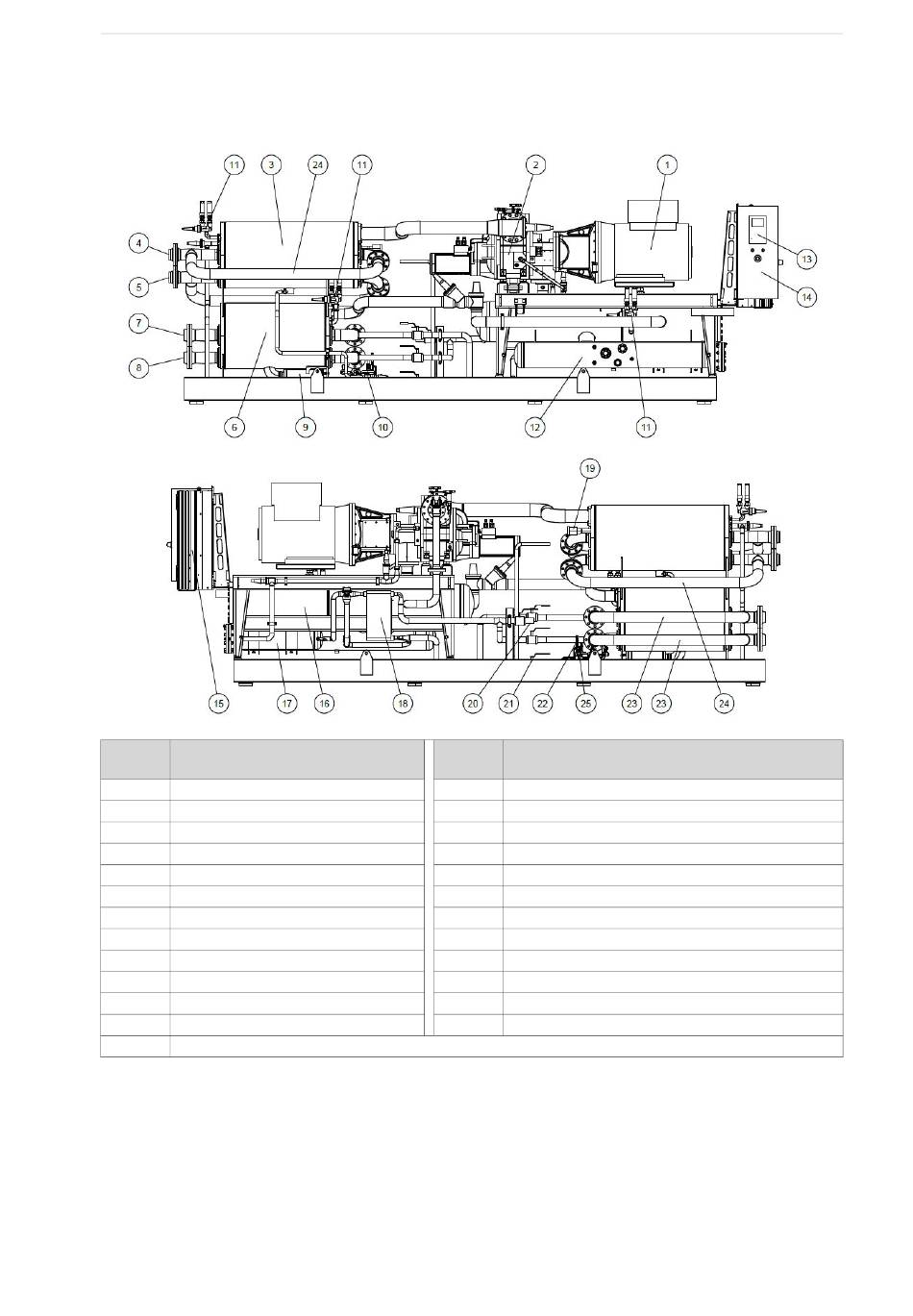

Components on a ComPAC (water-cooled condenser)

Pos.
Component
no.
1 Motor
2 Compressor
3
Evaporator/liquid separator
4
Outlet evaporator
5 Inlet evaporator
6 Condenser
7
Outlet condenser
8 Inlet condenser
9 Expansion valve
10 Oil recovery system
11
Safety valve
12 Oil reservoir
13 Unisab III controller (built into the electrical panel - optional)
Pos.
no.
14 Electrical panel
15 VSD panel
16
Oil separator
17
Oil filter
18 Oil cooler
19 High level alarm
20
Heat recovery inlet (optional)
21 Heat recovery outlet (optional)
22 R717 charge valve
23 Condenser manifold (optional)
24
Evaporator manifold (optional)
25 Oil recovery system (from evaporator)
