IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
G.
Top
1 pc.
L.
Side Panel
1 pc.
Hardware List
Plug
4 pcs. (+1 extra)
Leveler
Hex Wrench
4 pcs.
1 pc.
Carton 20 05520 0761 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
20 05520 0762

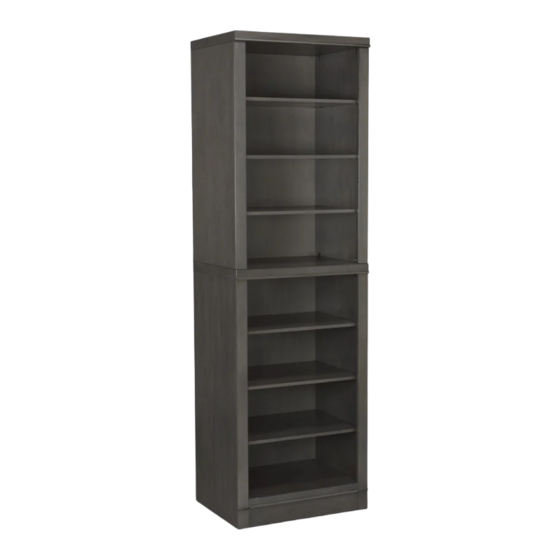

Closet Wall Shelf Unit
M.
Side Panel
1 pc.
Cam Lock Screw
6 pcs. (+1 extra)
Cam Lock
6 pcs. (+2 extra)
H.
Front Rail
1 pc.
N.
Back Panel
1 pc.
M3x15
Wood Screw for
Bracket
8 pcs. (+1 extra)
M3x19
Wood Screw for
Leveler
16 pcs. (+1 extra)
J.
Plinth
1 pc.
K.
Bottom
1 pc.
B.
Shelf
3 pcs.
Adjustable Pin
24 pcs. (+1 extra)
M3x25
Wood Screw (long)
Bracket
4 pcs. (+1 extra)
2 pcs.
Advertisement
Related Manuals for Home Styles Closet Wall Shelf Unit 20 05520 0762
Summary of Contents for Home Styles Closet Wall Shelf Unit 20 05520 0762
- Page 1 20 05520 0762 Closet Wall Shelf Unit IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/7 STEP 3 Attach unit to Side Panel (M) with Cam Locks, then flip Locks. (See Figure 4) Attach Back Panel (N) to unit, then flip Locks. Attach Front Rails (H) to unit with Wood Screw (long). Attach Side Panel (L) to unit with Cam Locks and Wood Screw (long), then flip Locks.
- Page 4 Assembly Instructions 4/7 Cam Lock STEP 6 Attach Back Panel (F) to Side Panel (D), then flip Locks. Attach Front Rail (C) to unit with Cam Lock. Attach Side Panel (E) to unit with Cam Lock, then flip Locks. Lock STEP 7 Attach Top (A) to unit, then flip Locks.
- Page 5 Assembly Instructions 5/7 STEP 8 Place top unit onto base unit, then flip Locks. Adjustable Pin Lock Adjustable Pin Plug STEP 9 Place unit at desired location. Note: If assembling multiple Closet Wall Units together, place all units at desired location. Figure 6 Level unit(s) by adjusting the adjustable levelers on bottom of unit(s).
-
Page 6: Hardware List
Assembly Instructions 6/7 IMPORTANT To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 10 Place unit at desired location. Anchor in wall Bracket Wall Screw Pre-drilled hole Drill a 3/8” hole in wall in-line with at top of unit on wall 3/8”... - Page 7 Assembly Instructions 7/7 Wood Screw for Bracket Bracket Figure 9 STEP 11 Note: If assembling multiple Closet Wall Units together, complete Step 11. Attach tops of units together with Brackets and Wood Screws for Brackets into pre-drilled holes. (See Figure 9) Return to and complete Step 10.
- Page 8 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
