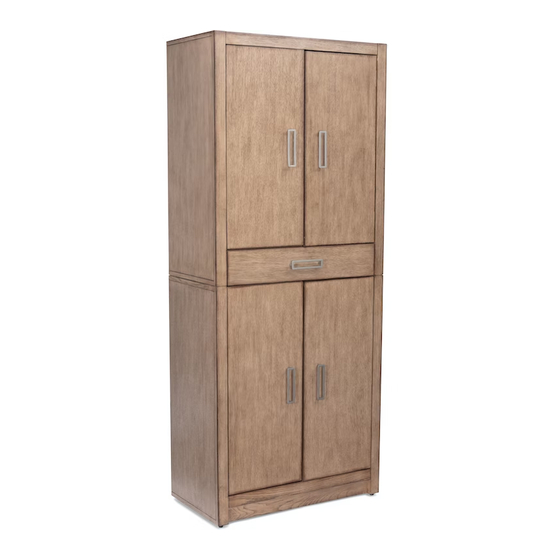

Home Styles 20 05506 0692 Assembly Instructions Manual

Pantry
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

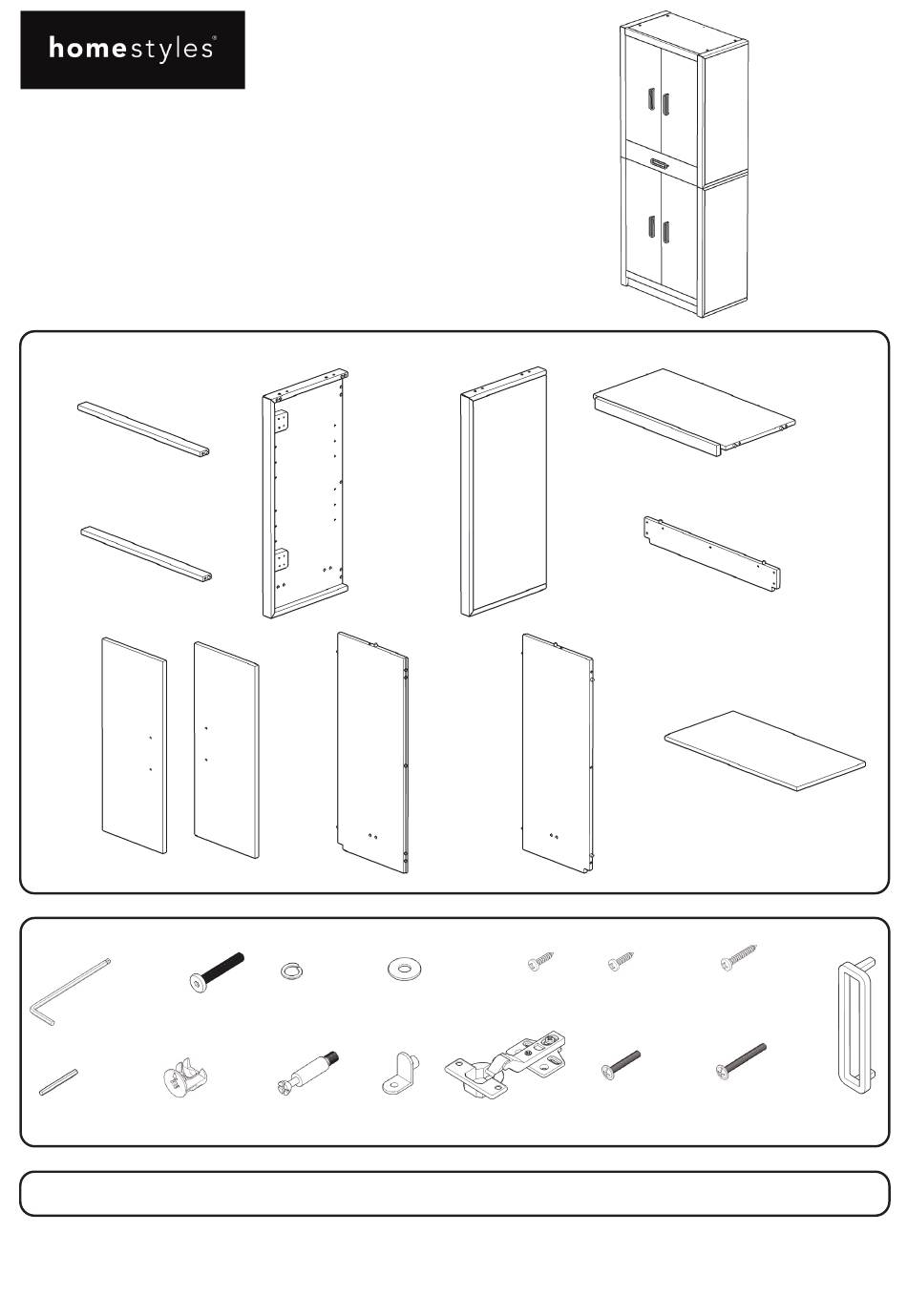

Part List
K.
Front Rail
1 pc.
L.
Back Rail
1 pc.
Q.
Door
1 pc.
Hardware List
M x
6 35
Hex Wrench
Head Cap Bolt
1 pc.
4 pcs. (+1 extra)
Small
Hex Wrench
Cam Lock
1 pc.
44 pcs. (+4 extra)
Carton 20 05506 0691 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05506 0692
Pantry
M.
Side Panel
1 pc.
R.
Door
1 pc.
Spring Washer
Flat Washer
4 pcs. (+1 extra)
4 pcs. (+1 extra)
Cam Lock Screw
Adjustable Pin
44 pcs. (+2 extra)
16 pcs. (+1 extra)
N.
Side Panel
1 pc.
S.
Back Panel
1 pc.
M
3.5
x1
5
Wood Screw
M
3.5 15
for Hinge
Wood Screw (short)
48 pcs. (+1 extra)
6 pcs. (+1 extra)
M4x25
Hinge
Machine Screw
8 pcs.
8 pcs.
888-680-7460, 877-831-0319
T.
Back Panel
1 pc.
M
3.5 25
x
x
Wood Screw (long)
15 pcs. (+1 extra)
M4x35
Machine Screw (long)
2 pcs.
O.
Bottom
1 pc.
P.
Plinth
1 pc.
H.
Shelf
2 pcs.
Handle
5 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 05506 0692 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Styles 20 05506 0692

Summary of Contents for Home Styles 20 05506 0692

  • Page 1 8 pcs. 8 pcs. 2 pcs. 5 pcs. Carton 20 05506 0691 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/13 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws unit each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/13 STEP 2 Attach Back Panel (F) to Back Panel (G) with Cam Locks. (See Figure 2) Cam Lock Figure 2 Cam Lock STEP 3 Attach Top (A) and Bottom (I) to unit with Cam Locks.
  • Page 4 Assembly Instructions 4/13 Cam Lock STEP 4 Attach Side Panels (B) and (C) to unit with Cam Locks. STEP 5 Turn unit to its upright position.
  • Page 5 Assembly Instructions 5/13 STEP 6 Insert Cam Lock Screws into pre-drilled holes in Back Rail (L), Side Panels (M), (N), and Back Panels (S), (T), then tighten. Cam Lock Screw...
  • Page 6 Assembly Instructions 6/13 STEP 7 Wood Screw (long) Attach Plinth (P) to Bottom (O) with Wood Screws (long), then tighten. Cam Lock STEP 8 Attach Back Panel (S) to Back Panel (T) with Cam Locks. Cam Lock STEP 9 Attach unit from Step 7 to unit from Step 8 with Cam Locks.
  • Page 7 Assembly Instructions 7/13 Wood Screw (long) Cam Lock STEP 10 Attach Side Panels (M), (N) and Front Rail (K) to unit with Cam Locks and Wood Screws (long). STEP 11 Turn unit to its upright position.

  • Page 8: Part List

    Assembly Instructions 8/13 Drawer (J) Wood Screw (long) Bottom STEP 12 Attach Drawer Front (J1) and Drawer Back (J2) to Drawer Side (J3) with Wood Screws (long). Attach Drawer Side (J4) to unit Roller at back with Wood Screws (long). Wood Screw (short) STEP 13 Slide Drawer Bottom (J5) into groove.
  • Page 9 Assembly Instructions 9/13 Flat Washer Spring Washer Head Cap Bolt STEP 15 Figure 3 Attach unit from Step 5 onto unit from Step 11 with Flat Washers, Spring Washers and Head Cap Bolts, then tighten. (See Figure 3) Slide Drawer (J) into position.
  • Page 10 Assembly Instructions 10/13 Wood Screw for Hinge Hinge STEP 16 Attach Hinges to Doors (D), (E), (Q) and (R) with Wood Screws for Hinge into pre-drilled holes, then tighten. (See Figure 4) Figure 4...
  • Page 11 Assembly Instructions 11/13 Wood Screw for Hinge Machine Screw Handle Adjustable Pin STEP 17 Attach Doors (D), (E), (Q) and (R) to unit with Wood Screws for Hinge. (See Figure 5) Figure 5 Attach Handles to Doors (D), (E), (Q) and (R) with Machine Screws. Insert Adjustable Pins into side panels at desired level.
  • Page 12 Assembly Instructions 12/13 Down Figure 7 Left Right Figure 8 Back Front Figure 9 STEP 18 If needed, adjust doors up or down by removing the front Wood Screws for Hinge and loosening slightly the back Wood Screws for Hinge from side panel, adjusting doors up or down and reinstalling screws.

  • Page 13: Hardware List

    Assembly Instructions 13/13 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 19 Drill a 3/8” hole in wall in-line with Anchor in wall Wall Screw Pre-drilled hole Bracket the pre-drilled hole at top of unit.
  • Page 14 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
