IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Key Wrench
1 pc.
Carton 20 05525 0301 is also needed for assembly.
Tool(s) required for assembly: Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05525 0302

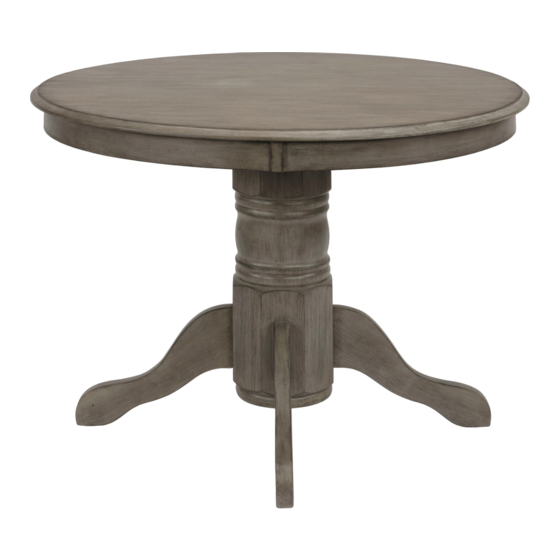

Dining Table
A.
Top
1 pc.
Hex Wrench
Nut
1 pc.
12 pcs. (+1 extra)
M6x40
Small Hex Wrench
Head Cap Bolt
1 pc.
4 pcs. (+1 extra)
B.
Panel
1 pc.
D.
Leg
4 pcs.
Spring Washer (large)
12 pcs. (+1 extra)
Spring Washer (small)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
Flat Washer (large)
12 pcs. (+1 extra)
Flat Washer (small)
4 pcs. (+1 extra)
Advertisement
Table of Contents
Related Manuals for Home Styles 20 05525 0302
Summary of Contents for Home Styles 20 05525 0302
- Page 1 Spring Washer (small) 1 pc. 1 pc. 4 pcs. (+1 extra) 4 pcs. (+1 extra) 4 pcs. (+1 extra) Carton 20 05525 0301 is also needed for assembly. Tool(s) required for assembly: Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/3 STEP 3 Place Top (A) upside down on a soft cloth. Attach unit to Top (A) with Flat Washers (small), Spring Washers (small) and Head Cap Bolts. (See Figure 3) Head Cap Bolt Spring Washer (small) Flat Washer (small) Figure 3 STEP 4 Turn unit over to its upright position.
- Page 4 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
