IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Cushion
1 pc.
D.
Front Rail
1 pc.
E.
Front Rail
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05520 0027

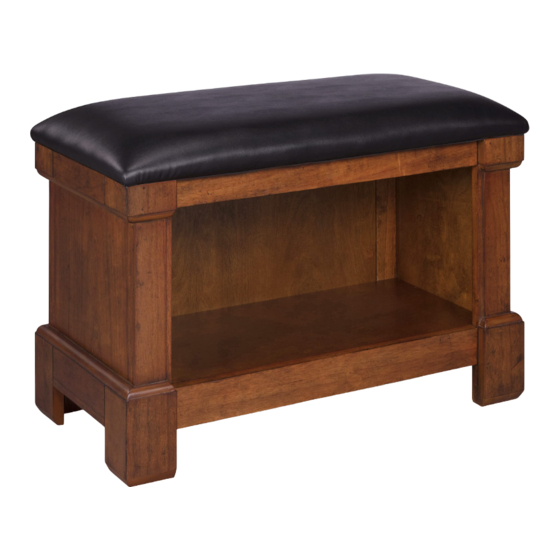

Storage Bench
B.
Side Panel
1 Pc.
F.
Base
1 Pc.
Cam Lock
10 pcs. (+2 extra)
Cam Lock Screw
10 pcs. (+1 extra)
M3.5x32
Wood Screw
6 pcs.(+1 extra)
M6x32
Head Cap Bolt
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Side Panel
1 Pc.
G.
Back Panel
1 Pc.
Spring Washer
4 pcs. (+1 extra )
Flat Washer
4 pcs. (+1 extra )
Advertisement
Table of Contents
Related Manuals for Home Styles 20 05520 0027
Summary of Contents for Home Styles 20 05520 0027
- Page 1 M6x32 Hex Wrench Cam Lock Screw Head Cap Bolt Flat Washer 1 pc. 10 pcs. (+1 extra) 4 pcs. (+1 extra) 4 pcs. (+1 extra ) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/4 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/4 STEP 3 Attach unit and Front Rail (D) to Side Panel (C) with Cam Locks, Head Cap Bolts, Spring Washers and Flat Washers. (See Figure 3) Head Cap Bolt Spring Washer Flat Washer Cam Lock Figure 3 Cam Lock STEP 4 Attach Side Panel (B) to unit...
- Page 4 Assembly Instructions 4/4 Wood Screw Figure 4 STEP 5 Place Cushion (A) upside down on a soft cloth. Attach unit to Cushion (A) with Wood Screws. (See Figure 4) STEP 6 Turn unit over to it’s upright position.
- Page 5 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
