IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
C.
Side Panel
1 pc.
G.
Back Panel
1 pc.
J.
Shelf
1 pc.
Hardware List
Hex Wrench
Cam Lock Screw
1 pc.
8 pcs. (+1 extra)
Small Hex Wrench
Cam Lock
1 pc.
8 pcs. (+2 extra)
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05507 0009

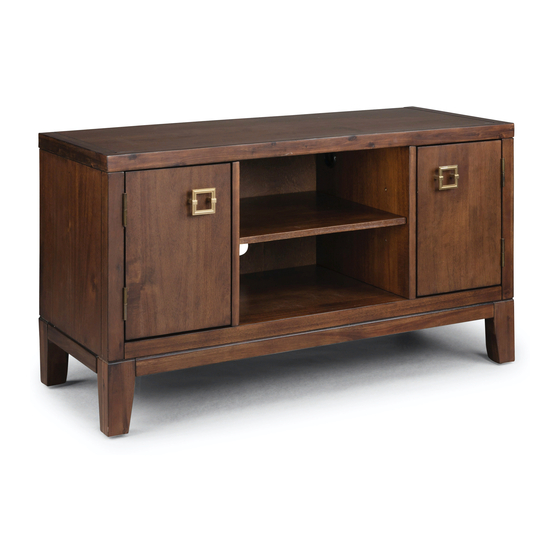

Entertainment Stand
D.
Side Panel
1 pc.
M3.5x15
Washer Screw
6 pcs. (+1 extra)
Flat Washer
16 pcs. (+1 extra)
B.
Bottom
1 pc.
E.
Middle Panel
1 pc.
H.
Door
1 pc.
K.
Shelf
2 pcs.
M6x40
Head Cap Bolt (long)
8 pcs. (+1 extra)
Spring Washer
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
F.
Middle Panel
1 pc.
I.
Door
1 pc.
L.
Foot
4 pcs.
M6x30
Head Cap Bolt
Handle
8 pcs. (+1 extra)
2 pcs.
M4x25
Adjustable Pin
Machine Screw
12 pcs. (+1 extra)
4 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 20 05507 0009
Summary of Contents for Home Styles 20 05507 0009
- Page 1 12 pcs. (+1 extra) 1 pc. 8 pcs. (+2 extra) 16 pcs. (+1 extra) 16 pcs. (+1 extra) 4 pcs. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/5 STEP 3 Turn unit over to its’ upright position. Attach Side Panels (C) and (D) to unit with Flat Washers, Spring Washers and Head Cap Bolts. (See Figure 3) Flat Washer Spring Washer Head Cap Bolt Slide Back Panel (G) into position.
- Page 4 Assembly Instructions 4/5 STEP 5 Washer Screw Attach Top (A) to unit with Flat Washers, Spring Washers, Head Cap Bolts and Cam Locks. Insert Washer Screws into pre-drilled holes in unit, then tighten. Attach Doors (H) and (I) to unit by sliding door hinges into side panel hinges.
-
Page 5: Hardware List
Assembly Instructions 5/5 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 7 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”... - Page 6 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
