IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
E.
Side Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05523 0088

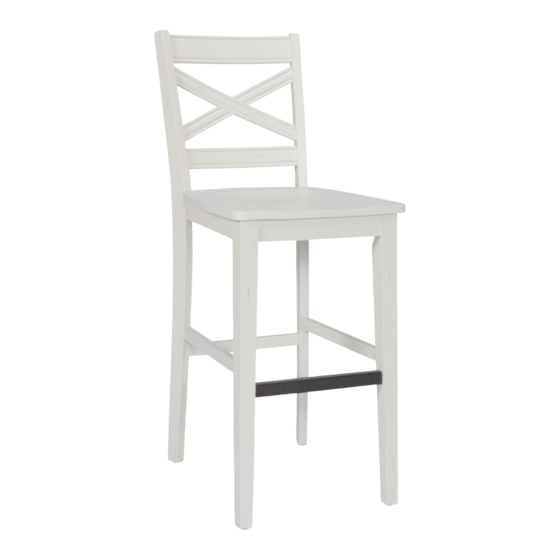

Bar Stool
F.
Side Stretcher
1 pc.
M3.5x40
Wood Screw
6 pcs. (+1 extra)
M6x35
Head Cap Bolt (short)
3 pcs. (+1 extra)
B.
C.
Leg
Leg
1 pc.
1 pc.
G.
Front Stretcher
1 pc.
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
Back Frame
1 pc.
Flat Washer
11 pcs. (+1 extra)
Spring Washer
11 pcs. (+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 20 05523 0088
Summary of Contents for Home Styles 20 05523 0088
- Page 1 Small Wrench Head Cap Bolt (short) Spring Washer Head Cap Bolt (long) 1 pc. 3 pcs. (+1 extra) 4 pcs. (+1 extra) 11 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 Wood Screw Flat Washer Spring Washer Head Cap Bolt (short) Flat Washer Spring Washer Head Cap Bolt (long) STEP 2 Attach Back Frame (D) to unit with Flat Washers, Spring Washers, Head Cap Bolts (short), Head Cap Bolts (long) and Wood Screws, tightening bolts only halfway. (See Figures 4 and 5) Tighten all Head Cap Bolts used in Steps 1 and 2.
- Page 4 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
