IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05523 0081

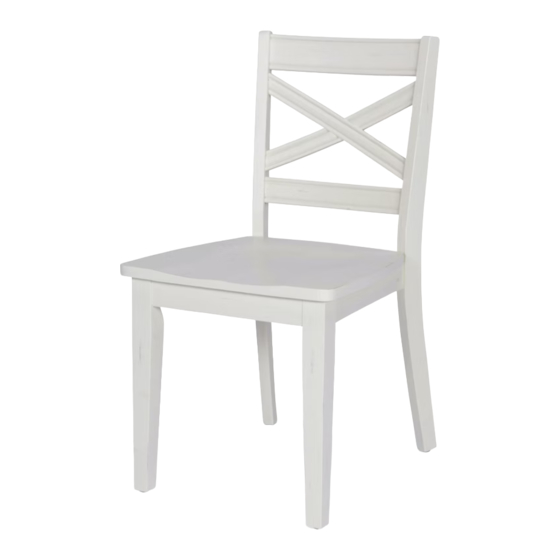

Side Chair
M6x35
M6x50
Head Cap Bolt (short)
Head Cap Bolt
3 pcs. (+1 extra)
4 pcs. (+1 extra)
B.
Leg
2 pcs.
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Back Frame
1 pc.
Flat Washer
11 pcs. (+1 extra)
Spring Washer
11 pcs. (+1 extra)
