IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

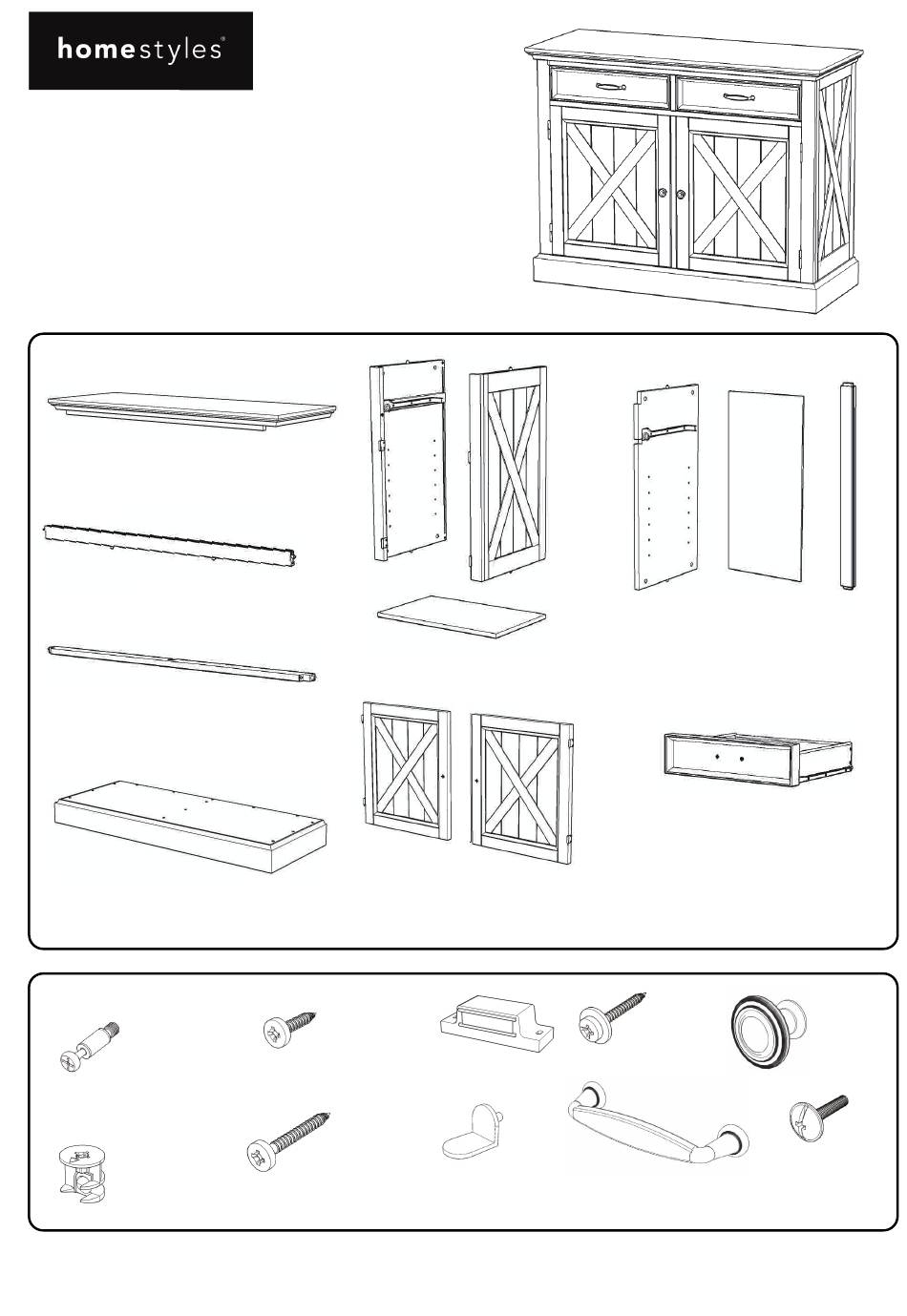

Part List
A.
Top
1 pc.
G.
Stretcher
2 pcs.
H.
Front Rail
1 pc.
I.
Base
1 pc.
Hardware List
Cam Lock Screw
24 pcs. (+2 extra)
Cam Lock
24 pcs. (+6 extra)
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05525 0061

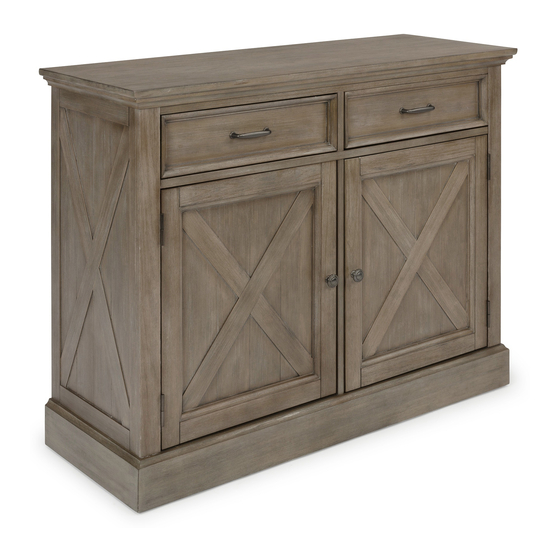

Buffet
B.
Side Panel
1 pc.
J.
Shelf
4 pcs.
K.
Door
1 pc.
M3x15
Wood Screw (short)
16 pcs. (+1 extra)
M3x25
Wood Screw (long)
16 pcs. (+1 extra)
C.
Side Panel
1 pc.
D.
Middle Panel
1 pc.
L.
Door
1 pc.
M3x16
Magnet
Wood Screw
2 pcs.
12 pcs. (+1 extra)
Adjustable Pin
Handle
16 pcs. (+1 extra)
2 pcs.
888-680-7460, 877-831-0319
E.
Back Panel
3 pcs.
M.
Drawer
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
Knob
2 pcs.
M4x25
Machine Screw
6 pcs.
F.
Upright
2 pcs.
Advertisement
Related Manuals for Home Styles 20 05525 0061
Summary of Contents for Home Styles 20 05525 0061
- Page 1 Machine Screw 24 pcs. (+6 extra) 16 pcs. (+1 extra) 16 pcs. (+1 extra) 2 pcs. 6 pcs. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/6 STEP 3 Cam Lock Attach Magnets to Front Rail (H) with Wood Screws (short) into pre-drilled holes. (See Figure 3) Attach Middle Panel (D), Front Rail (H) and Side Panel (C) to unit with Cam Locks. Magnet Wood Screw (short) Magnet Wood Screw (short)
-
Page 4: Part List
Assembly Instructions 4/6 Drawer (M) Bottom Wood Screw (long) STEP 5 Roller at back Attach Drawer Front (M1) and Drawer Back (M2) to Drawer Side (M3) with Wood Screws (long). Attach Drawer Side (M4) to unit with Wood Screws (long). Wood Screw (short) STEP 6 Slide Drawer Bottom (M5) into groove. - Page 5 Assembly Instructions 5/6 Knob Machine Screw STEP 8 Level unit by adjusting the adjustable Adjustable Pin levelers on bottom of unit. (See Figure 4) Insert Adjustable Pins into middle panel and side panels at desired level. (See Figure 5) Slide Drawers (M) and Shelves (J) into position. Attach Doors (K) and (L) to unit by sliding door hinges into side panels hinges.
-
Page 6: Hardware List
Assembly Instructions 6/6 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 10 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location. - Page 7 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
