Home Styles 20 05507 0432 Assembly Instructions Manual

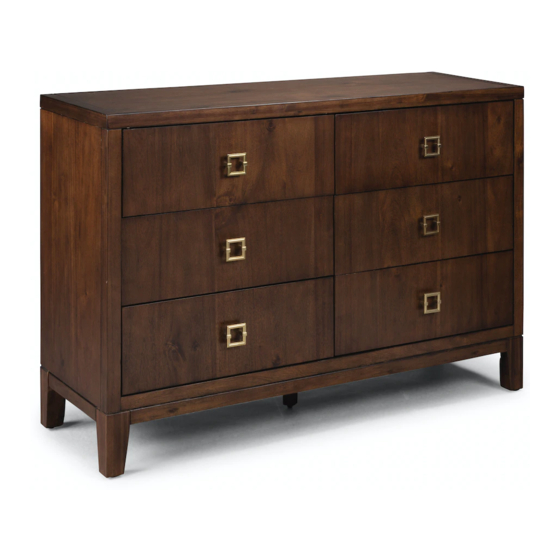

Dresser
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
B.
Bottom
1 pc.
F.
Back Panel
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Carton 20 05507 0431 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05507 0432
Dresser
M6x40
Head Cap Bolt (long)
8 pcs. (+1 extra)
Flat Washer
32 pc. (+1 extra)
C.
Side Panel
1 pc.
G.
Back Panel
1 pc.
M6x30
M3.5x20
Head Cap Bolt
Wood Screw (short)
24 pcs. (+1 extra)
48 pcs. (+1 extra)
M4x30
Spring Washer
Wood Screw
32 pc. (+1 extra)
60 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
E.
Side Panel
Middle Panel
1 pc.
1 pc.
H.
Foot
4 pcs.
Handle
6 pcs.
M4x30
Machine Screw
12 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 05507 0432 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Styles 20 05507 0432

Summary of Contents for Home Styles 20 05507 0432

  • Page 1 60 pcs. (+1 extra) 1 pc. 12 pcs. Carton 20 05507 0431 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/11 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/11 Head Cap Bolt Spring Washer Flat Washer STEP 3 Attach Back Panels (F) and (G) to unit with Flat Washers, Spring Washers, and Head Cap Bolts, tightening bolts only halfway. STEP 4 Flat Washer Spring Washer Head Cap Bolt Attach Side Panel (D) and Middle Panel (E) to unit with Flat Washers,...
  • Page 4 Assembly Instructions 4/11 Drawer (I) Bottom STEP 5 Attach Drawer Front (I1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws. Roller at back Wood Screw Attach Drawer Side (I4) to unit with Wood Screws. STEP 6 Wood Screw Wood Screw (short) Slide Drawer Bottom (I5) into groove.
  • Page 5 Assembly Instructions 5/11 Drawer (J) Bottom STEP 8 Attach Drawer Front (J1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws. Roller at back Wood Screw Attach Drawer Side (I4) to unit with Wood Screws. STEP 9 Wood Screw Wood Screw (short) Slide Drawer Bottom (I5) into groove.
  • Page 6 Assembly Instructions 6/11 Drawer (K) Bottom STEP 11 Attach Drawer Front (K1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws. Roller at back Wood Screw Attach Drawer Side (I4) to unit with Wood Screws. STEP 12 Wood Screw Wood Screw (short) Slide Drawer Bottom (K5) into groove.
  • Page 7 Assembly Instructions 7/11 Drawer (L) Bottom STEP 14 Attach Drawer Front (L1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws. Roller at back Wood Screw Attach Drawer Side (I4) to unit with Wood Screws. STEP 15 Wood Screw Wood Screw (short) Slide Drawer Bottom (K5) into groove.
  • Page 8 Assembly Instructions 8/11 Drawer (M) Bottom STEP 17 Attach Drawer Front (M1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws. Roller at back Wood Screw Attach Drawer Side (I4) to unit with Wood Screws. STEP 18 Wood Screw Wood Screw (short) Slide Drawer Bottom (K5) into groove.
  • Page 9 Assembly Instructions 9/11 Drawer (N) Bottom STEP 20 Attach Drawer Front (N1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws. Roller at back Wood Screw Attach Drawer Side (I4) to unit with Wood Screws. STEP 21 Wood Screw Wood Screw (short) Slide Drawer Bottom (K5) into groove.
  • Page 10 Assembly Instructions 10/11 Flat Washer Spring Washer Head Cap Bolt STEP 23 Attach Top (A) to unit with Flat Washers, Spring Washers and Head Cap Bolts, tightening bolts on halfway. Tighten all bolts used in Steps 2, 3, 4 and 23. STEP 24 Slide Drawers (I), (J), (K), (L), (M) and (N) into position.

  • Page 11: Hardware List

    Assembly Instructions 11/11 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 25 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location.
  • Page 12 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
