Intense TRACER 279 EXPERT Manual page 30

T R A C E R 2 7 9

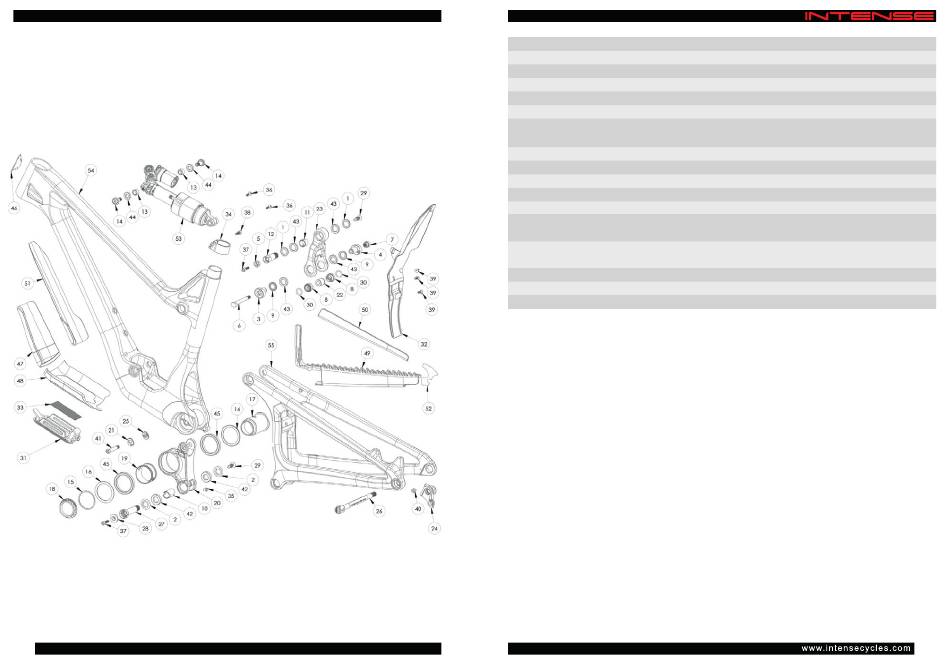

PARTS
LISTING CONT.
58
ITEM PART No. DESCRIPTION
40 Hanger Hardware 410070 Hanger Stop, M4 x 8 x 10mm OD
41 Rear Shock Bolt 410071 Bolt SHCS, M8 x 51, Rear Shock Bolt
42 Bearing 7902 430007 Bearing 7902-1ZS-MAX
43 Bearing 6802 430008 Bearing 6802 LLU MAX
44 Bearing 6800 430011 Bearing 6800 LLU MAX
45 Bearing 6809 430012 Bearing 6809 LLU MAX
45mm ID x 58mm OD x 7mm Width
46 Head Badge 500335 Head Badge Flame Logo
47 Downtube Protector 500512 Downtube Protector Front Tracer 279
48 Downtube Protector 500513 Downtube Protector Tracer 279
49 Flak Guard Chainstay 500515 Flak Guard Chainstay Tracer 279
50 Flak Guard Seatstay 500516 Flak Guard Seatstay, Tracer 279
51 Downtube Shuttle 500520 Downtube Shuttle Guard Protector
Guard Protector Tracer 279
52 Flak Guard Chainstay 500529 Flak Guard Tracer 279 Chainstay
Clear Protector
53 Rear Shock N/A
Rear Shock 205 x 65
54 Rear Triangle N/A Tracer 279 Medium (Size Specific) Front
55 Front Triangle N/A Tracer 279 Rear
QTY. TORQUE SPEC.
1 2Nm / 18in-lbs
1 16Nm / 140in-lbs
2 N/A
4 N/A
2 N/A
2 N/A
1 N/A
1 N/A
1 N/A
1 N/A
1 N/A
1 N/A
1 N/A
1 N/A
1 N/A
1 N/A
59
