REAR SUSPENSION SETUP
First check the spring rate-chart on this page to make sure that the spring fitted on
your 170mm (6.7") Öhlins TTX22M Coil rear shock is within range for your rider
weight. If the spring is too hard or too soft you will need to change it. Please see our
Tech Videos section on our website to see how to change the coil on your shock.
S HO C K: Ö HL I N S TT X2 2M CO IL
SUGGESTED STARTING POINTS FOR SETTING UP YOUR SHOCK
RIDER COIL
WEIGHT SPRING
(LBS/KGS) (LBS)
100 / 45 251
110 / 50 251
120 / 54 343
130 / 59 365
140 / 63.5 365
150 / 68 411
160 / 73 457
170 / 77 457
180 / 82 502
190 / 86 502
200 / 91 548
210 / 95 548
220 / 100 605
230 / 104 605
240 / 109 640
250 / 113 640
260 / 118 674
270 / 122 708
280 / 127 708
SPRING RATES FITTED AS STANDARD
SMALL MEDIUM
365LBS 457LBS
34
TRACER 279 S
LOW REBOUND
SPEED
(FROM
COMPRESSION FULLY
CLOSED)
16 7
16 7
15 7
15 6
14 6
14 6
13 6
13 5
12 5
12 5
10 4
10 4
9 4
9 3
8 3
8 3
7 2
7 2
5 1
FR AME SIZ ES
LARGE EXTRA LARGE
502LBS 548LBS
SETTING REAR SHOCK SAG
The optimal sag on your rear shock is 30% of the piston's movement inside the
shock body (stroke). The distance between the two shock mounting bolts (eye-to-
eye) without a rider on the bike is 205mm. Sag at 30% (of the shock stroke) equates
to a 19.5mm reduction in the eye-to-eye measurement. So the correct eye-to-
eye measurement for 30% sag on both of these shocks is 185.5mm (205-19.5 =
185.5mm). As a further adjustment you can preload the shock a minimum of 1.5
turns, and a maximum of 5 turns.

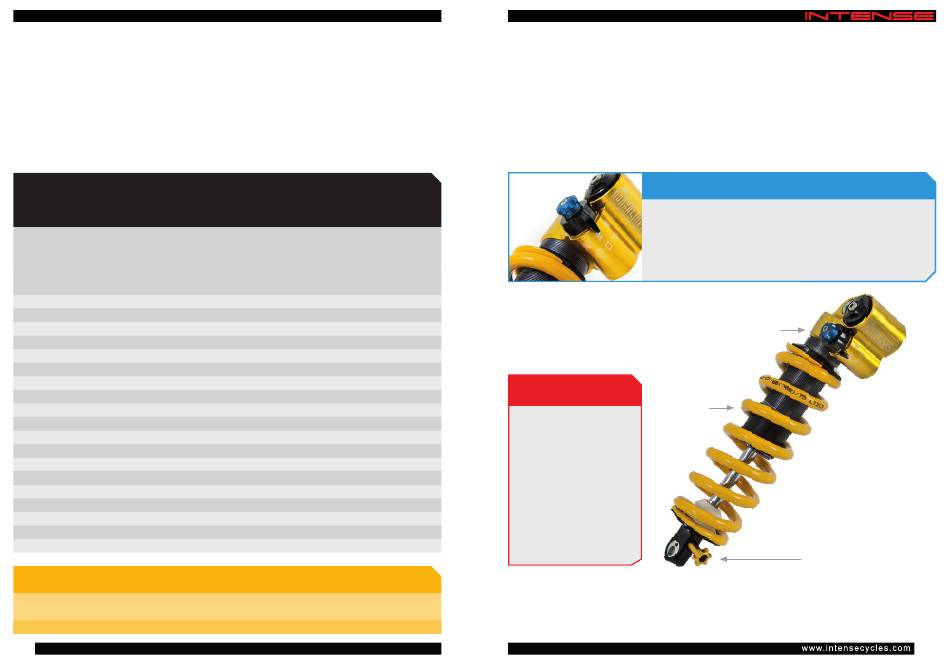

COMPRESSION ADJUSTMENTS
Adjust low speed: To adjust, turn the blue colored adjuster on the
side of the cylinder head. Turn clockwise to increase damping, turn
counterclockwise to decrease.
Adjust high speed: To adjust, turn the black colored adjuster on the
side of the cylinder head. Position (1) soft, (2) medium, (3) hard
The rebound adjuster for
the rear shock is a gold
LOW SPEED COMPRESSION (BLUE)
dial located on the bottom
HIGH SPEED COMPRESSION (BLACK)
of the shock by the end of
the coil.
REBOUND
ADJUSTMENTS
SPRING (COIL)
To remove rebound
damping turn the dial
counterclockwise. This will
open the rebound valve and
increase the shock rebound
speed. To add rebound
damping turn the dial
clockwise. This will close
the rebound valve which
will slow down the shock
rebound speed.
Proper set up and tuning can vary from shock to shock. Please consult the Öhlins
manual included with your bike for complete information about set up, tuning and
general maintenance or visit ohlins.com
