Intense TRACER 279 EXPERT Manual page 21

A
C
40
B
D
G E O M E T R Y
FLIP CHIP...
CONTINUED

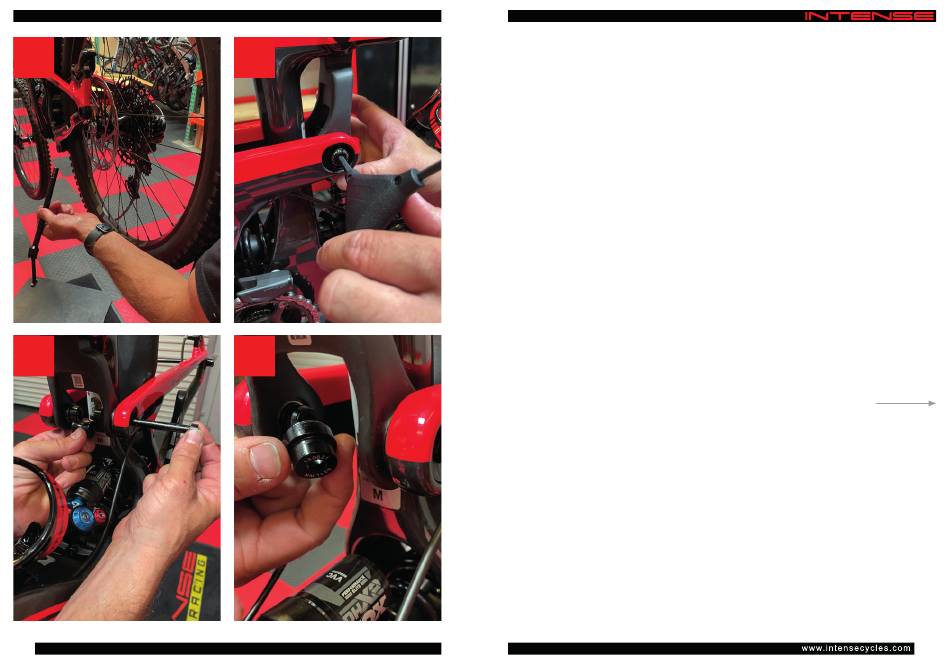

STEP 01
To remove the rear wheel shift the chain into the
smallest gear on the cassette. Gently push your
SRAM derailleur forward in a counterclockwise
direction until it is vertical and then lock it in position
using the 'derailleur lock' button. Undo the rear axle
and slide it out, then remove the wheel (A).
STEP 02
Using a 5mm Allen key on the drive-side of the bike
loosen and remove the D-Lock Nut that is located on
the Top Link (B). From the left (non-drive side) slide
out the D-Lock Bolt and remove the Dogbone Spacer
(C) from between the two Stepped Reducer Spacers.
STEP 03
Remove the two Stepped Reducer Spacers
these spacers have internal O-rings holding them in
place, they will move once the static friction is broken.
(D) –
