User Guide
Industrial Actuator
ACME

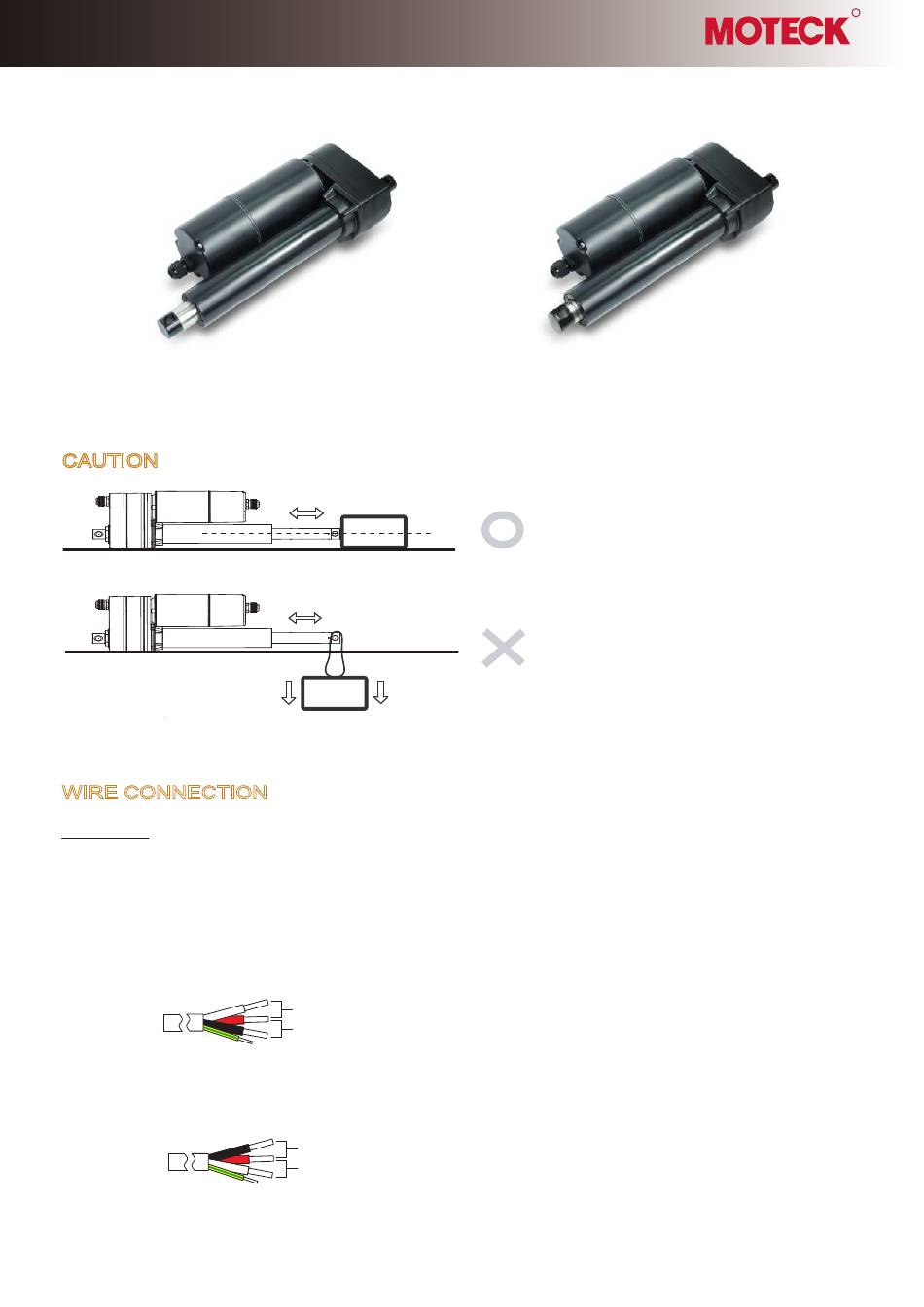

CAUTION
CAUTION
WIRE CONNECTION
Power wire
For IA5 actuators, connection rule of power wires varies according to different types and gear ratio(s).
Please follow the instructions below.
● Standard or With Potentiometer (POT) type
Gear ratio: 5:1 / 10:1 / 20:1
Power wire
Gear ratio: 30:1 / 40:1
Power wire
KG
Load
KG
Load
Side Load
Red & White: Extend
Red & Black: Retract
Ground
Red & Black: Extend
Red & White: Retract
Ground
Model: IA5
Ball Screw
The load should be centered on the operating direction.
Side load is NOT good for actuators.
-When Red & White are connected to AC power,
the actuator will extend; When Red & Black are
connected to AC power, the actuator will retract.
-When Red & Black are connected to AC power,
the actuator will extend; When Red & White are
connected to AC power, the actuator will retract.
R
MOTORIZE OUR WORLD
