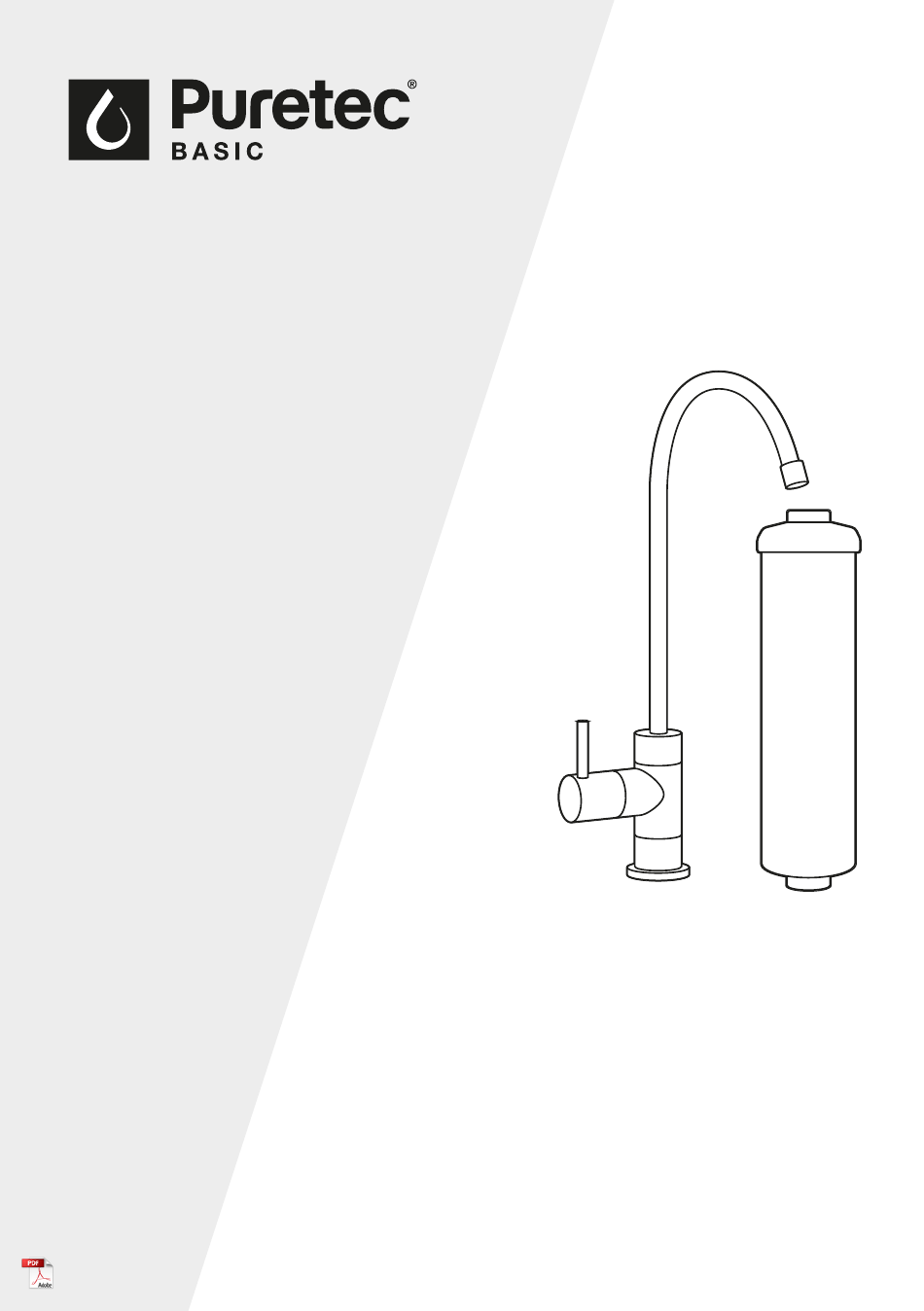

- Page 1 User Guide IL-UB Series Inline Undersink Water Filtration System For correct operation & installation, it is essential to observe these instructions JAN2022...
- Page 2 Puretec stockist. Operation The Puretec IL-UB systems are designed to run economically for many years, dependant on the initial installation and periodical maintenance. Flush systems for 10 minutes after any period of non-use more than 2 days. For a period of non- use of 2 weeks or more, it may be necessary to replace cartridge.
- Page 3 Install housing assembly by positioning it in the desired location, marking the position of fixing holes and fixing with bracket screws (IL-UB Series can be mounted horizontally or vertically). Allow room for the connecting tubes and for removing the filter bowls (50mm).
- Page 4 Caution: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
- Page 5 Installation Figure 1 Faucet Tubing 1/4" White Inline Cartridge with Quick Connect Fittings Pressure Limiting Valve (Multivalve) Ball Valve Cold Water Line Inline Undersink Filter System User Guide...
- Page 6 Installation Figure 2 Faucet Escutcheon O-Ring Counter Top ø12.5 hole Plastic Washer Lock Washer Locking Nut Gasket Cone Washer 1/4" Compression Nut 1/4" Tube Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
- Page 7 Notes All pictures and information are supplied as a guide only. The complete range of Puretec products are developed, refined and made to meet and exceed stringent specifications for the worldwide market. Important Note: Sales of products are subject to our Terms & Conditions which are available upon request.
- Page 8 Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs incurred.
