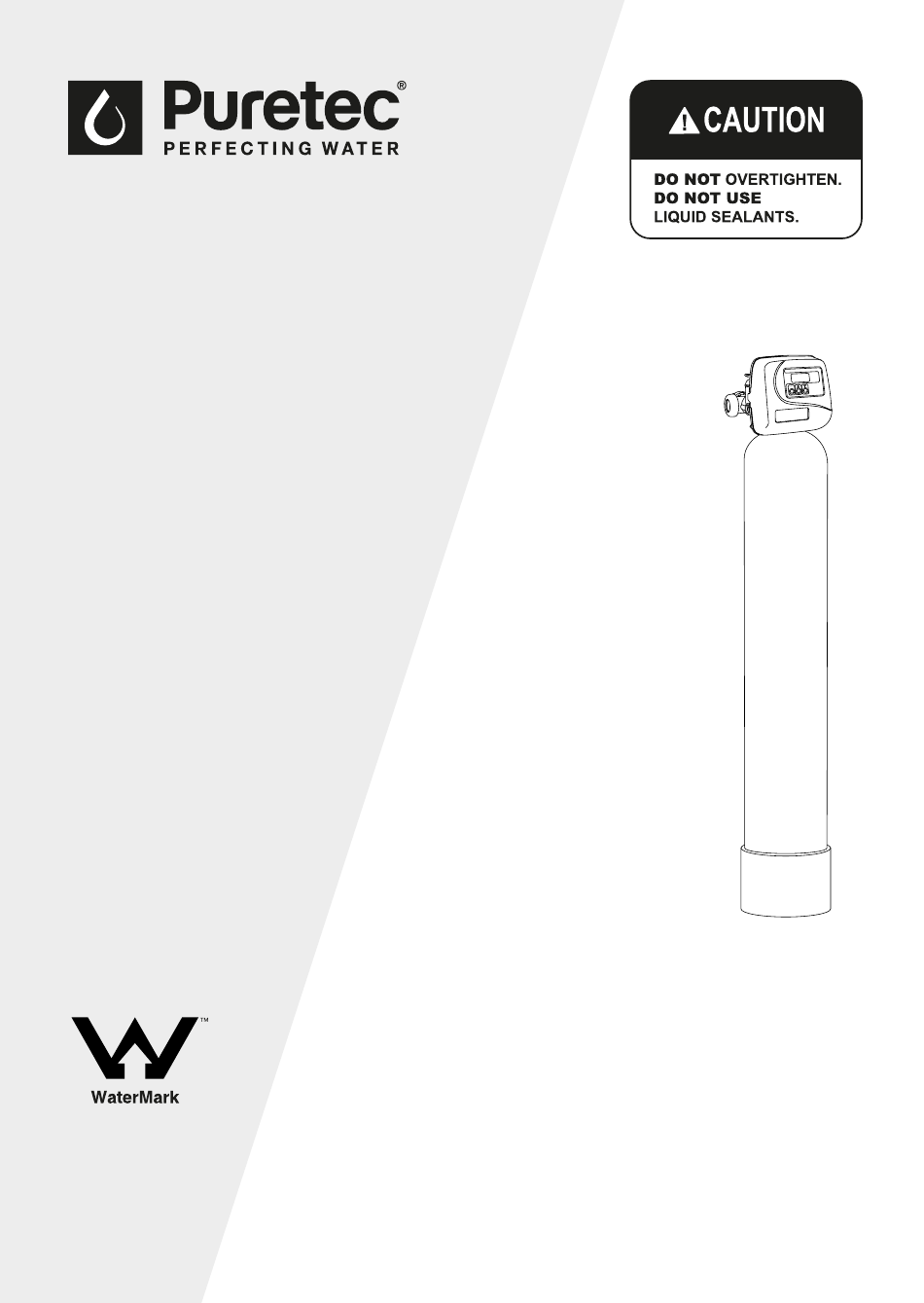

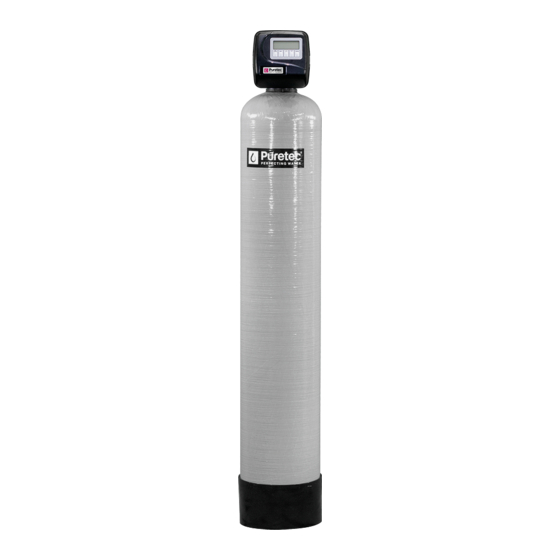

- Page 1 SURGE PROTECTION REQUIRED / NO EXTENSION CORDS. User Guide CFS / IRS / IRX / SFS Series ATS5200.103 Licence No. WM 74593 Australian Certification Water Treatment Systems Services SEPT2020 For correct operation & installation, it is essential to observe these instructions.
-
Page 2: Table Of Contents
Warranty ................................23 Puretec Customer Service Thank you for purchasing a Puretec Water Treatment System. Your system is a proven performer manufactured from only quality materials and components. It will give years of reliability and trouble free operation if maintained properly. -
Page 3: Installation Record
___________ ppm / mg/L ___________ TDS (Total Dissolved Salts): ___________ ppm / mg/L Hydrogen Sulfide: ___________ ppm TOC (Total Organic Carbons): ___________ % Dissolved Oxygen: ___________ ppt Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide... -
Page 4: Before Installation
• An analysis of the water should be made prior to the selection of the water treatment equipment. Puretec dealers can usually perform this service and may send a sample for analysis and recommendations. Enter analysis information on page 4 for a permanent record. -
Page 5: Warnings
Avoid getting primer and solvent cement on filter system. • Install grounding strap on metal pipes if required. • Ensure the system is protected against high pressure and extreme temperatures. Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide... -
Page 6: Specifications
230V AC / 50hz Inlet/Outlet Connection: 1" / 1" BSPM Drain Connection: ¾" BSPM CFS2000 CFS3000 CFS4000 Width (A) 245 mm 270 mm 320 mm Height (B) 1,400 mm 1,500 mm 1,600 mm Installation & Operation Manual Copyright © Puretec Pty Ltd 2020... - Page 7 Drain Adaptor: 1" BSPM Dimentions SFS2000 SFS3000 SFS4000 Height (A) 1,400 mm 1,500 mm 1,600 mm Width (B) 245 mm 270 mm 320 mm Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide...
-
Page 8: Exploded Diagram
Parts Identification Exploded Diagram Installation & Operation Manual Copyright © Puretec Pty Ltd 2020... -
Page 9: Diagram Identification
Diagram Identification Inlet 1" Inlet 1" Outlet 1" Outlet 1" ¾” 1” Drain Drain Control Panel Control Panel CFS / IRS /IRX Models SFS Models Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide... -
Page 10: Installation Procedure
¾" tube supplied (500 mm). If longer length required, tube may be purchased separately. Ensure Water Has Been Tested Input values into table on Page 3 and the analysis has been inspected by Puretec. Water Analysis Information Hardness ___________ ppm / mg/L... - Page 11 Then using a wide mouth funnel, place the media in the tank as per the vessel media filling order chart (page 12). Continued next page. Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide...
- Page 12 10L - WTM7500 10L - WTM7500 SFS3000 15L - WTM7550 10L - WTM7500 15L - WTM7500 SFS4000 5L - WTM7550 15L - WTM7550 15L - WTM7500 15L - WTM7500 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
- Page 13 6” between the fitting and solder joints when soldering pipes. Failure to do this could cause heat damage to the fittings. This should be carried out by a qualified tradesperson. FOLLOW LOCAL PLUMBING CODES Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide...
- Page 14 6.1 Plug into an uninterrupted electrical outlet. Note: the system transformers are not weather resistant and should be adequately protected. All electrical connections must be connected accordingly to local codes. 6.2 Proceed to ‘Programming’ section. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
-
Page 15: Programming
▲ or ▼ buttons. Once the hour is chosen, press SET and repeat for MINUTES. Factory setting is 2 AM. Press SET to go to STEP 3. Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide... - Page 16 ▲ + ▼ buttons and release. To initiate a manual regeneration immediately, simultaneously press ▼ + ▲ buttons together for 3 seconds. The system will begin to regenerate immediately. The request cannot be cancelled. 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
-
Page 17: Start-Up
Operation and Maintainance Power Loss Your Puretec electronic control valve maintains the time for up to 8 hours using the internal PCB battery if power is interrupted. Nonvolatile memory stores the stats & programming & are not affected by power outages. After 8 hours of backup use, replace the battery with a type 2032, 3-volt lithium coin cell battery. -
Page 18: Media Replacement
If necessary a pliers can be used to unscrew the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer. 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020... -
Page 19: Bypass Valve Operation - Optional Accessory
Diagnostic Mode Shut Off Mode SUPPLY WATER IS SHUT OFF SUPPLY WATER SUPPLY WATER FROM THE HOUSE ENTERS EXITS NO WATER EXITS & THE VALVE Copyright © Puretec Pty Ltd 2020 CFS / IRS / IRX / SFS Series User Guide... -
Page 20: Troubleshooting Guide
C. Reset regeneration time. incorrectly. Time of day flashes on and off. A. Power outage(s). A. Reset time of day, replace battery (CR2032) and then perform a ‘dry’ reset. 20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020... - Page 21 C. Fouled media bed. C. Clean/replace media. D. Water quality fluctuation. D. Test water and contact Puretec for assistance. H. Leak from seal/spacer stack H. Clean/replace spacer stack assembly. assembly. Water running to drain.
- Page 22 A. Drive bracket not correctly A. Snap drive bracket in correctly. Control valve motor ran too long installed. Perform a 'dry' reset. and timed out trying to reach home position. 22 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
-
Page 23: Warranty
Puretec’s discretion, including chargeable inspection and labour costs incurred. Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
