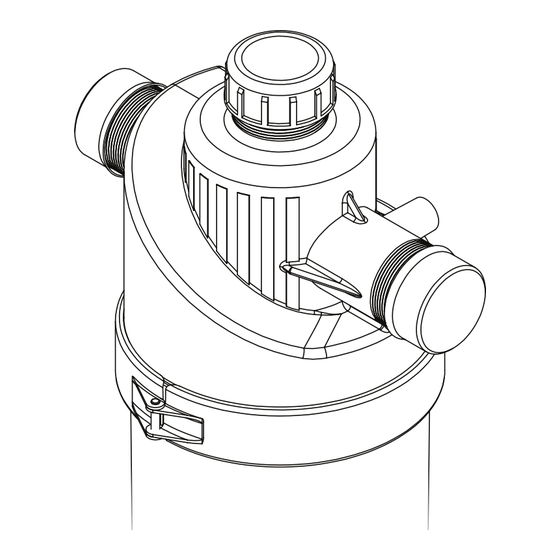

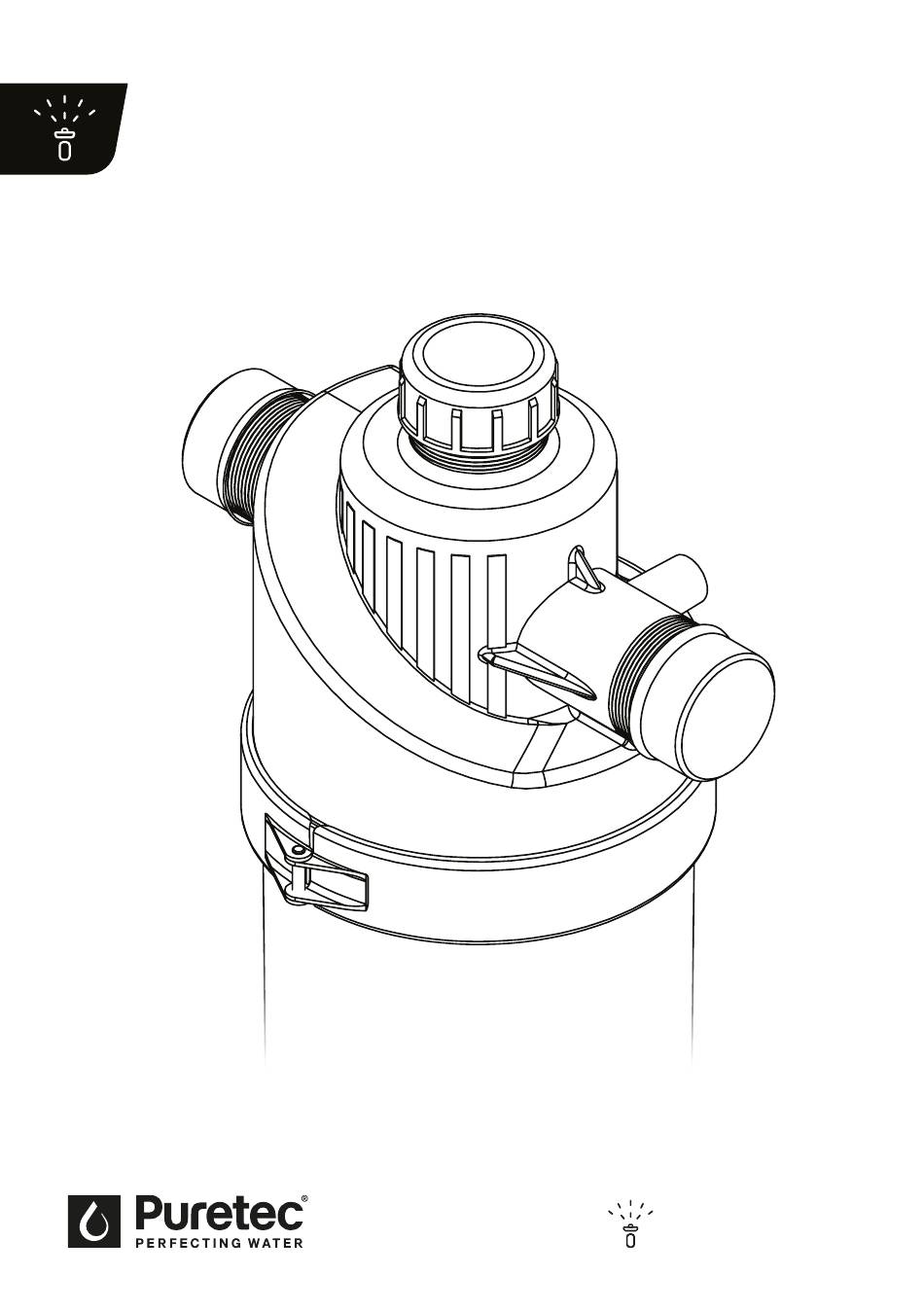

- Page 1 IF Series Irrigation Filter Range User Guide I R R I G A T I O N...
-
Page 2: Table Of Contents
Warranty ............................ 11 Puretec Customer Service The Puretec IF Series irrigation filter range prevents build up and blockages in irrigation systems and is essential to ensure consistent water distribution. Irrigation filtration is vital to protect agricultural, landscape and commercial investments, the IF Series filters reduce sediment to ensure irrigation systems remain working at their peak capacity. -
Page 3: Guidelines And Warnings
Cleaning • The filter requires cleaning when the pressure drop between the inlet and outlet reaches 0.5-0.6 bar (7-8 psi). Copyright © Puretec Pty Ltd 2023 Irrigation Sediment Removal Filters... -
Page 4: Preparing Your System
Preparing Your System Preparing Your System Puretec systems are designed to run economically for many years, dependent on the initial installation and periodical maintenance Please read all instructions carefully as failures caused by incorrect installation or operation are not covered by warranty On removing your system from its carton you should check all the components to ensure all are present and have not been damaged in transportation. -
Page 5: Model Specifications
30 - 35m3/h Setting 1: 5 - 18m3/h Setting 2: 18 - 24m3/h IDF020S-120 Disk 120 (125) 2" (50 mm) 1000 kPa Setting 3: 24 - 30m3/h Setting 4: 30 - 35m3/h Copyright © Puretec Pty Ltd 2023 Irrigation Sediment Removal Filters... -
Page 6: Dimensions
178.00 IMF034-80L, IMF034-120L IMF034-80L, IMF034-120L 248.00 230.00 178.00 IMF112-80, IMF112-120, IDF112-120 IMF020-80, IMF020-120 IMF034-80S, IMF034-120S, IDF034-120L IDF SERIES FLOW IS REVERSED COMPARED TO IMF SERIES Installation & Operation Manual Copyright © Puretec Pty Ltd 2023 178.00 IMF020-80, IMF034-80S, IMF034-120S, IDF034-120L... - Page 7 Dimensions Dimensions - Disk Filter Models 309.00 243.56 IDF020-120 243.56 309.00 IDF020-120S Copyright © Puretec Pty Ltd 2023 Irrigation Sediment Removal Filters...
-
Page 8: Maintenance
(bleach) for 30 minutes. Rinse with clean water and return to filter according to procedures above. To remove scale/calcium: Soak the screen in a bath of Puretec SC1000 ScaleSolve for 30 minutes. Rinse with clean water and replace back into the filter. -
Page 9: Replacement Parts
12. Turn on the inlet feed water. 13. Check for leaks - tighten if necessary. Replacement Parts You can obtain replacement mesh screen or disk filter elements from your local Puretec dealer. To maintain performance standards and warranty, use only genuine Puretec replacements. -
Page 10: Troubleshooting
Suggested Action Drop in the outlet Element fouled. Clean the element. pressure. Disconnect the lines, the The connection is not Connection is leaking. threads & re-assemble sealed correctly. the lines. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 11: Warranty
1 year parts only, excludes cartridges. Puretec is renowned for its quality and after-sales support so if you have any issues please call 1300 140 140 (AU) or 0800 130 140 (NZ). To make a warranty claim, contact us directly or the place of original purchase. All costs relating to a warranty claim must be approved by Puretec prior to any work being carried out. - Page 12 FEB2023...
