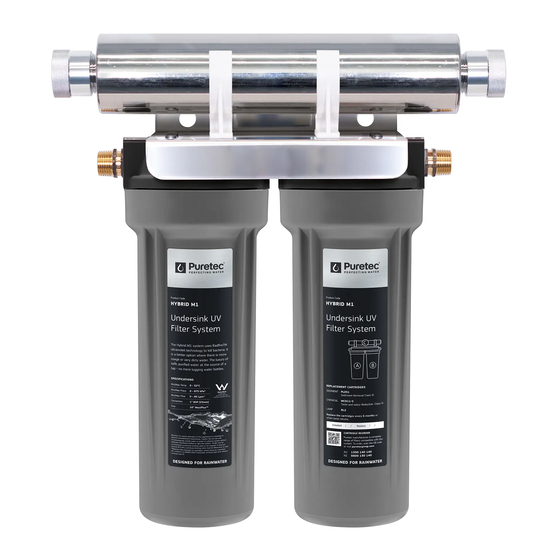

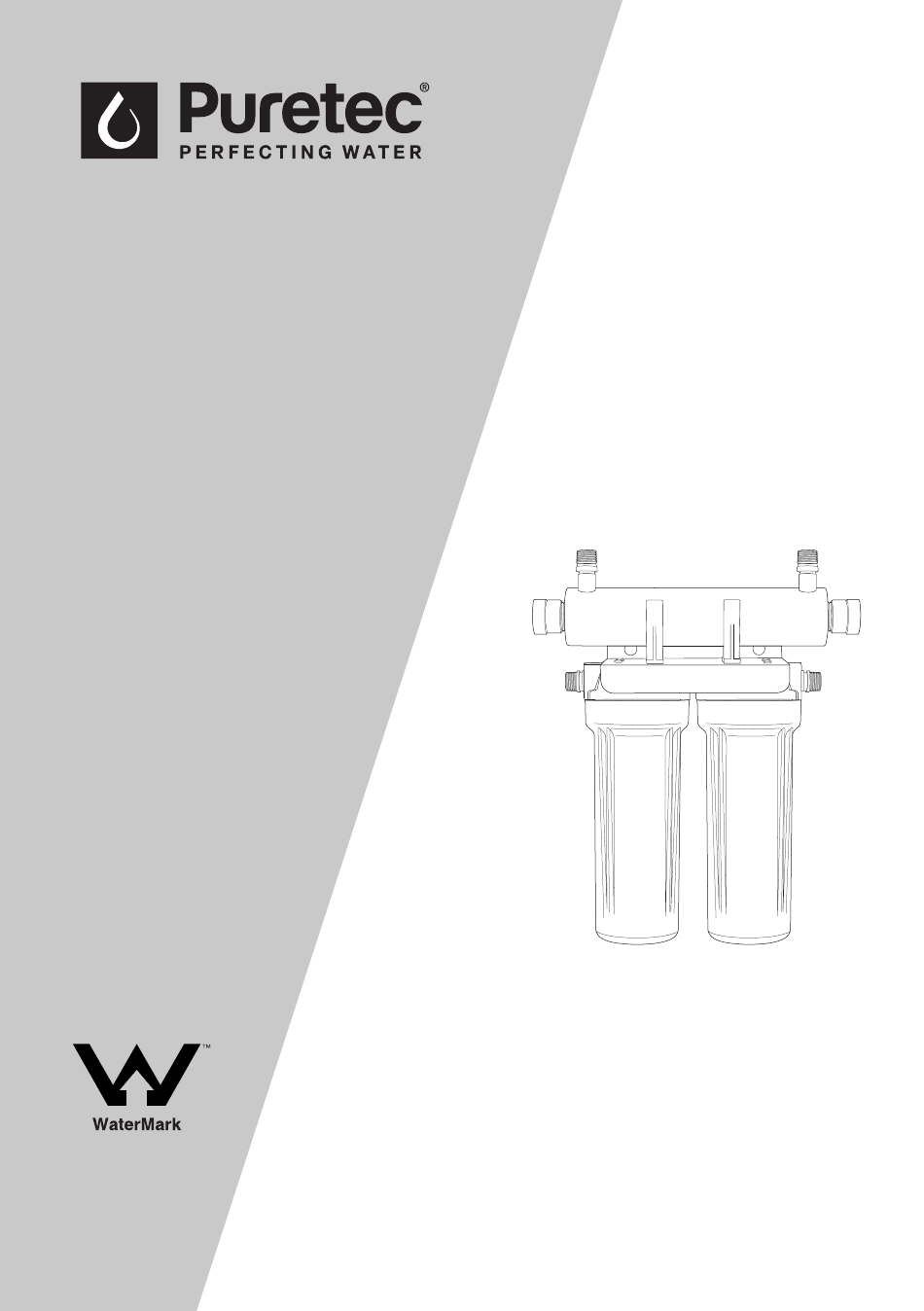

- Page 1 User Guide Hybrid-M1 † AS/NZS 3497 Certificate No. WM 74617 Filtration & Ultraviolet All-in-One Undersink Unit Australian Certification Services † FP10M-2 Filter Housing For correct operation & installation it is essential to observe these instructions. JAN2019...
-
Page 2: Table Of Contents
Warranty ............................ 10 Puretec Customer Service Thank you for purchasing a Puretec Hybrid-M1 Whole House UV Water Treatment System. Your system is a proven performer manufactured from quality materials and components and will give years of ‘spring like’ water, free of impurities, if maintained and installed properly (refer installation requirements pg.5). -
Page 3: Introduction
Remember to allow access room for changing filters and a suitable place where water spillage will not cause damage. Location should not be in direct sunlight. An isolation valve may be installed prior to the Hybrid-M1 system to isolate the unit for changing the cartridges, lamps and sleeve. -
Page 4: Preparing Your System
Please read all instructions carefully as failures caused by incorrect installation or operation are not covered by warranty. On removing your Hybrid-M1 system from its carton you should check all the components (especially the lamp), to ensure all are present and have not been damaged in transportation. -
Page 5: Installation Requirements
Installation Guide Installation Requirements • Cold water line only. • Power supply: AC 240V | 50Hz • Supply pressure: 300-875 kPa. Install pressure limiting valve if pressure exceeds 500 kPa. Note: For point of entry installations an approved dual check backflow prevention device must be installed. -
Page 6: Initial Installation Procedure
(lamp exit and entry point can be determined by installer). A power outlet is required. The Hybrid-M1 unit has 2 mounting key holes at the rear of the bracket. Mark the desired position on the wall where the fixings are required to go. -
Page 7: Operation
The sanitising solution can be added into the water tank or if necessary added as a shock dose into the bowl of the filter housing of the Hybrid-M1 and slowly flushed through the piping. If added as a shock dose the system and pipework should be rinsed thoroughly by opening a downstream tap. -
Page 8: Uv Lamp Installation / Replacement
Cleanse the inside of the housing using hot water and detergent. Check O-Ring and lubricate with food grade silicone lubricant (or similar). Replace O-Ring if kinked or damaged. Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 9: Cleaning Quartz Sleeve
Operation Install new cartridges and replace housing screwing them up HAND TIGHT ONLY. Sediment filter is on the inlet side and chemical on the outlet side. Restore water supply & check for leaks, rectifying them, if any, before leaving the unit. -
Page 10: Warranty
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs... - Page 11 This page was intentionally left blank. HYBRID M1 | Filtration & Ultraviolet All-in-One Undersink Unit...
