Summary of Contents for Puretec RO270

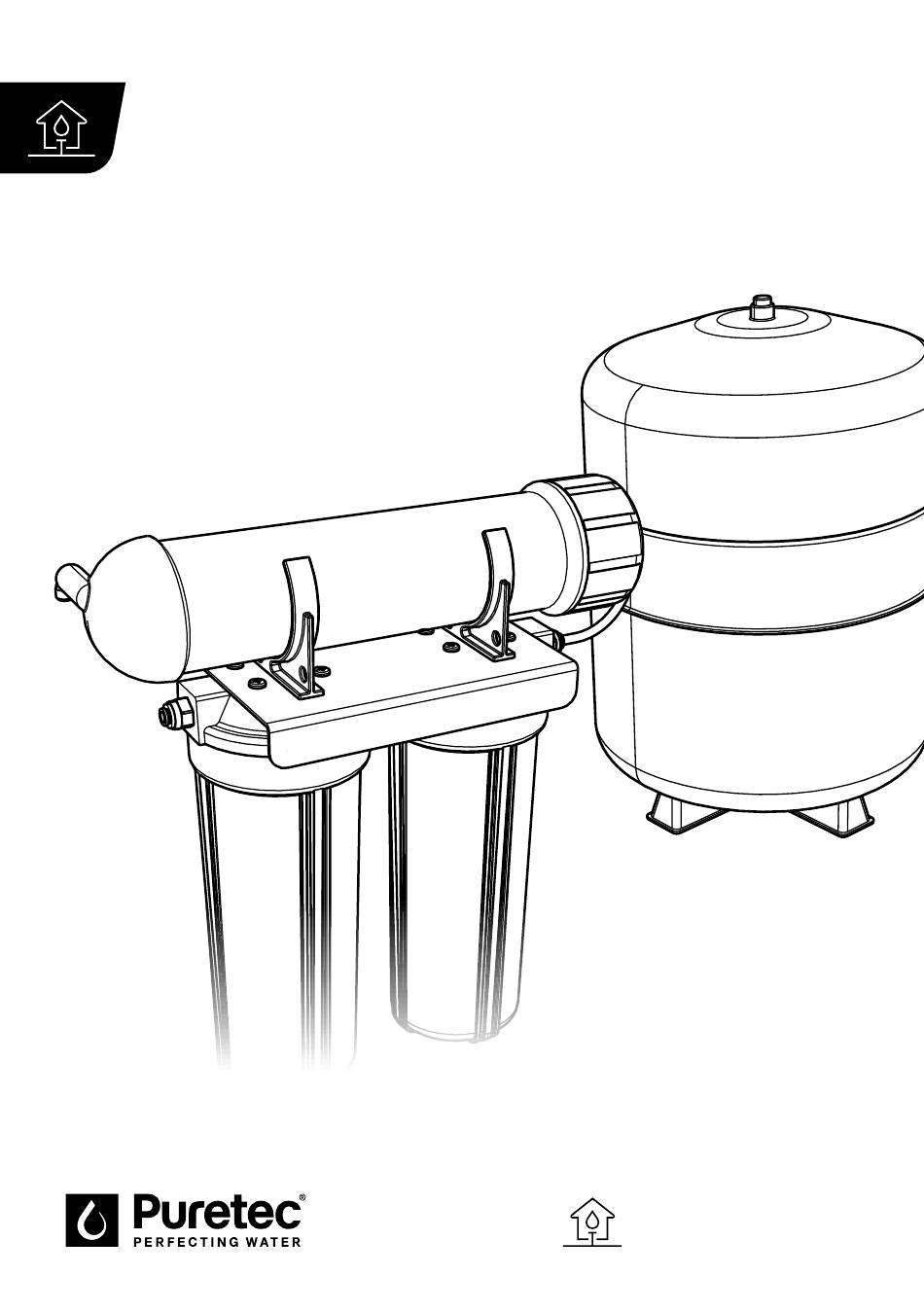

- Page 1 RO Series RO270 Reverse Osmosis System User Guide M A I N S W A T E R...
-
Page 2: Table Of Contents
Battery Installation ......................... 9 Quick Connect Fittings ....................... 10 Cartridge Changeout ........................11 Use Guidelines ..........................12 Substance Reduction ........................12 Warranty ............................13 AS 3497 Licence No. WM 74617 Pro-Switch Pty Ltd Installation & Operation Manual Copyright © Puretec Ltd 2023... -
Page 3: Important Notes
The system is designed for metropolitan supply water but can be used in other situations. For other types of water supply please contact your local Puretec stockist or call our Puretec Customer Service Help line prior to installing the tap. -
Page 4: Operation
Operation Operation The Puretec RO series system is designed to run economically for many years, dependent on the initial installation and periodical maintenance. Flush systems for 10 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace cartridge. -
Page 5: Installation Requirements
Installation Requirements Installation Requirements 13 mm (½”) cold water line. Supply pressure: 300 - 500* kPa. Note: Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. Supply temperature 0°... -
Page 6: Cartridge Installation
The Reject water is usually dispensed down the drain although it can be directed to the garden if desired. To be environmentally friendly, the Puretec RO system has a built in shut off valve so that when the storage tank is full it stops producing water. - Page 7 18 - 24 months, depending on incoming water quality. For best performance use only genuine Puretec replacement cartridges and cartridges that are suitable for this system. NOTE: When removing the membrane from the packaging, only remove the outer shrinkwrap packaging, DO NOT remove any other packaging from the membrane.
-
Page 8: Parts Diagram
ESCUTCHEON PLATE – NOT SOLD SEPARATELY KTU4BK BLACK FLEXIBLE TUBING DFU180 HIGH LOOP FAUCET RA-HM MEMBRANE HOUSING KEA44 ELBOW ADAPTOR RA-CL4 DRAIN CLAMP RA-FR50 FLOW RESTRICTOR KSOVE44N TANK BALL VALVE FPOR O-RING Installation & Operation Manual Copyright © Puretec Ltd 2023... -
Page 9: Battery Installation
Battery Installation Fig. 2 - Battery Installation / LED Reminder Light Important note: Battery must be replaced when changing cartridges. 1. Remove the black battery seat from the faucet lever handle (see Figure 3). 2. Install battery into the battery seat, positive side up, discard plastic insert. -
Page 10: Quick Connect Fittings
DISCONNECTION PROCEDURE 5. Turn the quick connect nut on the SmartTee™ 6. Push the collet against the quick connect nut and slide anticlockwise to release the collet. tube out of fitting. 10 Installation & Operation Manual Copyright © Puretec Ltd 2023... -
Page 11: Cartridge Changeout
Quick Connect Fittings Fig. 4 - How To Use Quick Connect Fittings Cut the tube square and push in to Fitting grips before it seals. Ensure the tube stop. For metal tube remove tube is pushed in to tube stop. burrs and chamfer tube end to prevent O-Ring seal being damaged. -
Page 12: Use Guidelines
Substance Reduction Class Pass Comment Particular Reduction 75% or more Taste, Odour, Chlorine Reduction 75% or more Cryptosporidium & Giardia Cyst Removal 99.9% or more 12 Installation & Operation Manual Copyright © Puretec Ltd 2023... -
Page 13: Warranty
Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the name you can trust for viable and proven water solutions. The complete range of Puretec products are developed, refined, made to meet and exceed stringent specifications for the worldwide market. - Page 14 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
- Page 15 Reverse Osmosis Undersink Water Filter Systems...
- Page 16 MAY2023...
