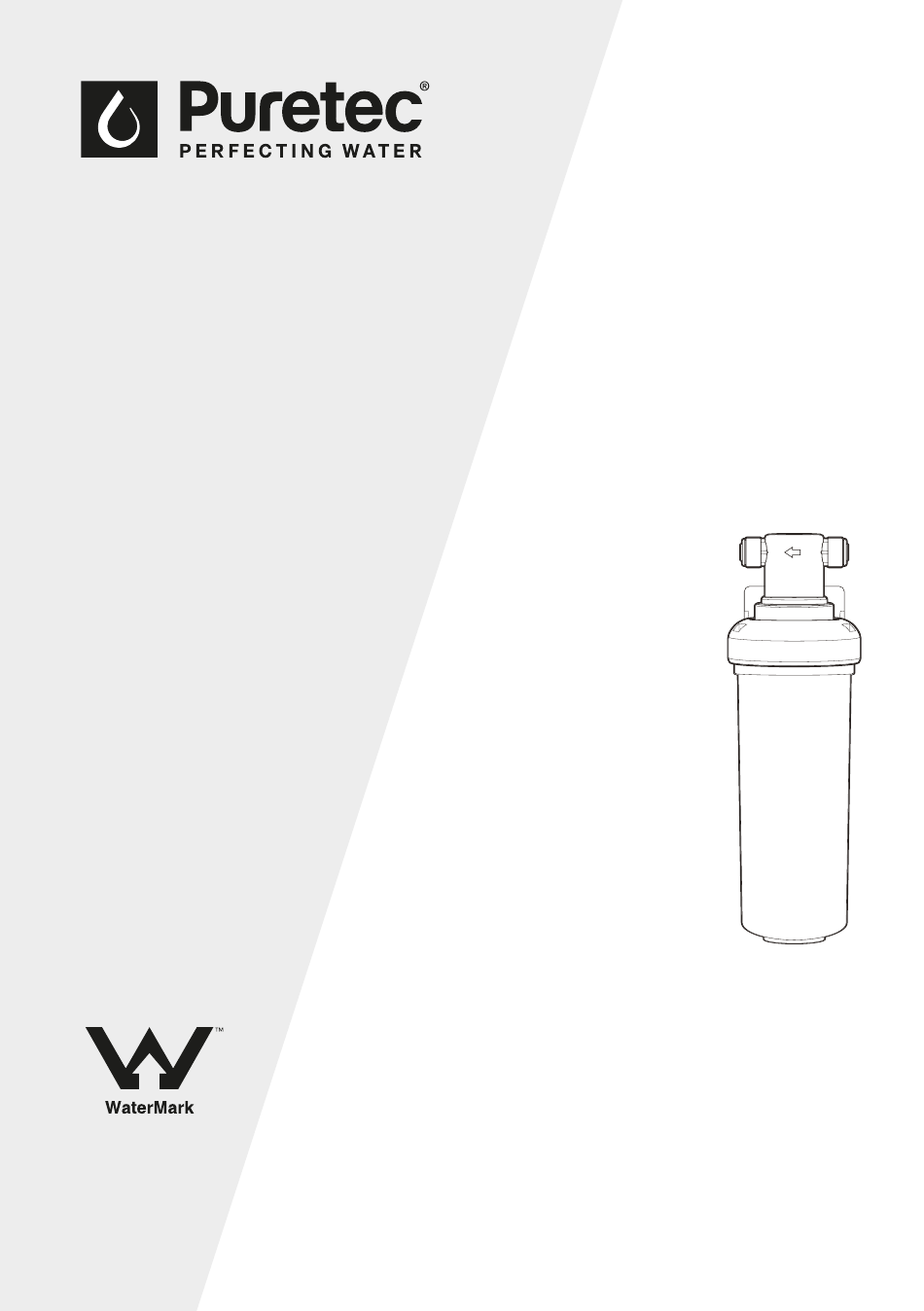

- Page 1 User Guide PureMix Z2 AS/NZS 3497 Licence No. WM 74617 Australian Certification Compact High Flow Inline Water Filter System Services For correct operation & installation, it is essential to observe these instructions. NOV2021...
-
Page 2: Table Of Contents
Flush systems for 10 minutes after any period of non-use more than 2 days. The PureMix Z2 Inline Water Filter System is designed to operate with mains, rain, harsh and rural water. -
Page 3: Cartridge Replacement
To maintain the high quality of the purified water the cartridges need changing every 6 - 12 months, dependent on water quality and usage. You can obtain replacement cartridges from your local Puretec dealer. To maintain performance standards and warranty, use only genuine Puretec replacements. - Page 4 / Multivalve Z6-R / Z7-R 3/8" High Pressure Cartridge Tubing COLD Minimum 70 mm clearance for cartridge changes. Note: Allow extra free space around the system to avoid accidental impact. Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
- Page 5 Horizontal Installation Diagram Figure 2 - Horizontal Installation Diagram Also includes Extending Kit Pressure Limiting Valve / Multivalve 3/8" High Pressure Tubing Also includes Extending Ki Stem Adaptor Head Assembly Minimum 70 mm clearance for cartridge Braided Hose changes. Z6-R / Z7-R Cartridge Stem Adaptor COLD...
-
Page 6: Installation Procedure
10. Run the system for at least 10 minutes (turn on mixer tap to run cold water) to remove carbon fines. Water may appear milky, but this is normal and is only tiny air bubbles that will clear after a short period. Installation & Operation Manual Copyright © Puretec Pty Ltd 2021... -
Page 7: Use Guidelines
Quick Connect Fittings Figure 3 - How To Use Quick Connect Fittings Fitting grips before it seals. Ensure Cut the tube square and push in to the tube stop. For metal tube remove tube is pushed in to tube stop. burrs and chamfer tube end to prevent O-Ring seal being damaged. - Page 8 Cartridge NOT in the correct position. Cartridge is in the lock position and will not rotate any further. Arrows on the side of the cartridge are aligned. Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 9: Cartridge Changeout
2. Remove all packaging from the new cartridge, including any wraps or caps (if applicable). Replacement cartridge code for Z2 model: Puretec Z2-R. 3. Rotate the old cartridge counterclockwise 1/4 turn, pull it out and dispose of it. 4. Insert the new cartridge into the filter head and rotate clockwise 1/4 turn until the arrows on the head and cartridge align. -
Page 10: Warranty
10 year warranty is 1 year parts and labour plus 9 years parts only. Excludes cartridges. Puretec is renowned for its quality and after-sales support so if you have any issues please call 1300 140 140 (AU) or 0800 130 140 (NZ). To make a warranty claim, contact us directly or the place of original purchase. - Page 11 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
