4
RECEIVE AND TRANSMIT

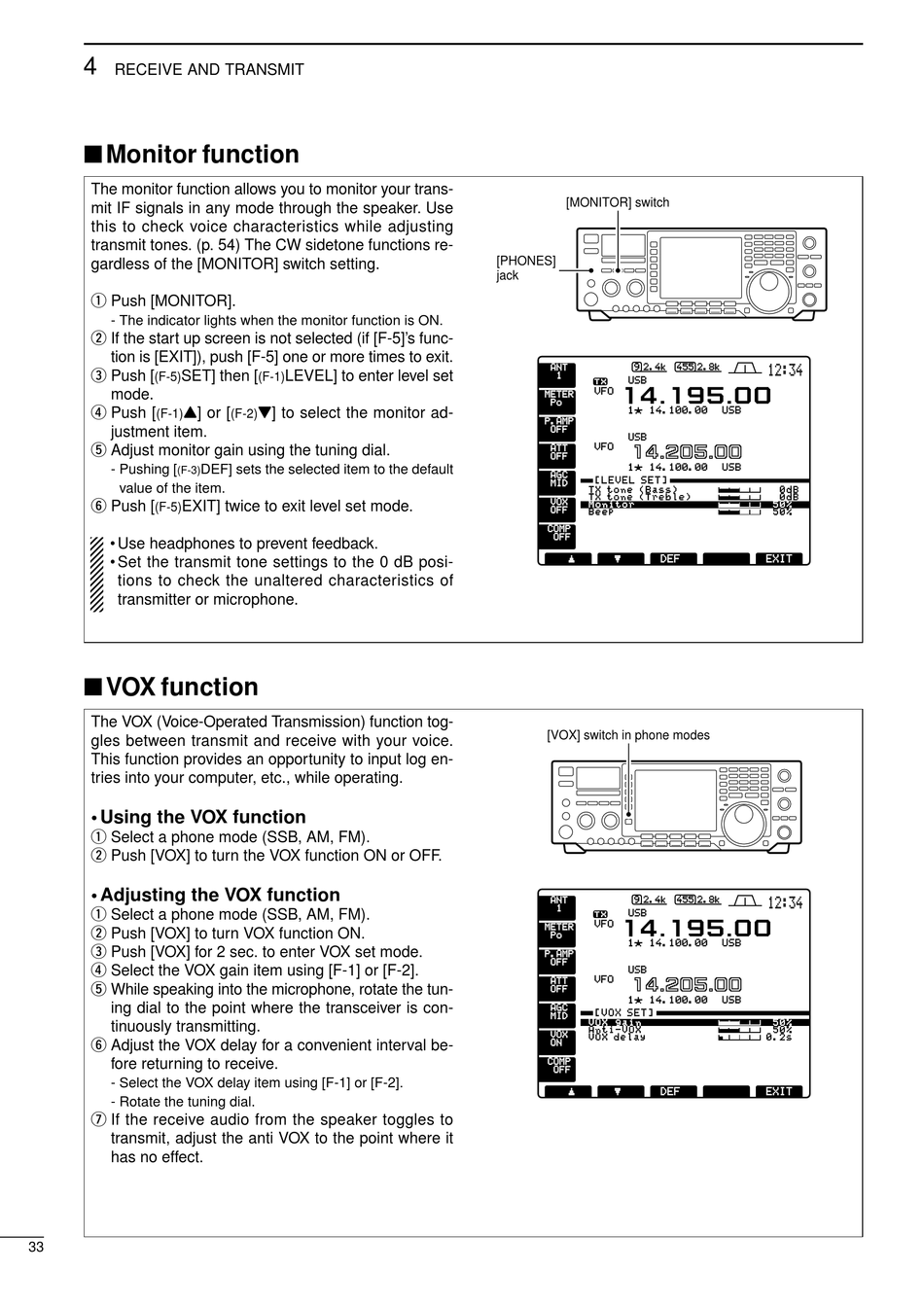

Monitor function

The monitor function allows you to monitor your trans-
mit IF signals in any mode through the speaker. Use
this to check voice characteristics while adjusting
transmit tones. (p. 54) The CW sidetone functions re-
gardless of the [MONITOR] switch setting.
q Push [MONITOR].
- The indicator lights when the monitor function is ON.
w If the start up screen is not selected (if [F-5]'s func-
tion is [EXIT]), push [F-5] one or more times to exit.
e Push [
SET] then [
(F-5)
mode.
r Push [
Y] or [
(F-1)
justment item.
t Adjust monitor gain using the tuning dial.
- Pushing [ DEF] sets the selected item to the default
(F-3)
value of the item.
y Push [
EXIT] twice to exit level set mode.
(F-5)
• Use headphones to prevent feedback.
• Set the transmit tone settings to the 0 dB posi-
tions to check the unaltered characteristics of
transmitter or microphone.

VOX function

The VOX (Voice-Operated Transmission) function tog-
gles between transmit and receive with your voice.
This function provides an opportunity to input log en-
tries into your computer, etc., while operating.
• Using the VOX function
q Select a phone mode (SSB, AM, FM).
w Push [VOX] to turn the VOX function ON or OFF.
• Adjusting the VOX function
q Select a phone mode (SSB, AM, FM).
w Push [VOX] to turn VOX function ON.
e Push [VOX] for 2 sec. to enter VOX set mode.
r Select the VOX gain item using [F-1] or [F-2].
t While speaking into the microphone, rotate the tun-
ing dial to the point where the transceiver is con-
tinuously transmitting.
y Adjust the VOX delay for a convenient interval be-
fore returning to receive.
- Select the VOX delay item using [F-1] or [F-2].
- Rotate the tuning dial.
u If the receive audio from the speaker toggles to
transmit, adjust the anti VOX to the point where it
has no effect.
33
LEVEL] to enter level set
(F-1)
Z] to select the monitor ad-
(F-2)
[MONITOR] switch
[PHONES]
jack
14.195.00
14.205.00 14.205.00
[VOX] switch in phone modes
14.195.00
14.205.00 14.205.00
