Icom IC-756 Instruction Manual page 8

1

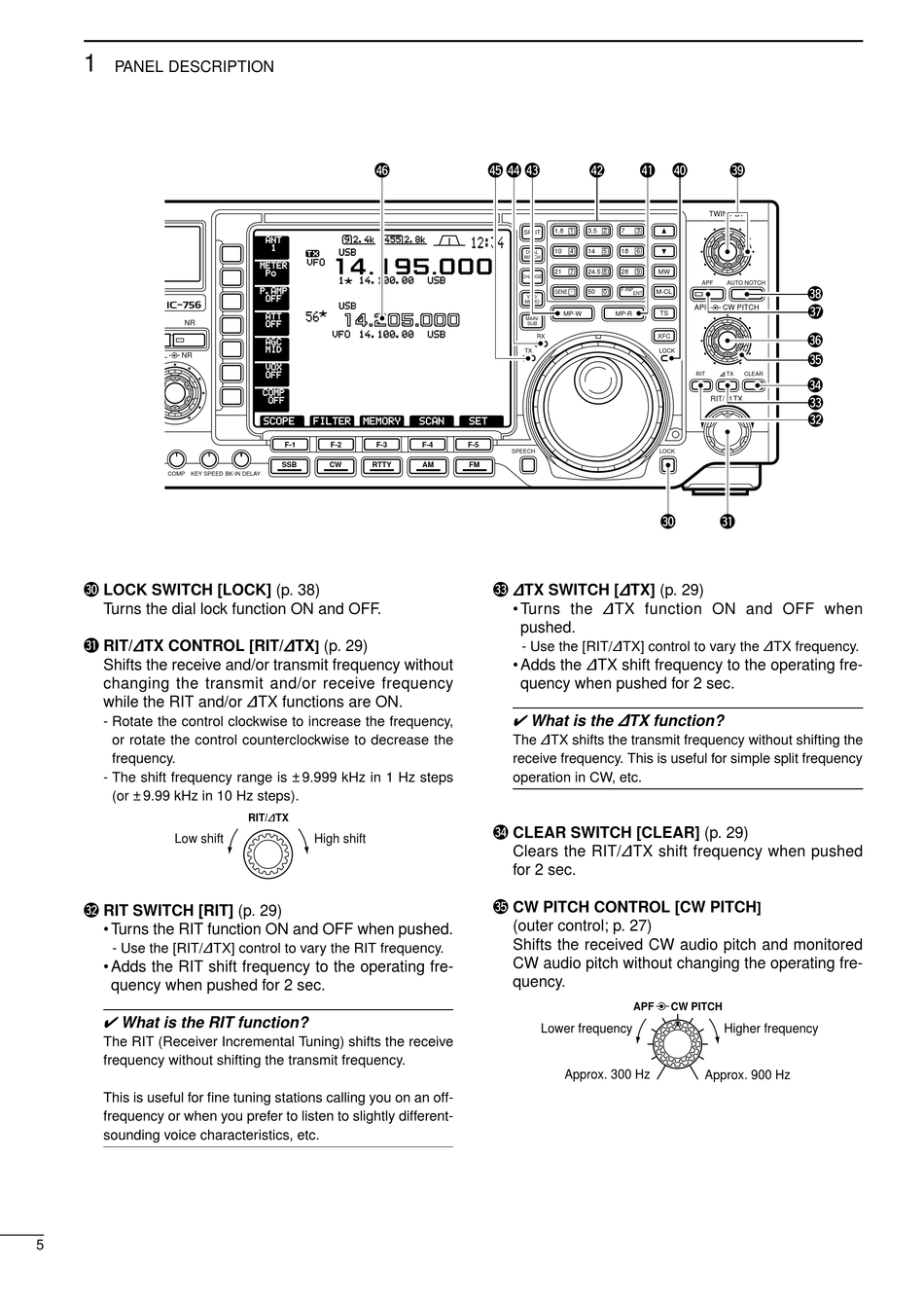

PANEL DESCRIPTION
i756
NB NR
BAL NR
COMP KEY SPEED BK-IN DELAY
#0 LOCK SWITCH [LOCK] (p. 38)
Turns the dial lock function ON and OFF.
#1 RIT/∂ ∂ TX CONTROL [RIT/∂ ∂ TX
Shifts the receive and/or transmit frequency without
changing the transmit and/or receive frequency
while the RIT and/or ∂TX functions are ON.
- Rotate the control clockwise to increase the frequency,
or rotate the control counterclockwise to decrease the
frequency.
- The shift frequency range is ± 9.999 kHz in 1 Hz steps
(or ± 9.99 kHz in 10 Hz steps).
Low shift
#2 RIT SWITCH [RIT] (p. 29)
• Turns the RIT function ON and OFF when pushed.
- Use the [RIT/∂TX] control to vary the RIT frequency.
• Adds the RIT shift frequency to the operating fre-
quency when pushed for 2 sec.
What is the RIT function?
The RIT (Receiver Incremental Tuning) shifts the receive
frequency without shifting the transmit frequency.
This is useful for fine tuning stations calling you on an off-
frequency or when you prefer to listen to slightly different-
sounding voice characteristics, etc.
5
$ 6
14.195.000
14.205.000 14.205.000
F-1 F-2 F-3 F-4
SSB CW RTTY AM
(p. 29)
]
RIT/∂TX
High shift
$ 5 $ 4 $ 3 $ 2 $ 1
1.8 1 3.5 2 7 3
SPLIT
10 4 14 5 18 6
DUAL
WATCH
21 7 24.5 8 28 9
CHANGE
F-INP
・ 50 0
GENE
ENT
VFO/
MEMO
MP-W MP-R
MAIN/
SUB
RX
TX
F-5
SPEECH
FM
#3 ∂ ∂ TX SWITCH [∂ ∂ TX] (p. 29)
• Turns the ∂TX function ON and OFF when
pushed.
- Use the [RIT/∂TX] control to vary the ∂TX frequency.
• Adds the ∂TX shift frequency to the operating fre-
quency when pushed for 2 sec.
What is the ∂ ∂ TX function?
The ∂TX shifts the transmit frequency without shifting the
receive frequency. This is useful for simple split frequency
operation in CW, etc.
#4 CLEAR SWITCH [CLEAR] (p. 29)
Clears the RIT/∂TX shift frequency when pushed
for 2 sec.
#5 CW PITCH CONTROL [CW PITCH
(outer control; p. 27)
Shifts the received CW audio pitch and monitored
CW audio pitch without changing the operating fre-
quency.
APF
Lower frequency
Approx. 300 Hz
$ 0 # 9
TWIN PBT
▲
▼
MW
APF AUTO NOTCH
# 8
M-CL
# 7
APF CW PITCH
TS
# 6
XFC
LOCK
# 5
RIT TX CLEAR
# 4
# 3
RIT/ TX
# 2
LOCK
# 0 # 1
]
CW PITCH
Higher frequency
Approx. 900 Hz
