HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI 224

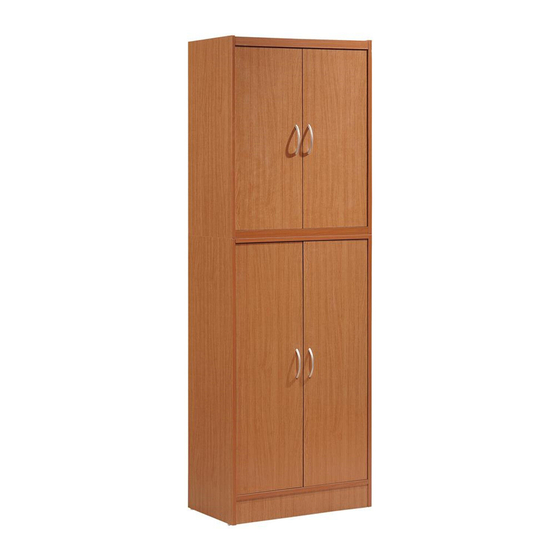

4 DOOR PANTRY
FRONT VIEW
Product Dimensions : Height 71.5'' x Width 14.5' x Depth 24''
www.Hodedah.com
2 people
70 mins
1 YR LTD
1 Box
REAR VIEW
1 | Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI 224
Summary of Contents for Hodedah HI 224

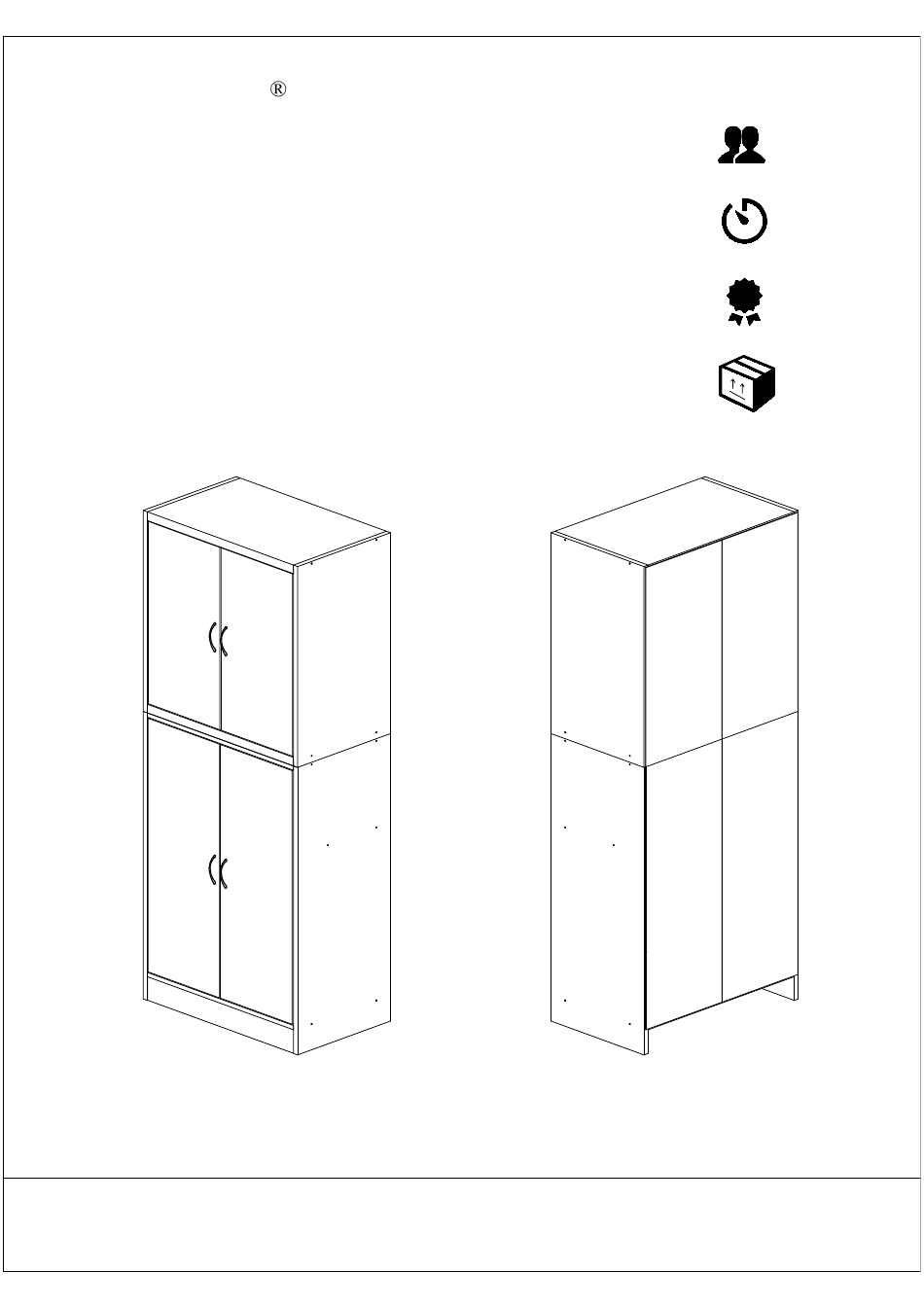

- Page 1 HODEDAH Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 70 mins ITEM # HI 224 1 YR LTD 4 DOOR PANTRY 1 Box FRONT VIEW REAR VIEW Product Dimensions : Height 71.5'' x Width 14.5' x Depth 24'' 1 | Page www.Hodedah.com...
-
Page 2: Warranty
WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH Hardware List Shelf Support M8X25MM M3.5X16MM M4X38MM Minifix Cap M6X40MM 3.5kg Metal Piece Magnet (1 Hole) M3X12MM MT Stopper M4X22MM Handle 205-96 Allen Key Nail 5/8 Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. -
Page 5: Parts List
HODEDAH Parts List 578x368x30mm 368x747x15mm 368x747x15mm 1069x368x15mm 1069x368x15mm 578x368x30mm 578x292x15mm 578x292x15mm 578x368x15mm 578x88x15mm 578x80x15mm 578x80x15mm 744x301x2.5mm 978x301x2.5mm 283x675x15mm 283x675x15mm 283x941x15mm 283x941x15mm 5 | Page www.Hodedah.com... - Page 6 HODEDAH The Breakdown... 6 | Page www.Hodedah.com...
- Page 7 HODEDAH Step 1 WOOD DOWEL M8X25MM SHELF SUPPORT RIGHT VIEW RIGHT VIEW LEFT VIEW LEFT VIEW 1. Insert 24 x wood dowel (A) into panel (1,6,7,9,10,11 & 12). 2. Insert 8 x shelf support (B) into panel (2,3,4 & 5).
-
Page 8: Rear View
HODEDAH Step 2 3.5KG MAGNET (1 HOLE) METAL PIECE CB SCREW M3X12MM REAR VIEW BOTTOM VIEW BOTTOM VIEW 1. Fix 4 x metal piece (F2) to panel (15,16,17 & 18) back with 4 x cb screws M3x12mm (F3). 2. Insert 4 x magnet (F1) into panel (1 & 12) bottom view. - Page 9 HODEDAH Step 3 PVC HANDLE 205-96 P/H SCREW M4X22MM 1. Fix 4 x pvc handle (H1) to panel (15,16,17 & 18) front with 8 x P/H screws M4x22mm (H2). 9 | Page www.Hodedah.com...
- Page 10 HODEDAH Step 4 ALLEN KEY CSK CAP WOOD M6X40MM MINIFIX CAP 1. Connect panel (2 & 3) to panel (1 & 6) by using 8 x csk M6x40mm (E1) with allen key (I). After that, insert 8 x cap (E2).
- Page 11 HODEDAH Step 5 ALLEN KEY CSK CAP WOOD M6X40MM MINIFIX CAP 1. Connect panel (4 & 5) to panel (7,9,10,11 & 12) by using 12 x csk M6x40mm (E1) with allen key (I). After that, insert 12 x cap (E2).
- Page 12 HODEDAH Step 6 CB SCREW M4X38MM 1. Connect panel (11 & 12) to panel (6) by using 6 x cb screw M4x38mm (D) with screwdriver. 12 | Page www.Hodedah.com...
- Page 13 HODEDAH Step 7 NAIL 5/8 1. Attach panel 2 x (13) to panel (2 & 3) rear view. Then use 14 x nails (J) for fix it with hammer. 2. Attach panel 2 x (14) to panel (4 & 5) rear view. Then use 16 x nails (J) for fix it with hammer.
- Page 14 HODEDAH Step 8 1. Slide it panel (8) between panel (2 & 3). 2. Slide it panel (8) between panel (4 & 5). 14 | Page www.Hodedah.com...
- Page 15 HODEDAH Step 9 CB SCREW M3.5X16MM MT STOPPER SLOT IN DOOR PANEL 1. Insert 2 x mt stopper (G) into the holes at panel (1) bottom view. 2. Insert 2 x mt stopper (G) into the holes at panel (6) top view.
- Page 16 HODEDAH Step 10 Final step... CB SCREW M3.5X16MM MT STOPPER SLOT IN DOOR PANEL 1. Insert 2 x mt stopper (G) into the holes at panel (12) bottom view. 2. Insert 2 x mt stopper (G) into the holes at panel (9) top view.
- Page 17 HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! 17 | Page www.Hodedah.com...
- Page 18 Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture.
- Page 19 HODEDAH FITTING OF ANTI-TIP SAFETY STRAP STEP 1: Attach the mounting bracket to the furniture in the solid part below the top panel a few inches away from the side of the unit. Screw through the smallest hole of STEP 2:...
